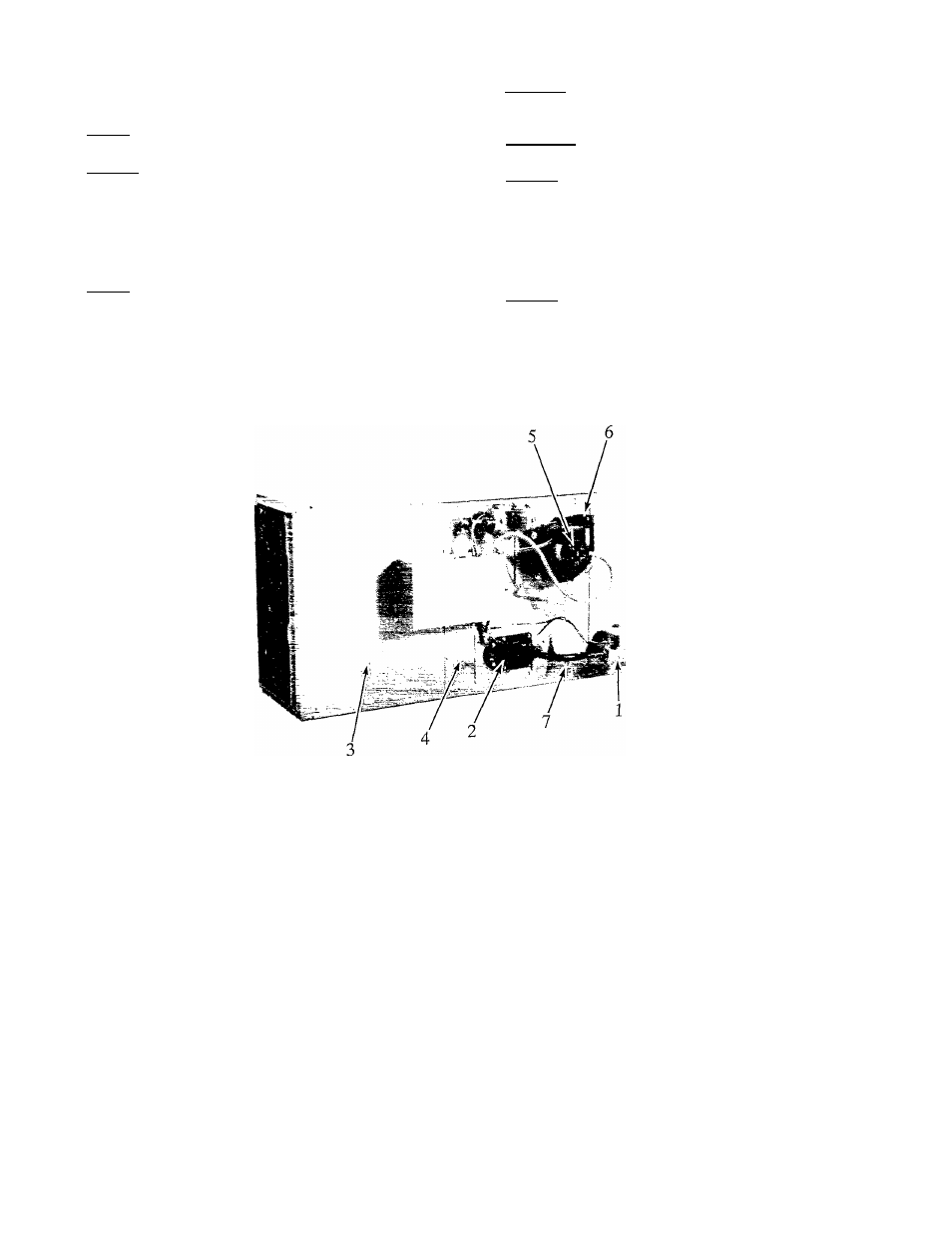

HORIZONTAL FURNACE COMPONENTS

I

1 I Gas valve. Safe, efficient. Features two separate

gas shut-off valves.

I

2

I

Burner assembly (inside). Operates with hot

surface ignitor, inshot burners, and flame sensor

for safe, dependable heating.

Primary serpentine heat exchanger (inside).

Stretches fuel dollars with the S-shaped heat

flow design. Solid construction of corrosion-

resistant aluminized steel means reliability.

I

4 I Secondary condensing heat exchanger (inside).

Wrings out more heat through condensation.

Constructed with corrosion-resistant steel to

ensure durability.

I

5

I

Inducer motor. Pulls hot flue gases through the

heat exchangers, maintaining negative pressure

for added safety.

I 6 I

Vent outlet. Uses PVC pipe to carry vent gases

from the home.

I

7

I

Condensate drain trap. Collects moisture

condensed from burned gases for disposal into

home drain system.

m

I

9

I

Air filter, and wire filter retainer (inside).

Heavy-duty blower (inside). Circulates air,

scrubbing the heat exchangers to speed

condensation and transfer extra heat into the

home.

A91174

MODEL 349MAV HORIZONTAL FURNACE
