1. Transformer

2« Blower motor

3. Contactor R1

4. Heaters
5. Sequencing relay

6. Contactor R2

7. Cooling fan relay

8. Manual reset limit switch
9. Automatic reset limit switch

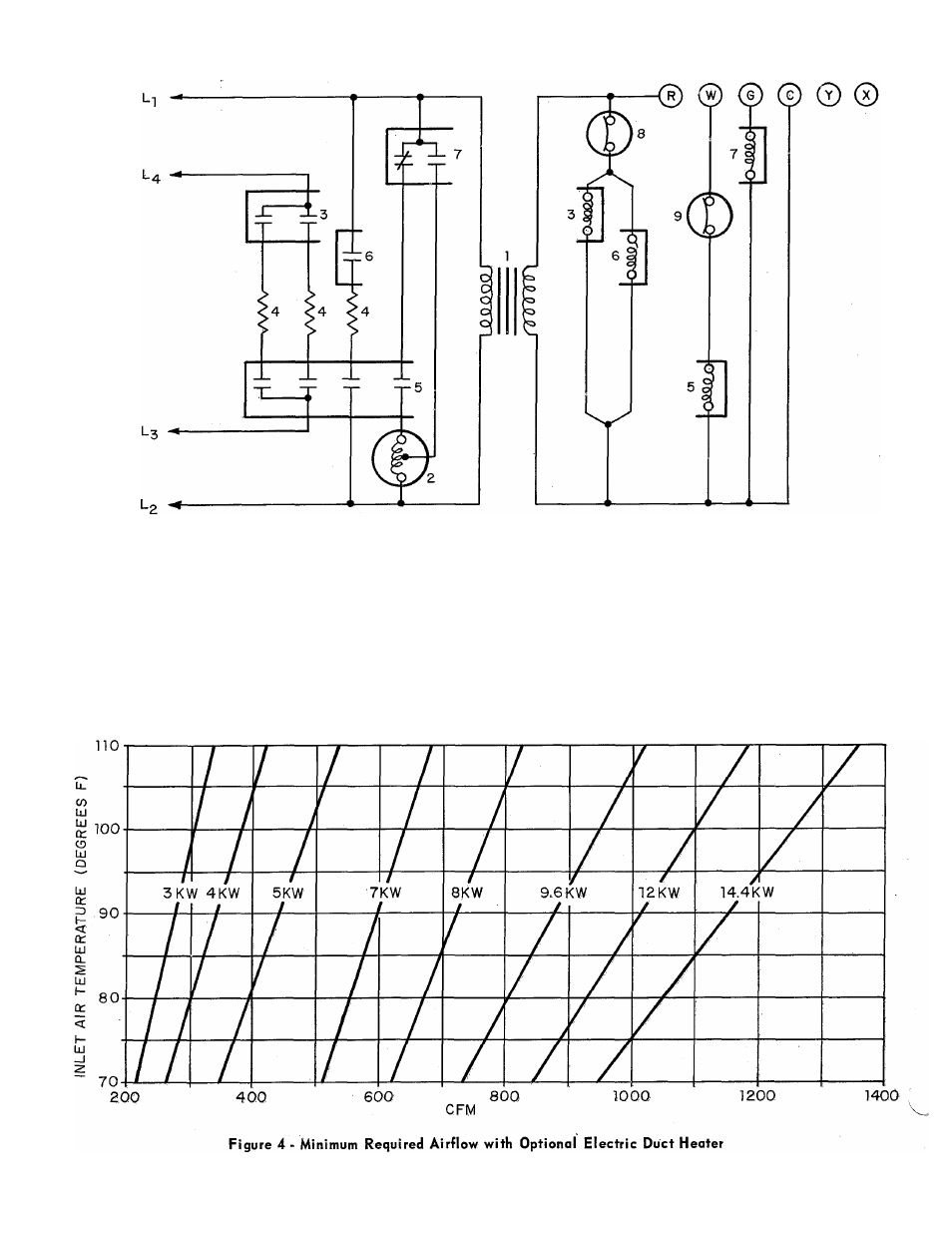

Figure 3 - Wiring Diagram ior 11-, 12-, 13-, 14-, & 14.4-KW Electric Duct Heater

39516D3

- 6 .
