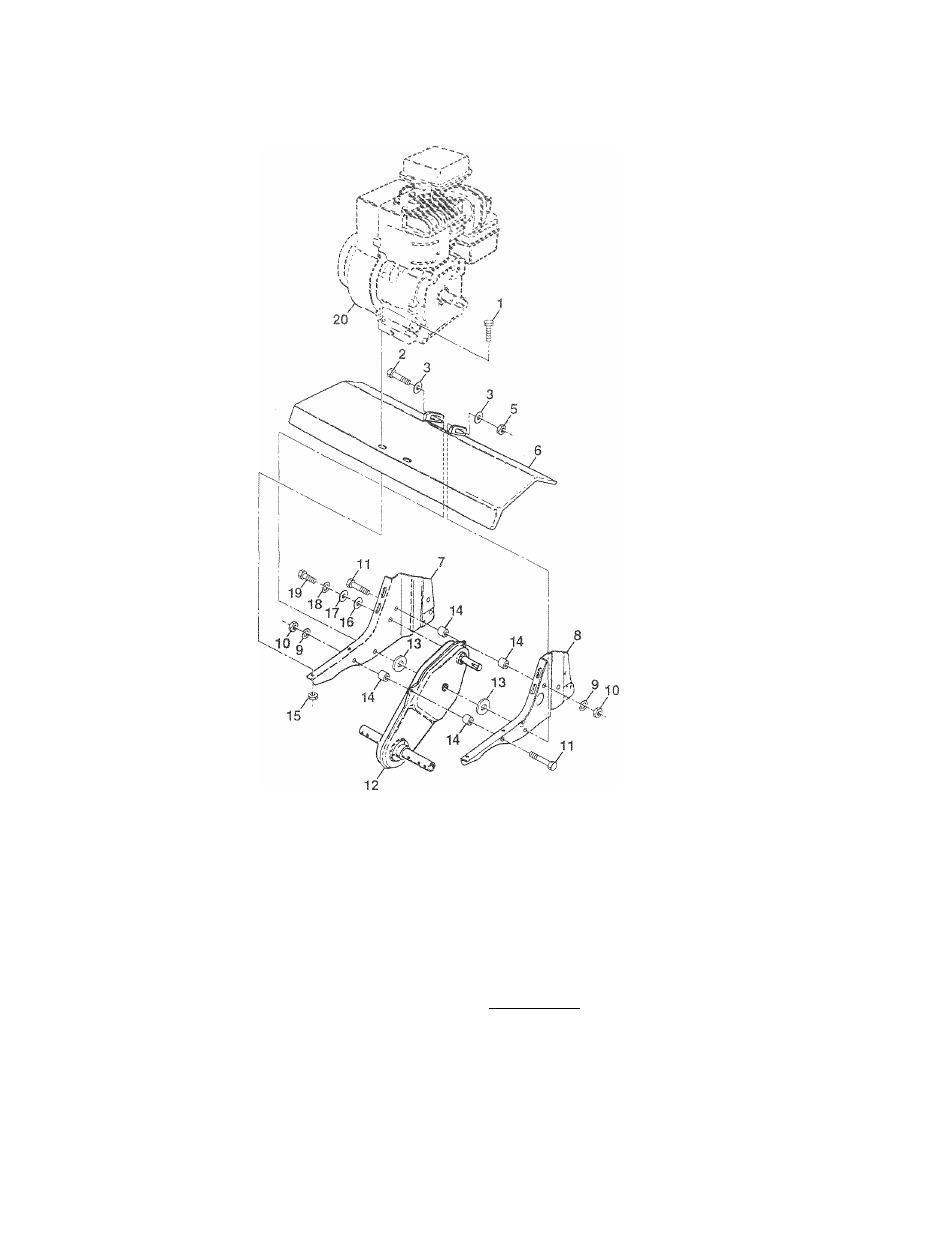

REPAIR PARTS
TILLER ^ - MODEL NUMBFr, ' J4^/L550C
TRANSMISSION
KEY
PART
DESCRIPTION
KEY
PART
DESCRIPTION
NO.
NO.
NO.
NO.
1
74760524
Bolt, Hex 5/16-18
X
1-1/2 Gr. 2
13
19171616
Washer 17/32 x1 x 16 Ga.
2
74780652
Bolt, Hex, Fin 3/8-16 x 3-1/4
14
9173R
Spacer, Split
3
19131311
Washer 13/32 x 13/16 x 11
15
73510500
Nut, Keps 5/16
5
73800600
Locknut, Hex, w/washer 3/8-16
16
19091412
Washer 9/32 x 7/8 x 12 Ga.
6
9057R428
Shield, Tine
17
19092016
Washer 9/32 x 1-1/4 x 16 Ga.
7
1949J
Bracket, Engine, R.H.
18
10040400
Washer, Lock 1/4
8
1948J
Bracket, Engine, L.H.
19
74610412
Bolt, Hex 1 /4-28 x 3/4 Gr. 5
9
10040500
Washer, Lock 5/16
20
Engine, Briggs and Stratton, Model
10
73220500
Nut, Hex 5/16-18
No. 137202
11
74760544
Bolt, Hex 5/16-18
X
2-3/4
12
151222
Transmission
NOTE: All component dimensions given in U.S. inches.
1 inch = 25,4 mm
