TILLER ^ M u U l . tIUJBER CHDF550C

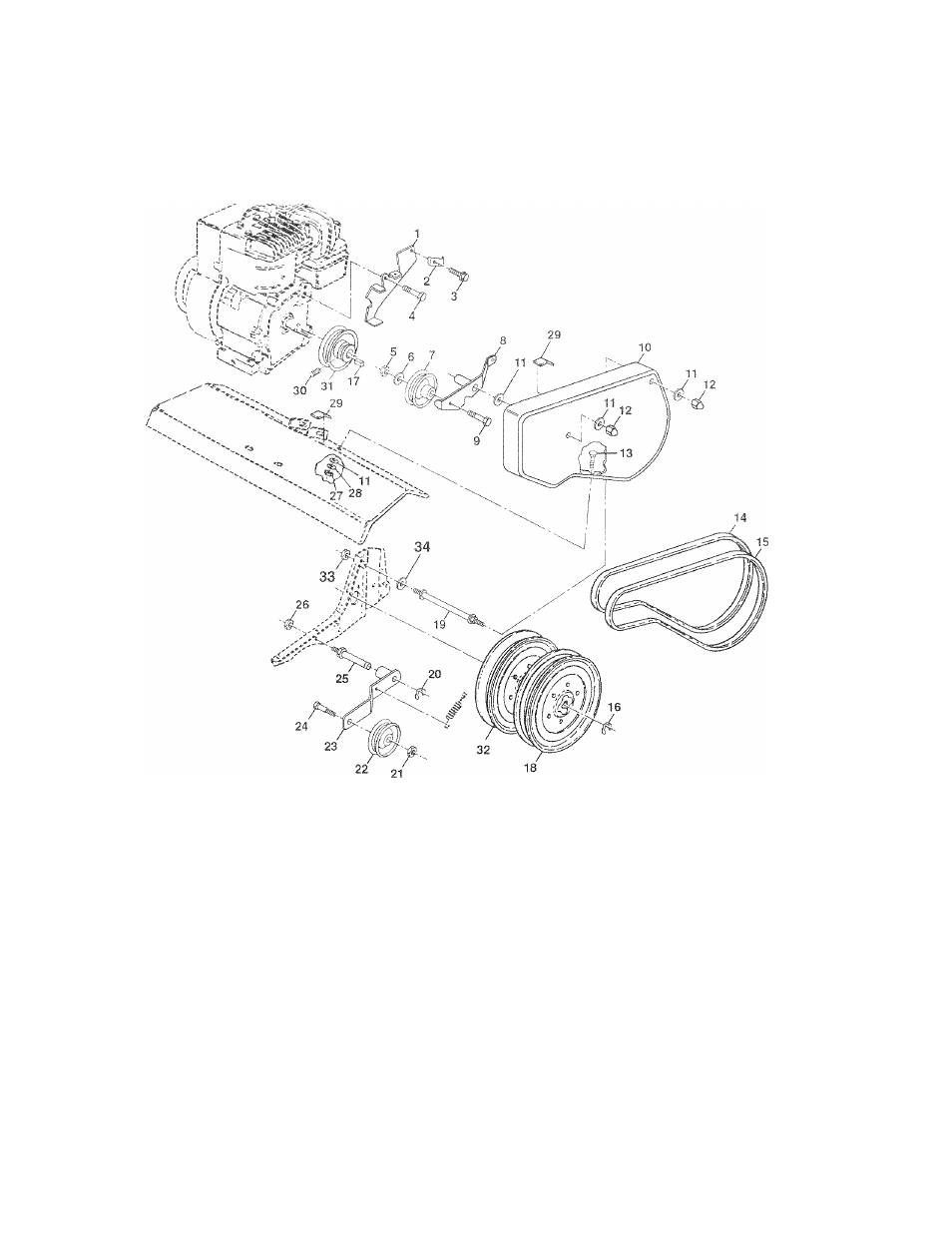

BELT GUARD AND i c ' A iSEMLi
REPAIR PARTS
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO. NO. NO.
1 159268 Assembly, Bracket, Belt Guard 19 110550X Bolt, Belt Guard
2 9484R Clip. Cable 20 12000036 Ring. Klip
3 86777 Screw, Hex, Washer Hd., Slotted, 21 73350600 Nuti Hex, Jam 3/8-16
Thd. Cutting #10-24 x 1/2 Type D 22 161806 Pulley, Idler
4 74610812 Bolt, Hex 1 /2-20 x 3/4 23 162290 Arm. Idler
5 73220600 Nut, Hex 3/8-16 24 74760620 Bolt, Hex 3/8-16 x 1-1/4
6 19131316 Washer 13/32 x 13/16 x 16 Ga, 25 106968X Shaft, Idler Arm
7 2009J Pulley, Idler, Reverse 26 73350500 Nut, Hex, Jam 5/16-18
8 127180X Assembly, Arm, Reverse Idler 27 73220400 Nut, Fin Hex 1/4-20
9 74760628 Bolt, Hex 3/8-16 X 1-3/4 28 10040400 Washer LK Hvy Helical 1/4
1 0 156705X428 Guard, Beit 29 109227X Pad, Idler
11 19091016 Washer 9/32 x 5/8 x 16 Ga. 30 23200404 Screw, Set, Socket, Headless
12 104213X Nut, Cap 1/4- 20 C.P. 1/4-20 X 1 /4
13 72140405 Bolt, Carriage 1/4-20 x 5/8 31 101189L Sheave, Engine
14 133035 V-Belt (Forward Motion) 32 151223 Pulley, V-Groove, Trans.
15 2614J V-Belt (Reverse) 33 73510400 Nut Keps Hex 1/4-20
16 12000028 Ring, Retainer 34 19091416 Washer 9/32 x 7/8 x 16 Ga.
17
18 2649M
151236
Key, Square
Pulley, Flat, Trans.
NOTE; Ail component dimensions given in U.S. in
1 inch = 25.4 mm
