SERVICE AND ADJUSTMENTS
' V I r |i I i[|f
rtif 1
1
W r J ^ s • I
••if-lts forwcird ( i l l
>■ K I'i ’»■H I L,si [' '■ T(
REMOVE BELT GUARD
K V i
/ed edge
nc It Vf t
r V F%{ Tt U -r.-*21)
lu I I, , ii , , r i( ( ,n id ,)t)i j ur if
There are two (2) V-
jufside).
'sd to service belts. See “TO
in this section of manual.

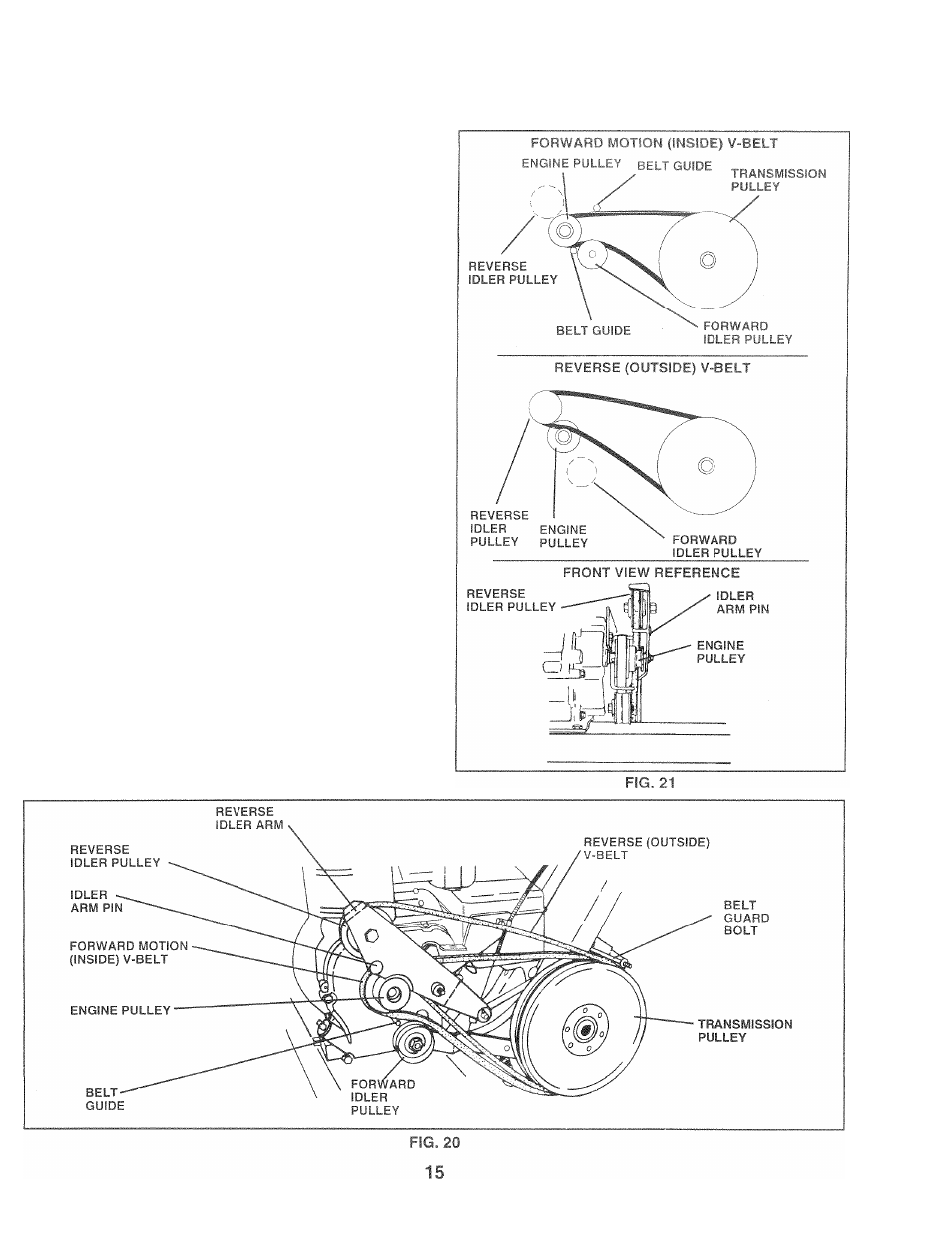

NOTE: Observe carefully routing of both belts and location
of ail belt guides before removing belts.
BELT REMOVAL
• Remove reverse idler pulley from idler arm.
• Remove reverse (outside) V-belt.
• Remove forward (inside) V-belt from transmission pul­
ley first and then from engine pulley.
BELT REPLACEMENT
• Install new forward (inside) V-belt to engine pulley first
then to transmission pulley. Be sure belt is positioned
on inside groove of both pulleys, inside ail belt guides
and rests on idler pulley.
• Before installing reverse (outside) V-belt, turn belt
“inside out”. Twist so wide, flat surface of belt is to
inside.
• Wrap V-belt around reverse idler pulley and reas­
semble idler to idler arm. Tighten securely. Be sure
belt is between reverse idler pulley and idler arm pin.
• Install belt to outside groove of transmission pulley. Be
sure belt is inside all belt guides and rests on outside
groove of engine pulley.
CHECK TINE OPERATION
•
See “TINE OPERATION CHECK” in this section of
manual.
REPLACE BELT GUARD
