Place the chute deflector in position on the left
hand side of shredder.
Secure with four hex screws (D), lock washers (E)
and hex center lock nuts (F). Heads of screws
are assembled from the inside. Nuts and washers
go on the outside. Start all four screws, nuts and
washers by hand, then tighten with an adjustable
wrench and 7/16" wrench. See figure 3.

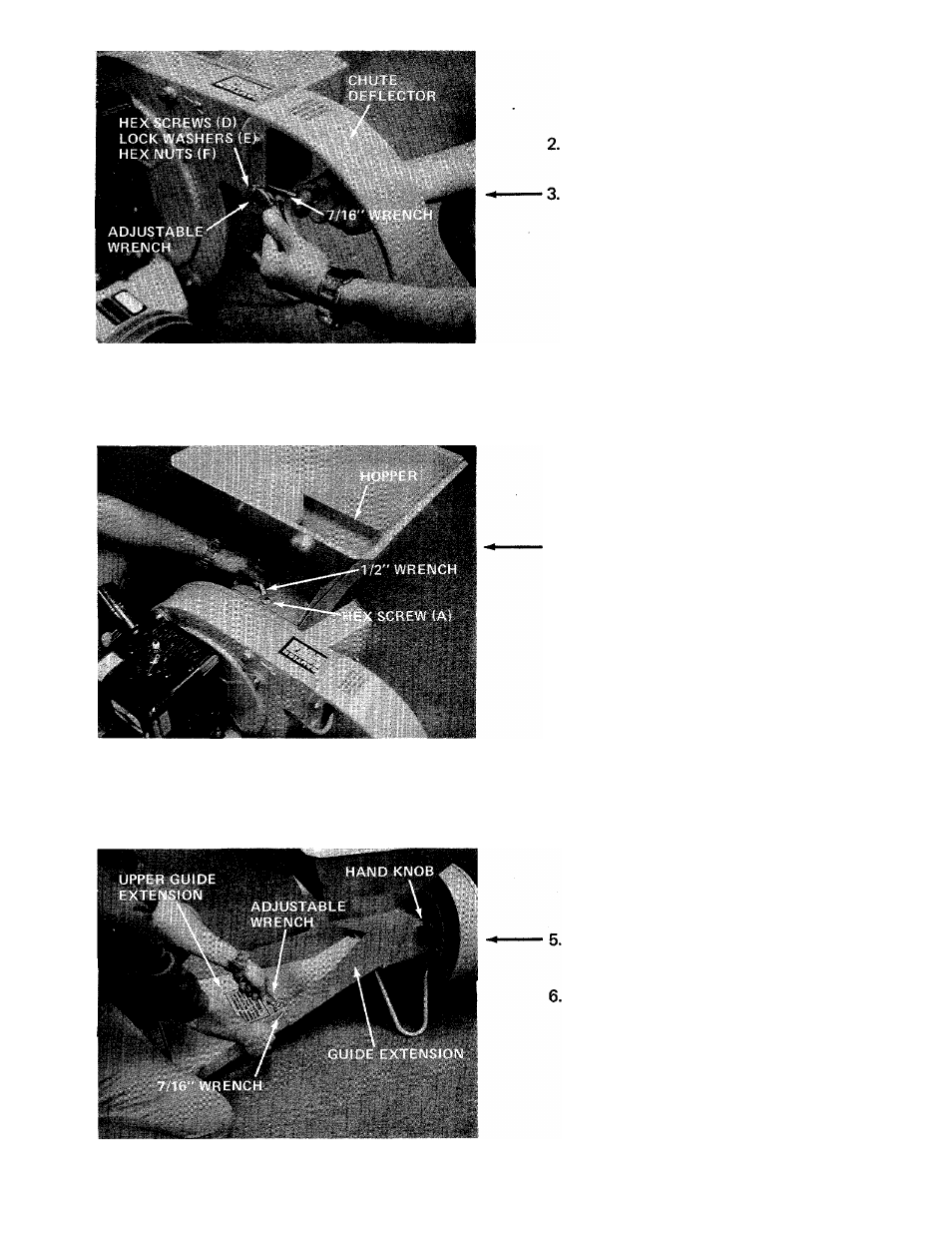

FIGURES
4.
Place the hopper on the shredder. Start all three
self-tapping screws (A) by hand, then tighten
with a 1/2" wrench. See figure 4.
FIGURE 4
Loosen the hand knob on the right hand side of
the shredder. See figure 5.
Place upper guide extension in place on guide
extension. Secure with four hex screws (B) and
hex center lock nuts (C). A 7/16" wrench and
adjustable wrench are required. See figure 5.
FIGURE 5
