NOTE
The right and left side of your shred
der is determined from operator's
position.
ASSEMBLY
INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
1. (1) 7/16" Open End or Box Wrench
2. (1)1 /2" Open End or Box Wrench
3. (1) Adjustable Wrench
Remove the shredder, hardware pack and all parts
and literature from the carton before discarding
carton.

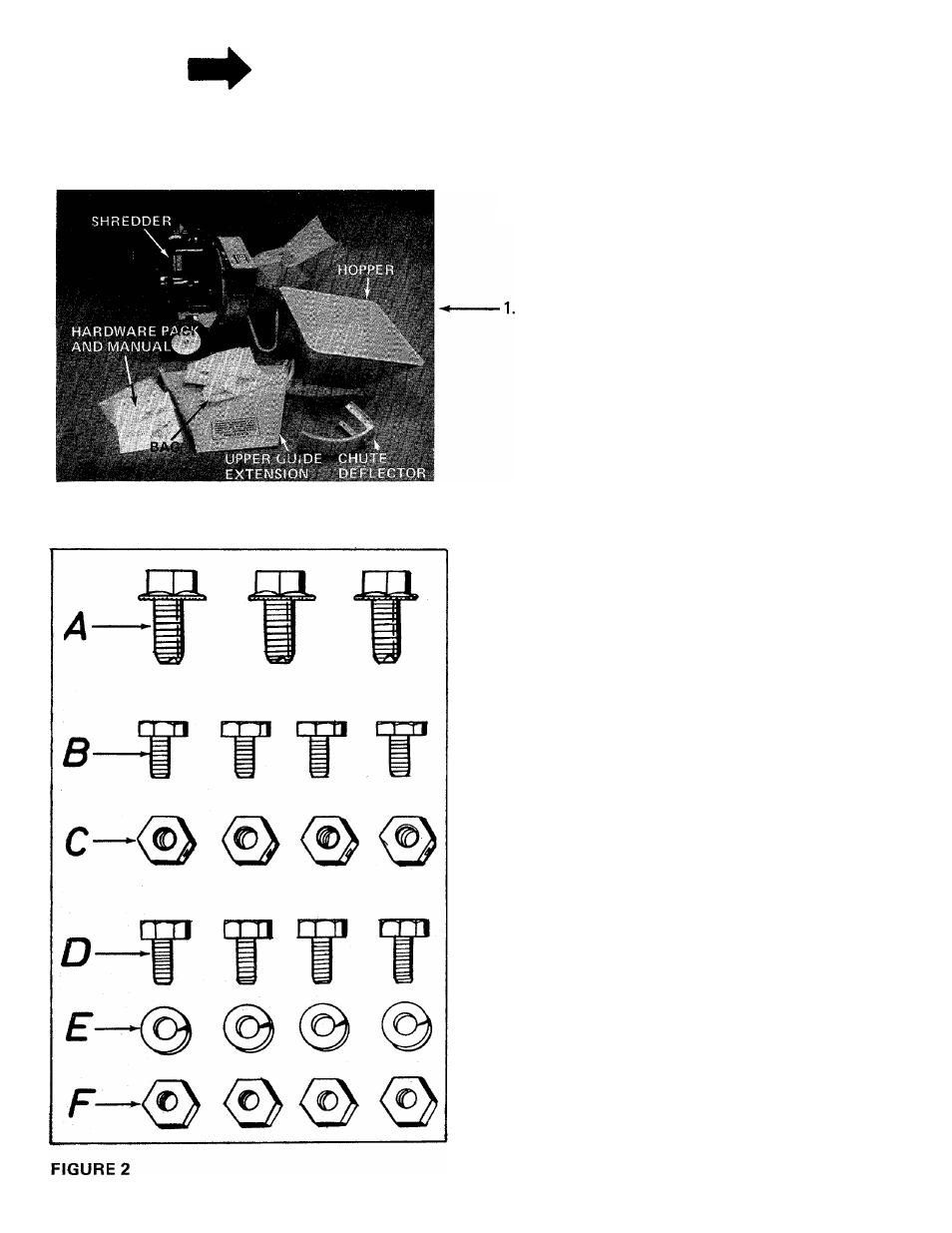

FIGURE 1
■CONTENTS OF HARDWARE PACK
A (3) Hex washer head self-tapping screws
B (4) Hex screws 1/4-20 x 1/2" long
C (4) Hex center lock nuts 1/4-20 thread
D (4) Hex screws 1/4-20 x 1/2" long
E (4) Lock washers 1/4" screw
F (4) Hex center lock nuts 1/4-20 thread
