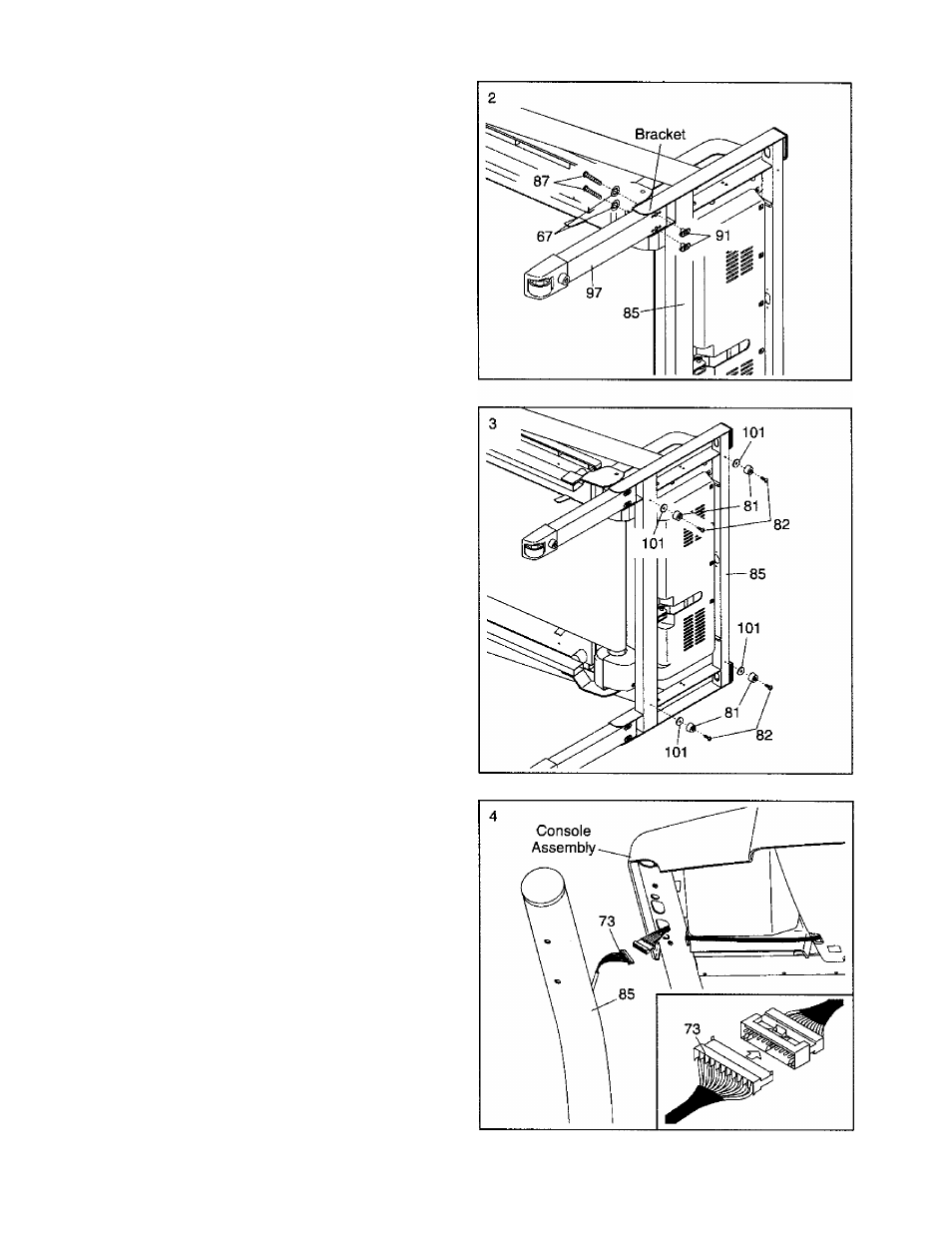

2. Insert the other Extension Leg (97) into the indi­
cated bracket on the base of the Uprights (85) as
shown.
Attach the Extension Leg (97) with two Extension
Leg Boits (87), two Star Washers (67), and two
Extension Leg Nuts (91) as shown.
Firmly
tighten the Extension Leg Bolts.
3. Attach the four Base Pads (81) to the base of the
Uprights (85) in the indicated locations with four
1" Тек Screws (82) and four Plastic Washers
(101). Note: One replacement Base Pad may be
included. Use the Base Pad to replace any Base
Pad that becomes worn.
With the help of a second person, carefully tip
the treadmili down so that the Base Pads (81}
are resting on the floor and the Uprights (85) are
in the vertical position.
4. Remove the band securing the Upright Wire
Harness (73) to the right Upright (85). Have a
second person hold the console assembly near
the right Upright.
Connect the Upright Wire Harness (73) to the
wires extending from the console assembly.
Make
sure to connect the connectors properly (see
the inset drawing). The connectors should
slide together easily and snap into place. If
the connectors do not slide together easily and
snap into place, turn one connector and try
again.
IF THE CONNECTORS ARE NOT CON­
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Insert the connectors into the right
Upright (85).
