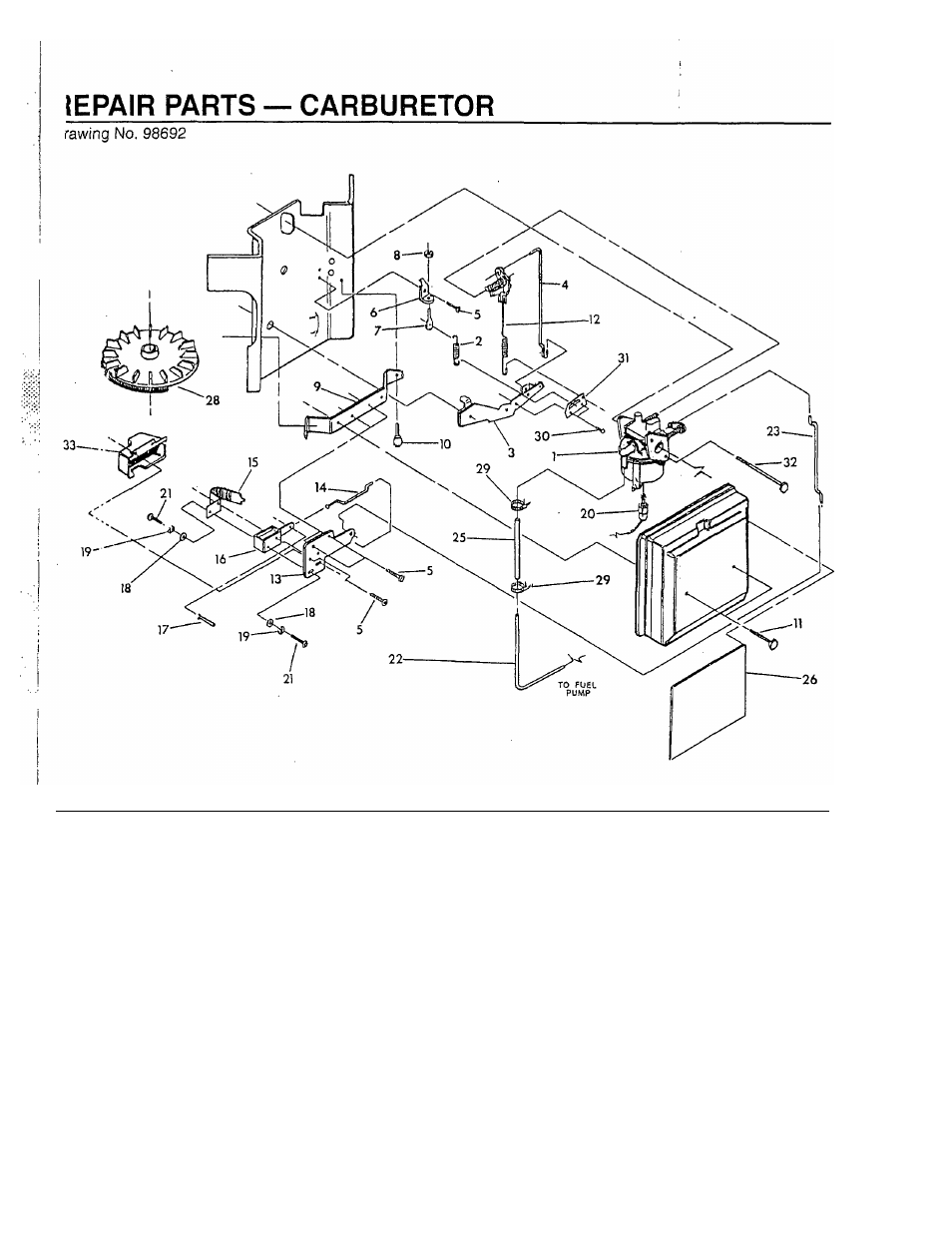

TEM
PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
73112B
1
CARBURETOR ASSEMBLY
18
31879
4
FLATWASHER-NO. 4
2
74962E
1
SPRING, GOVERNOR-(IM5.2)
19
22159
4
LOCKWASHER-NO. 4
74962B
1
SPRING, GOVERNOR-(IM6.6)
20
89870
1
SOLENOID FUEL SHUT-OFF
74962G
1
SPRING, GOVERNOR-(IM7.2)
21
72536
4
SCREW, PAN HD. MACH.
3
70155
1
LEVER, GOVERNOR
NO. 4-40
X
1/4"
4
70108
1
ROD, GOVERNOR TO CARS.
22
87770
1
LINE, FUEL-5/16" ID.
5
56893
5
SCREW (CRIMPTITE)
23
74946
1
LINK, CHOKE
N0.10-24x1/2"
25
47662T
1
HOSE-FUEL, 4.5" LG
6
74961
1
BRACKET, GOV. ADJUSTER
26
81378
1
DECAL, AIR CLEANER-(IM5.2)
7
47227
1
SCREW, GOV. ADJUSTER
81378A
1
DECAL, AIR CLEANER-(IM6.6)
8
37398
1
NUT, HEX LOCK (NYLON)
81378B
1
DECAL, AIR CLEANER-(IM7.2)
9
73131
1
BRCKT., AIR CLNR. SUPPORT
A2603
1
DECAL, AIR CLEANER-(IM7.2 3PH).
10
66476
2
SCREW, HEX-M6-1.00 x 12MM
27
75252
1
KIT, CARBURETOR
11
72310
2
SCREW, HEX-M6-1.00 x 25MM
OVERHAUL-NOT SHOWN
12
70125
1
SPRING, ANTI-LASH
28
73130
1
FLYWHEEL ASSEMBLY
13
73374
1
BRACKET, CHOKE SUPPORT
29
40173
2
CLAMP, HOSE (SCREW TYPE)
14
74947
1
ROD, CHOKE CONTROL
30
66829
2
ALUMINUM RIVET-3MM
15
89473
1
BI-METAL ASSEMBLY, CHOKE
31
75944
1
BRACKET, GOVERNOR SPRING
16
91306
1
SOLENOID, CHOKE
32
70594
2
CAPSCREW, HEX HD.
M6-1.0
X
93 LG, WANASHER
17
77091
1
HAIRPIN, COTTER-.0901
33
77075
1
COVER, CHOKE COIL
