I !

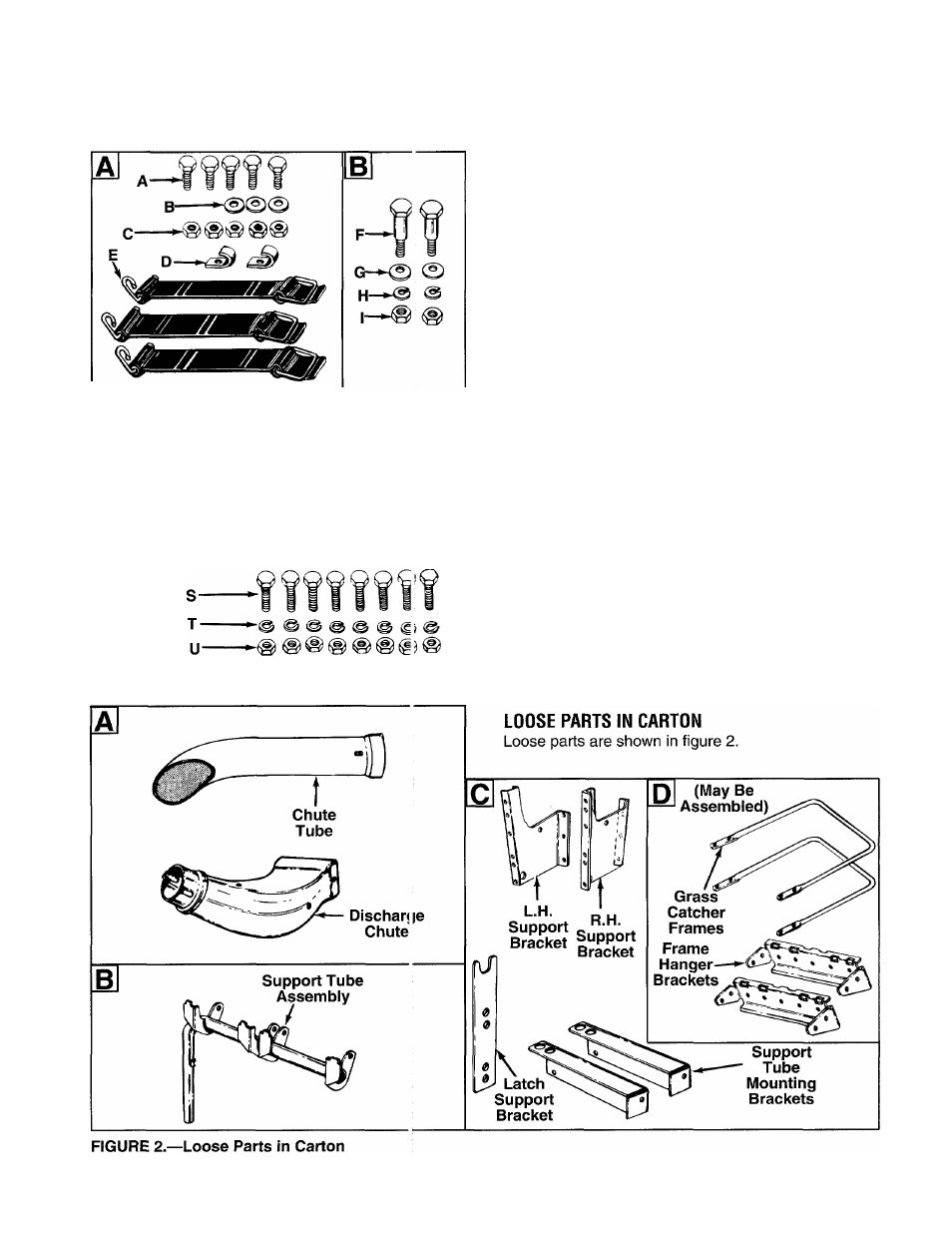

CONTENTS OF HARDWA RE PACK/LOOSE PARTS IN CARTON
L—►©
O' ^ =
0 (May Be Assembled)
°—-If f f l f f f I I
FIGURE 1.—Contents of Hardware Pack
CONTENTS OF HAROWARE PACK
(See figure 1):
(Hardware pack may contain extra items which
are not used on your unit.)
Group A—Discharge Chute Tube Assembly
A (5) Hex Bolts 1/4-20 x 5/8" Long
B (3) Spring Washers 1/4" I.D.
C (5) Hex Lock Nuts 1/4-20 Thread
D (2) Retainer Clips
E (3) Retainer Straps
Group B—Grass Collector Cover Assembly
F (2) Shoulder Bolts 3/8-16 Thread
G (2) Belleville Washers 1/2" I.D.
H (2) Lock Washers 3/8" I.D.
I (2) Hex Nuts 3/8-16 Thread
Group C—Latch Support Bracket
K (2) Hex Bolts 5/16-18x3/4" Long
L (2) Lock Washers 5/16" I.D.
M (2) Hex Nuts 5/16-18 Thread
N (8) Hex Bolts 1/4-20 x 5/8" Long
O (8) Lock Washers 1/4" I.D.
P (8) Hex Nuts 1/4-20 Thread
Group D—Grass Catcher Frame and Bag
Q (10) Truss Machine Screws #10-24 x 1/2" Long
R (10) Hex Sems Nuts #10-24 Thread
S (8) Hex Bolts 1/4-28 x 7/8" Long
T (8) Lock Washers 1/4" I.D.
U (8) Hex Nuts 1/4-28 Thread
