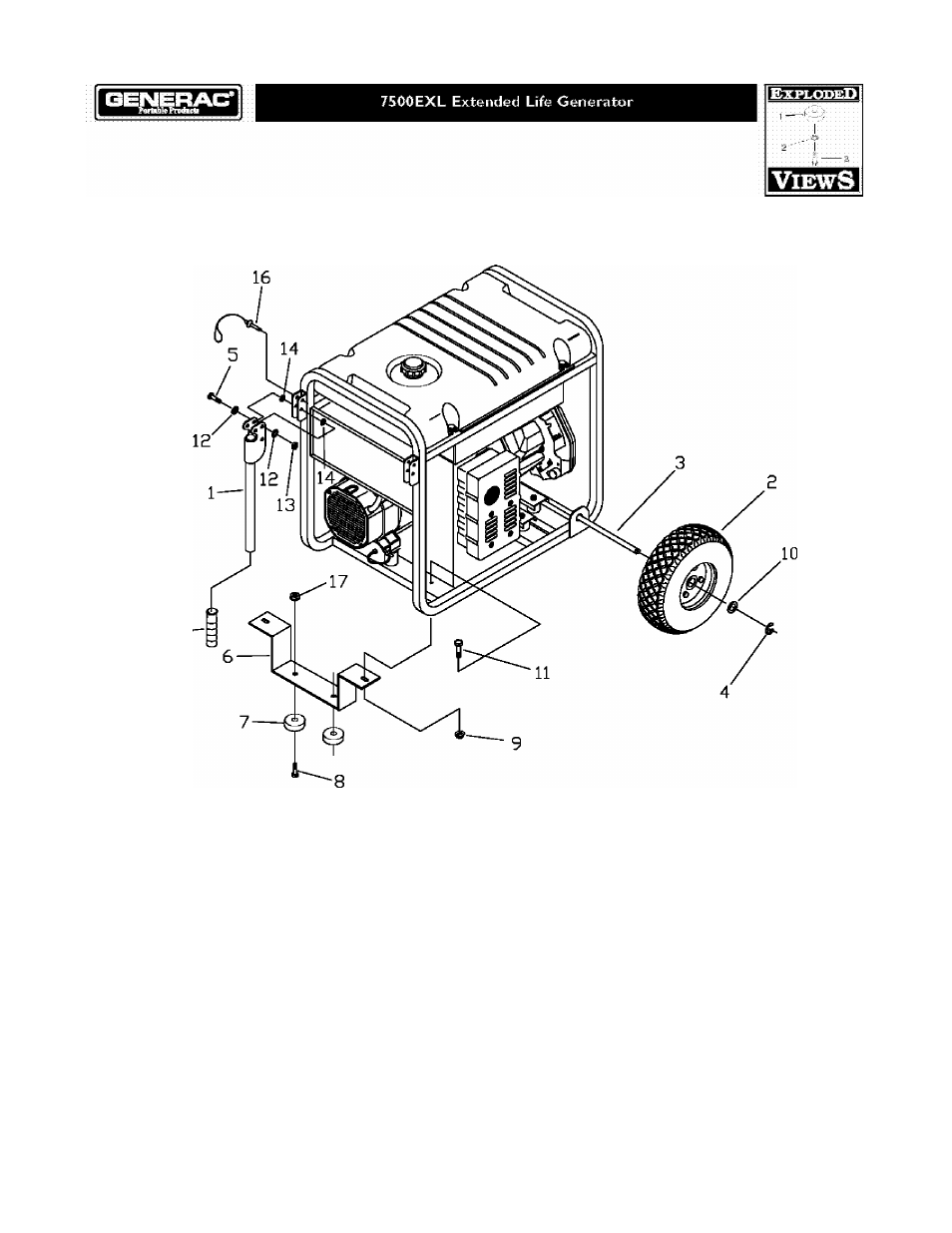

EXPLODED VIEW AND PARTS LIST-WHEEL KIT
15-
Item Part#
I
1
3
4
3
6
7
8
9
ID
I I
12
13
14
15
16
17
BI93200GS
B4966GS
I9I267GGS
I9I265GS
39287GS
BI86927GS
I9I4I3GS
224I3GS
52858GS
22247GS
39253GS
22I45GS
49820GS
I87I04GS
I897I8GS
B4I35GS
I92432GS
Description
HANDLE (Includes Item 15)
WHEEL
AXLE
E-RING
SCREW
LEG, Support
VIBE MOUNT, with Washer
SCREW
NUT, Lock;
WASHER
SCREW
WASHER
NUT, Nylok;
WASHER, Nylon
GRIP
PIN,with Lanyard
NUT, Lock;
