KNOW YOUR TRIMMER
A. INTRODUCTION
Your Trimmer is a versatile product developed for large
lawns and io make short work of a variety of lawn care tasks
— trimming, scalping, mowing, and sweeping.
Special Features Include:
• Adjustable assist handle.
• Tap-N-Go® semi-automatic line feed
• 15" cutting path
B. UNPACKING INSTRUCTIONS
1. Remove contents from the carton if you have not
done so.
2. Check parts against the list below.
3. Examine parts for damage. Do not use damaged parts.
4. Notify your WEED EATEE® dealer immediately if a
part is missing or damaged.
NOTE: It is normal to hear the fuel filter rattle in an empty
fuel tank.

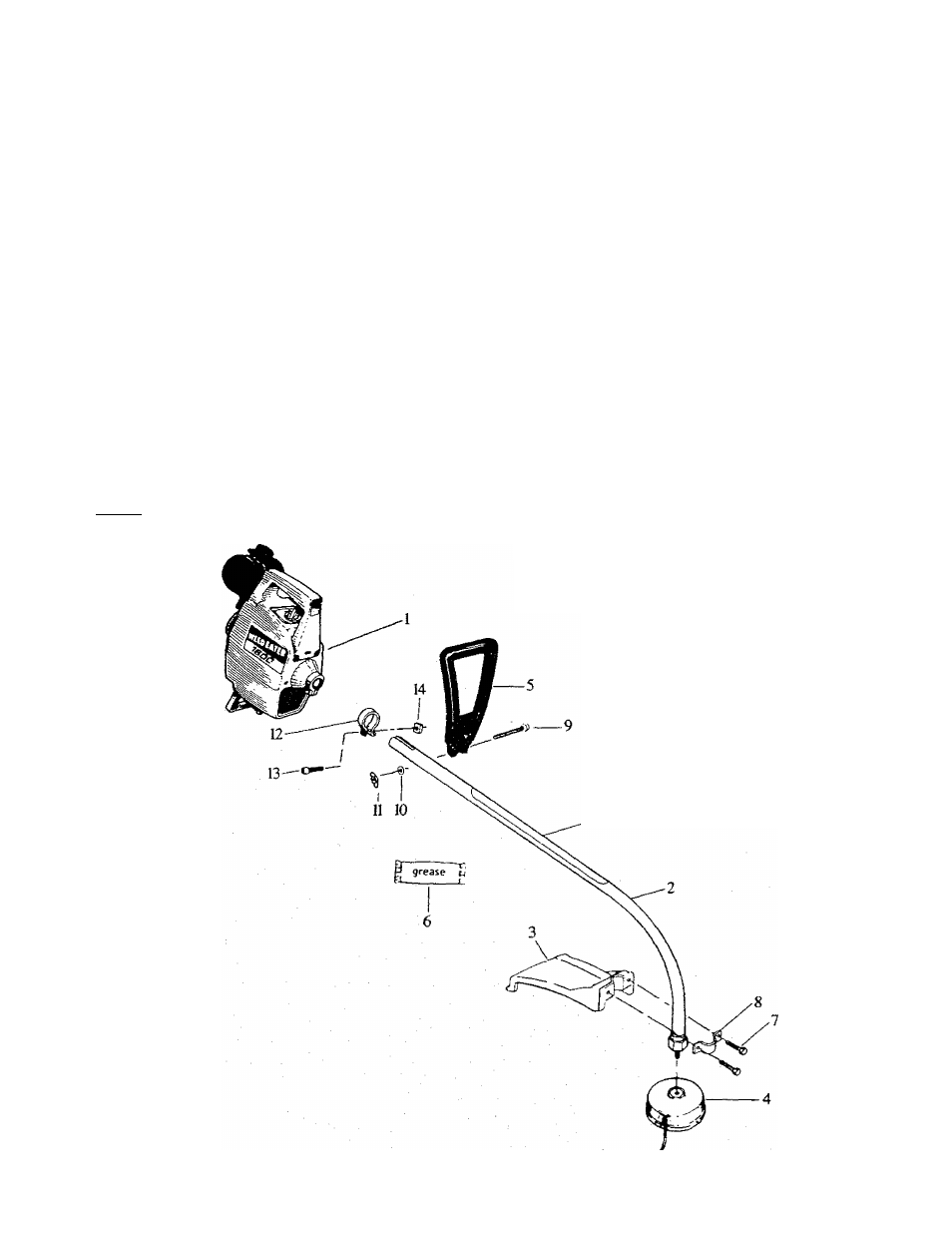

KEY CARTON CONTENTS: QTY.
NO,
1 Engine 1
2 Drive Shaft/Bearing Assembly w/Safety Label 1
3 Shield 1
4 Trimmer Head 1
5 Assist Handle 1
— Operator’s Manual (not shown) 1
— Loose Parts Bag (not shown) 1
5i: LOOSE PARTS BAG CONTENTS:
6 Flex Shaft Lube 1
7 Screw, Shield 2
8 Bracket-Shield 1
9 Hex Bolt, Assist Handle 1
10 Washer, Fiat, Assist Handle 1
11 Wing Nut, Assist Handle 1
12 Clamp-Engine Shroud 1
13 Bolt-Engine Shroud 1
14 Nut-Engine Shroud 1
* Weed Eater® hardware parts are Grade 5 or better. Do not
substitute lower grade parts. Always use genuine Weed Eater ®
parts.
SAFETY LABEL
