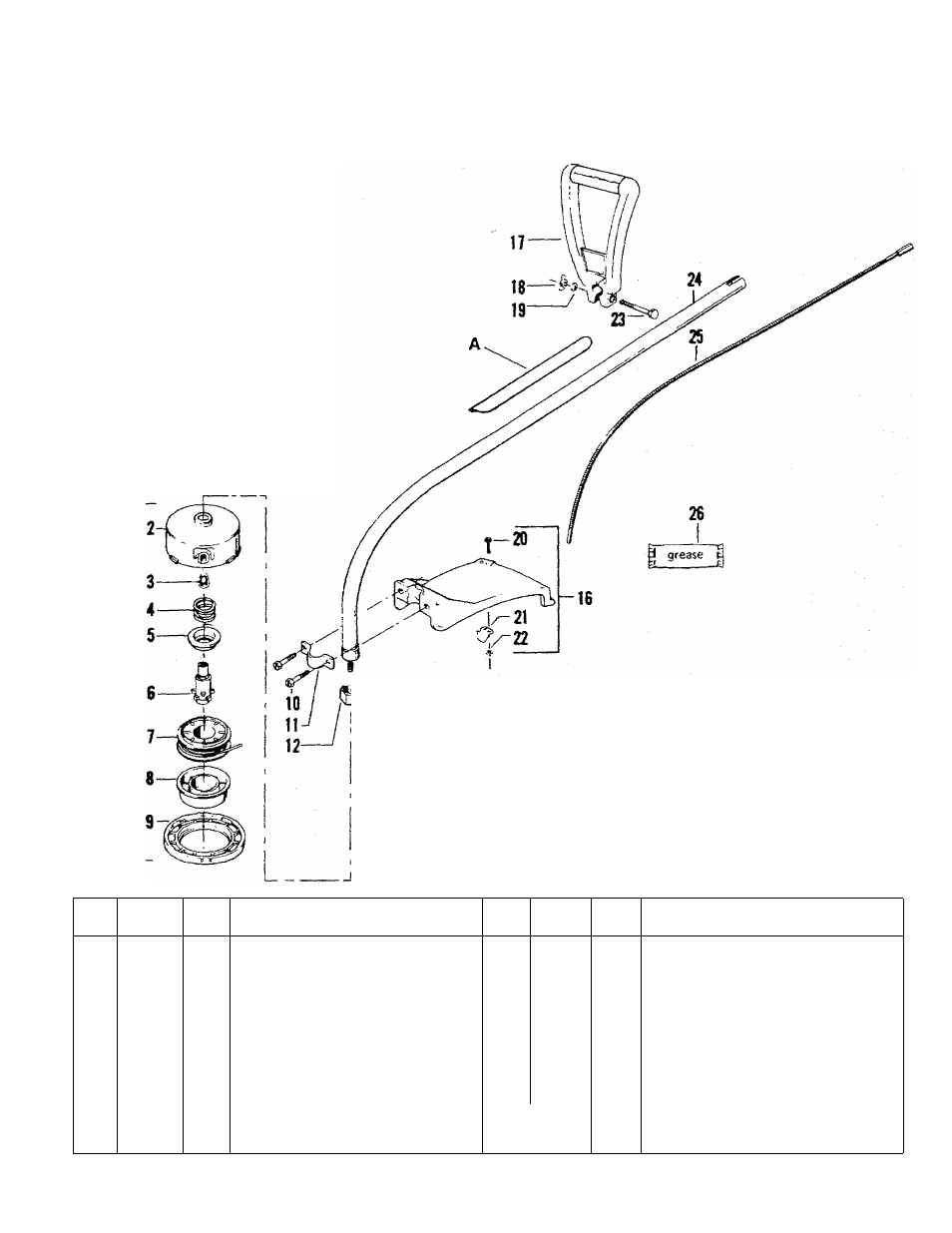

PARTS LIST
A.I
j
OWERUNIT
A
warning
All repairs, adjustments
and maintenance not
described in the Operator’s
Manual must be performed
by a qualified service
dealer to avoid creating a
hazard.
KEY
NO.
PART
NO.
QTY.
REQ.
DESCRIPTION
KEY
NO.
PART
NO.
QTY.
REQ.
DESCRIPTION
1
93894
1
Cutting Head Ass’y- (Incl. #2-9)
18
91373
1
Wing Nut-#1/4-20
2
93896
1
Hub W/Line Saver
19
92062
1
Washer-#1/4 Flat
3
93898
1
Une Saver
20
15337
2
Screw-Line Limiter (#10-24x1")
4
92067
1
Spring
21
93853
1
Limiter-Line
5
92068
1
Adaptor-Spring
22
15217
2
Nut-Line Limiter
6
93897
1
Drive Gear
23
15737
1
Screw
7
701523
1
Spool w/Ltne
24
94439
1
Drive Shaft Ass’y (Incl.#12)
8
93387
1
Release Button
25
93936
1
Flexible Shaft Assembly
9
92133
1
Cover
26
30102
Hex Shaft Lube-Optional
10
92243
2
Screw-Shield (#1/4-20x1-3/4")
Decals
11
93653
1
Bracket-Shield
A
27430
1
Decal-Shaft Warning
12
93716
1
Dust Cup
16
69213
1
Kit-Shield Assembly (ind. #10,20.
Not Shown
21 &22)
—
66912
1
Operator’s Manual
17
10722
1
Assist Handle
