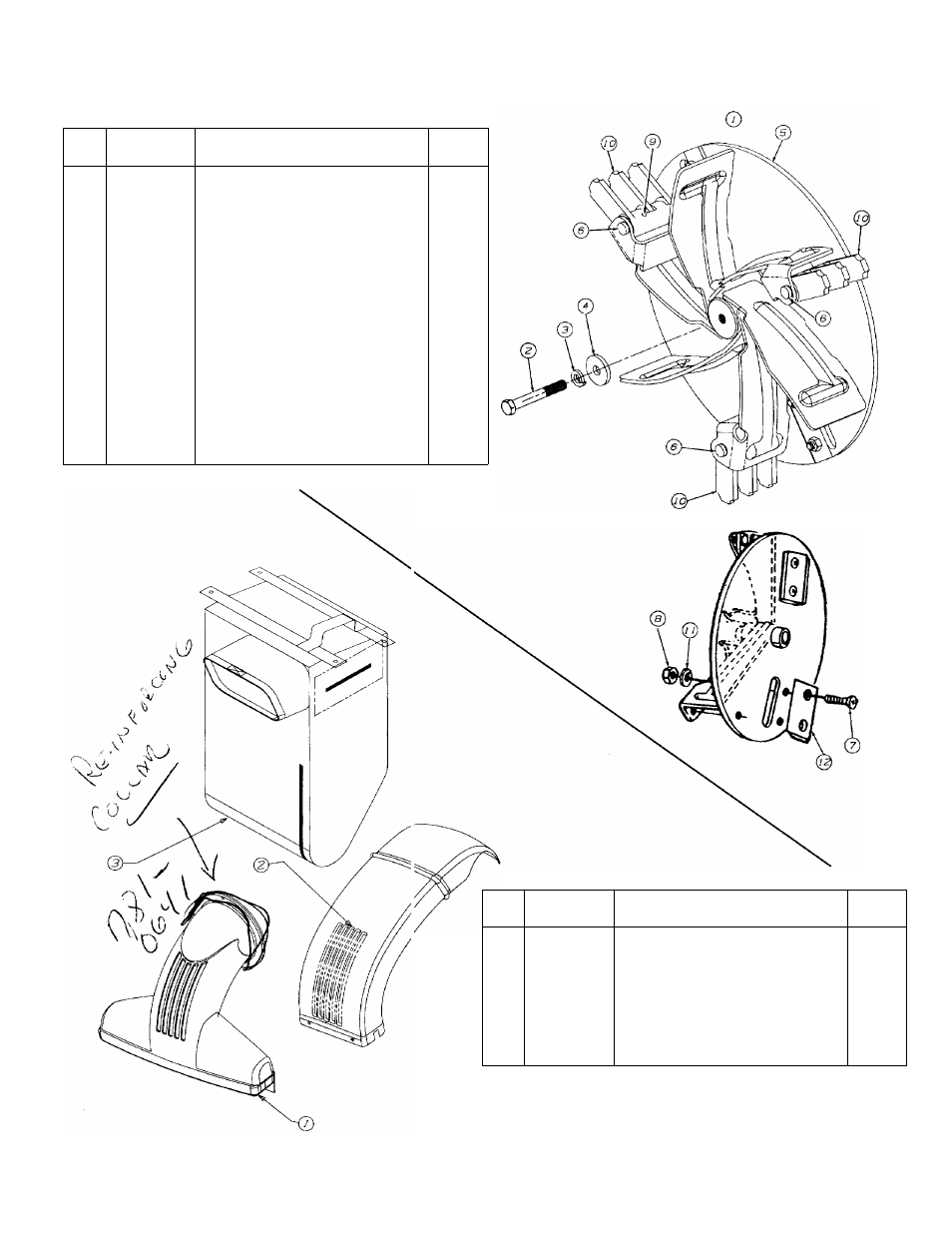

Models 315B and 315D
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
1
681-0078
IMPELLER ASSY COMP.
(315B-INCL. REF. NOS.
2 THRU 12)
1
681-0051
IMPELLER ASS’Y COMP.
(315D-INCL. REF. NOS.
2 THRU 12)
1
2
710-1273
SCREW-HEX
1
3
736-0217
WASHER-LOCK
1
4
736-0247
WASHER-FLAT
1
5
681-0078
IMPELLER ASSY
1
6
711-0833A
PIN-CLEVIS
3
7
710-1054
SCREW-FLAT HEAD
4
8
712-0411
NUT-HEX LOCK
4
9
715-0249
PIN-ROLL SPRING
3
10
719-0329
BLADE-FLAIL
3
11
736-0119
WASHER-LOCK
4
12
742-0544
BLADE-CHIPPER (315B)
4
781-0490
BLADE-CHIPPER (315D)
4
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
1
631-0028
NOZZLE ASS’Y.-VACUUM
(315B)
1
631-0029
NOZZLE ASS’Y.-VACUUM
(315D)
1
2
731-1573
CHUTE-DISCHARGE (315B)
1
731-1616
CHUTE-DISCHARGE (315D)
1
3
764-0472
BAG-VACUUM (315B)
1
764-0473
BAG-VACUUM (315D)
1
COLOR CODES:
788-0637 BLACK
788-0662 OYSTER GRAY
