ASSEMBLY

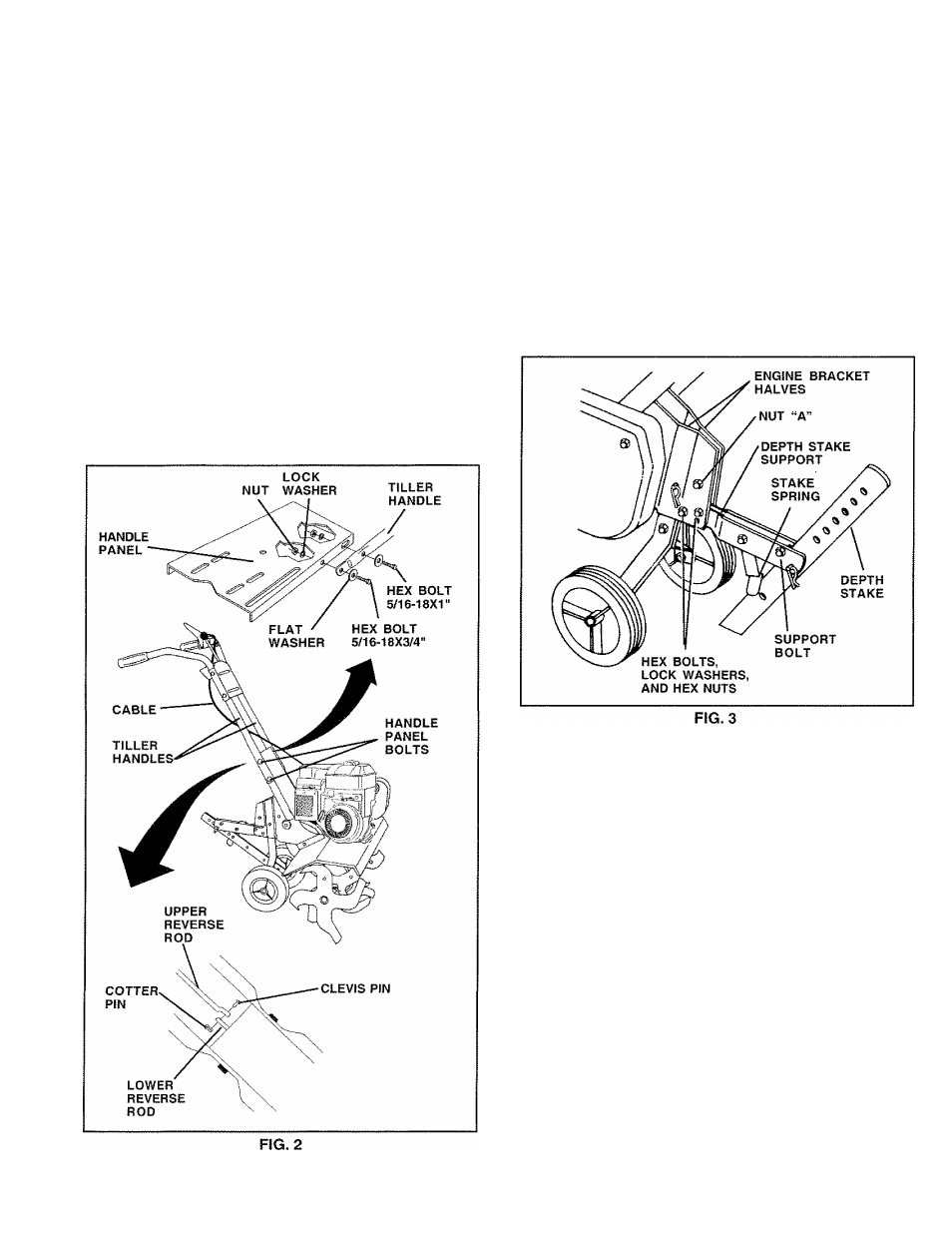

UNPACK CARTON & INSTALL HANDLE (See
Fig. 2)

A

CAUTION: Be careful of exposed staples

when handling or disposing of cartoning

material.

IMPORTANT; WHEN UNPACKING AND ASSEMBLING

TILLER, BE CAREFUL NOT TO STRETCH OR KINK

CABLE{S).

Cut cable ties securing handles.

Slowly lift handle assembly up and align handle holes

with handle panel hole and slot.

Loosely assemble hardware as shown. Be sure the

shorter (3/4” long) hex bolt is assembled in lower hole of
handle. Repeatforoppositeside, Tighten all hardware
securely.

Cut cable ties securing tiller to skid and remove tiller

from skid.

INSTALL REVERSE ROD (See Fig. 2)

Secure upper reverse rod to lower reverse rod using

clevis pin. Secure with cotter pin.

INSTALL DEPTH STAKE ASSEMBLY
(See Fig. 3)

Loosen nut “A”.

insertsiake support between engine brackethalves with

stake spring down.

Bolt stake support to engine brackets with bolts, lock

washers and nuts. Tighten securely. Tighten nut “A”.

Depth stake must move freely. If it does not, loosen

support bolt.

HANDLE HEIGHT

Handle height may be adjusted to better suit operator.

(See “HANDLE HEIGHT” in the Service and Adjust­

ments section of this manual).

TILLING WIDTH

Tilling width may be adjusted to better handle your tilling
conditions (See “TINE ARRANGEMENT” in the Service

and Adjustments section of this manual).

TINE OPERATION

Check tine operation before first use. (See “TINE

OPERATION CHECK” in the Service and Adjustments
section of this manual).
