TILLER - - MODEL NUMBER HDF550K

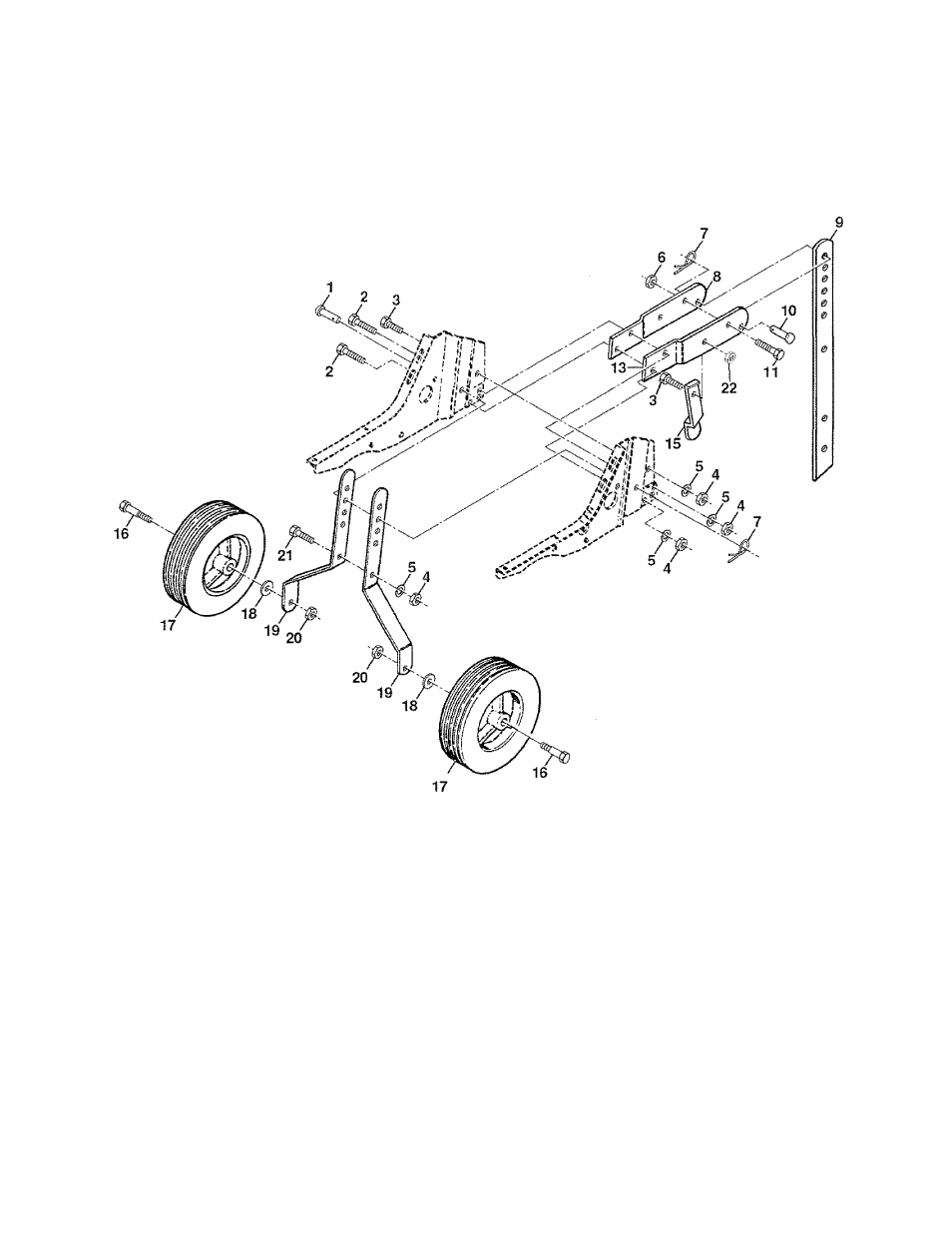

WHEEL AND DEPTH STAKE ASSEMBLY

REPAIR PARTS

KEY

PART

KEY

NO.

NO.

DESCRIPTION

NO.

NO.

DESCRIPTION

1

9194R

Pin, Clevis

15

5388J

Spring, Stake

2

74760520

Bolt, Hex 5/16-18x1-1/4

16

121117X

Bolt, Shoulder

3

74760512

Bolt, Hex 5/16-18x3/4

17

9188R

Wheel

4

73220500

Nut, Hex 5/16-18

18

19131311

Washer 1 3 / 3 2 x 1 3 / 1 6 x 1

5

10040500

Washer, Lock 5/16

19

9190R

Bracket, Wheel

6

73800600

Locknut, w/washer 3/8-16

20

73680600

Locknut, Crown 3/8-16

7

4921H

Clip, Hairpin

21

74760516

Bolt, Hex 5/16-18

X

1

8

1952J

Support, Depth Stake, R.H.

22

73800500

Locknut, w/insert 5/16-18

9

122233X

Stake, Depth

10

326J

Pin, Clevis

NOTE: All component dimensions given in U.S

11

74780628

Bolt, Hex, Fin 3/8-16

X

1-3/4

1 inch = 25.4 mm

13

1951J

Support, Depth Stake, L.H.

19
