TILLER - - MODEL NUMBER HDF550K

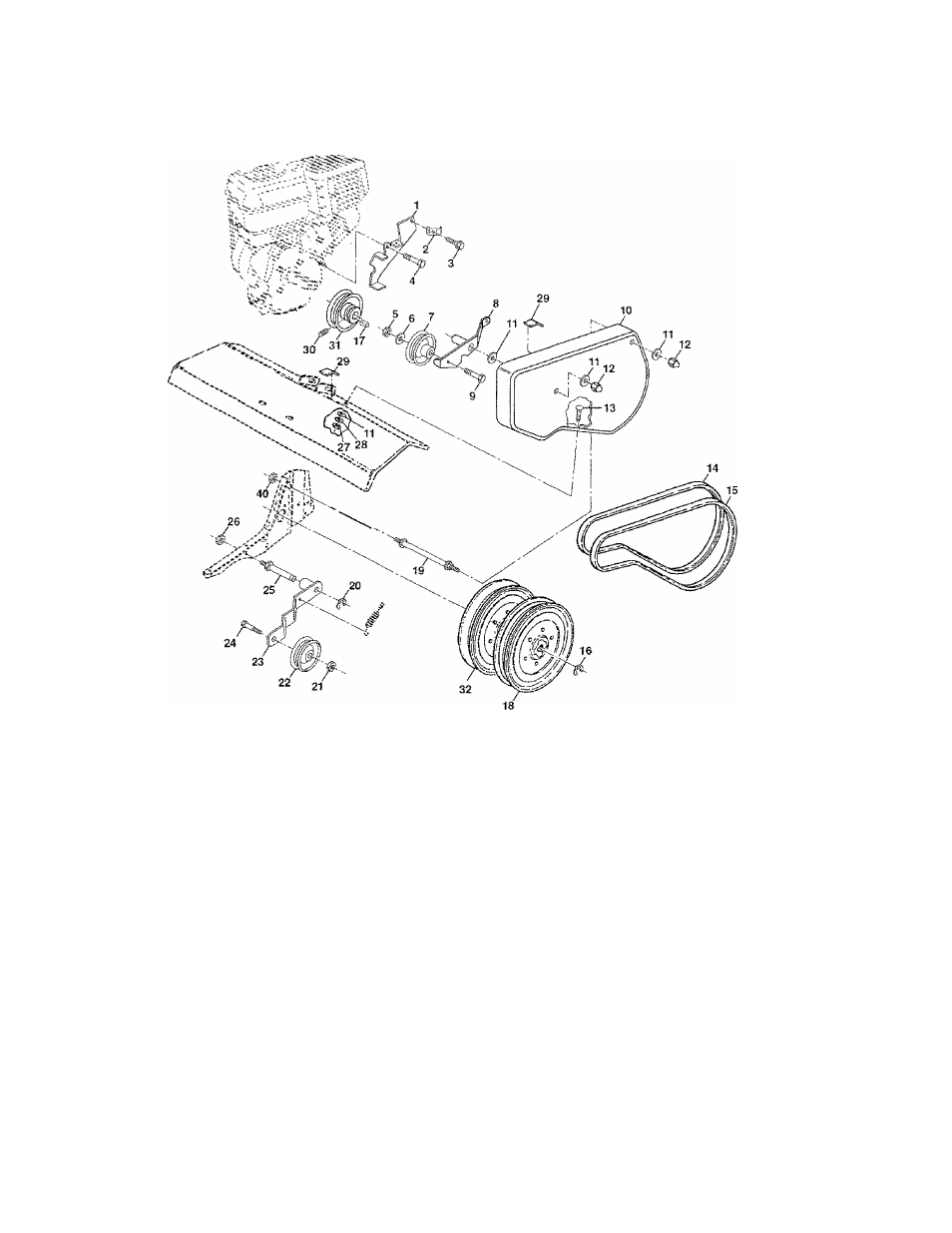

BELT GUARD AND PULLEY ASSEMBLY
REPAIR PARTS
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 166013 Assembly, Bracket, Belt Guard 20 12000036 Ring, Klip
2 9484R Clip, Cable 21 73350600 Nut, Hex, Jam 3/8-16
3 86777 Screw, Hex, Washer Hd., Slotted, 22 161806 Pulley, Idler
Thd. Cutting #10-24 x 1/2 Type D 23 175377 Arm, Idler
4 74610812 Bolt, Hex 1/2-20x3/4 24 74760620 Bolt, Hex 3/8-16 x 1-1/4
5 73220600 Nut, Hex 3/8-16 25 106968X Shaft, Idler Arm
6 19131316 Washer 13/32 x 13/16 x 16 Ga. 26 73350500 Nut, Hex, Jam 5/16-18
7 2009J Pulley, Idler, Reverse 27 73220400 Nut, Fin Hex 1/4-20
8 175558 Assembly, Arm, Reverse Idler 28 10040400 Washer LK Hvy Helical 1/4
9 74760628 Bolt, Hex 3/8-16 x 1-3/4 29 109227X Pad, idler
10 156705X428 Guard, Belt 30 23200404 Screw, Set, Socket, Headless
11 19091016 Washer 9/32 x 5/8 x 16 Ga. C.P. 1/4-20x1/4
12 104213X Nut, Cap 1/4-20 31 101189L Sheave, Engine
13 72140406 Bolt, Carriage 1/4-20 x 3/4 32 151223 Pulley, V-Groove, Trans.
14 133035 V-Be It (Forward Motion) 35 19091416 Washer9/32x7/8x 16Ga.
15 2614J V-Belt (Reverse) 40 73510400 Nut Keps Hex 1/4-20
16 12000028 Ring, Retainer
17 2649M Key, Square
NOTE: All component dimensions given in U.S. inci
18 151236 Pulley, Fiat, Trans.
1 men = Zb A mm
19 165914 Bolt, Belt Guard
18
