REPAIR PARTS

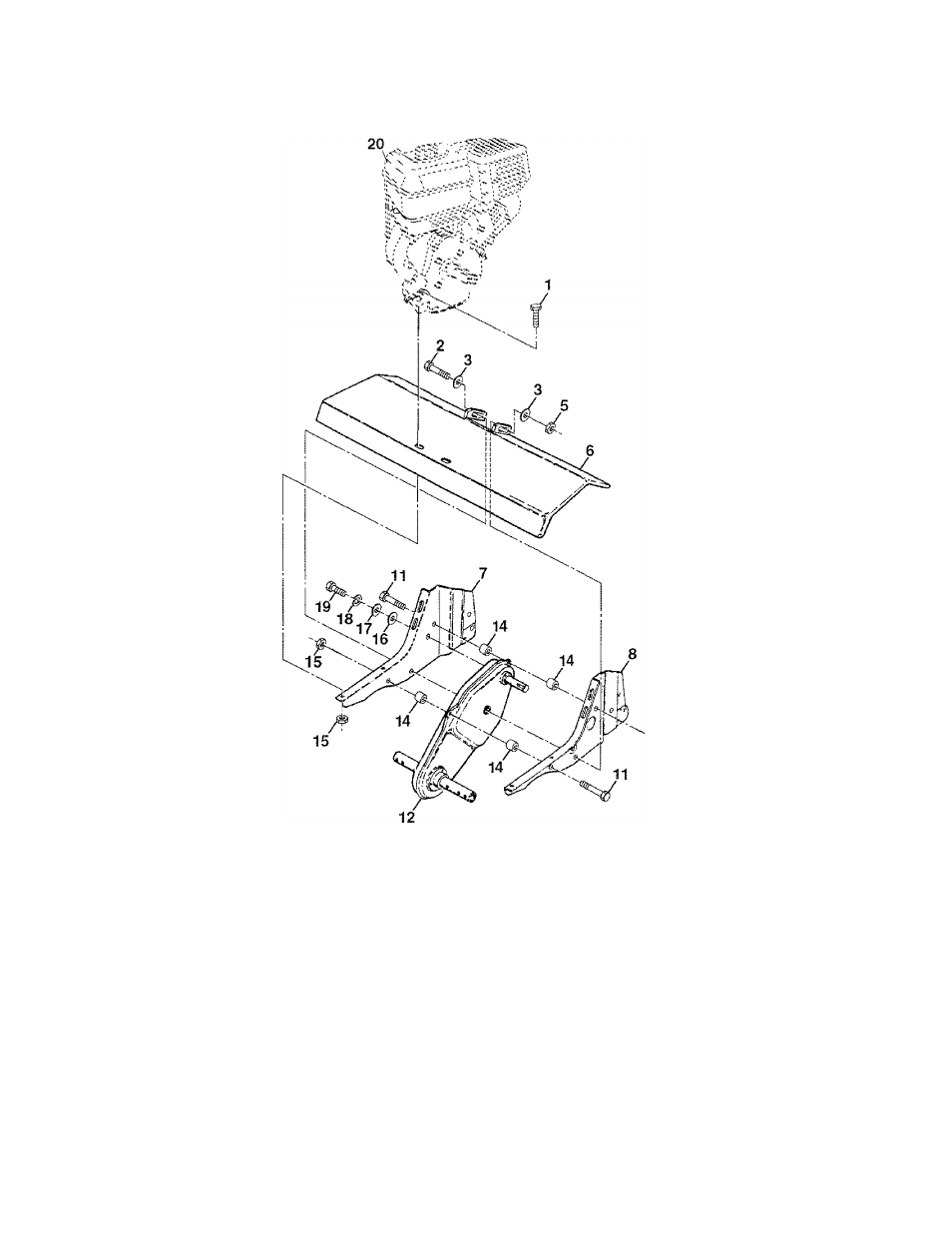

TRANSMISSION
TILLER - - MODEL NUMBER HDF550K
15
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 74760524 Bolt, Hex 5/16-18 X 1-1/2 Gr. 2 14 9173R Spacer, Split
2 74780652 Bolt, Hex, Fin 3/8-16 X 3-1/4 15 73970500 Nut Lock Hex Fig
3 19131311 Washer 13/32x13/16x11 16 19091412 Washer 9/32 x 7/8 x 12 Ga.
5 73800600 Locknut, Hex, w/washer 3/8-16 17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.
6 9057R428 Shield, Tine 18 10040400 Washer, Lock 1/4
7 165835 Bracket, Engine, R.H. 19 74610412 Bolt, Hex 1/4-28 X 3/4 Gr. 5
8 1948J Bracket, Engine, L.H. 20 Engine, Briggs Mode! 110402
9 10040500 Washer, Lock 5/16 Order parts from engine
10 73220500 Nut, Hex 5/16-18 manufacturer
11 74760544 Bolt, Hex 5/16-18x2-3/4
NOTE : All component dimensions given in U.S. inc
12 176112 Transmission
1 inch 25.4 mm
