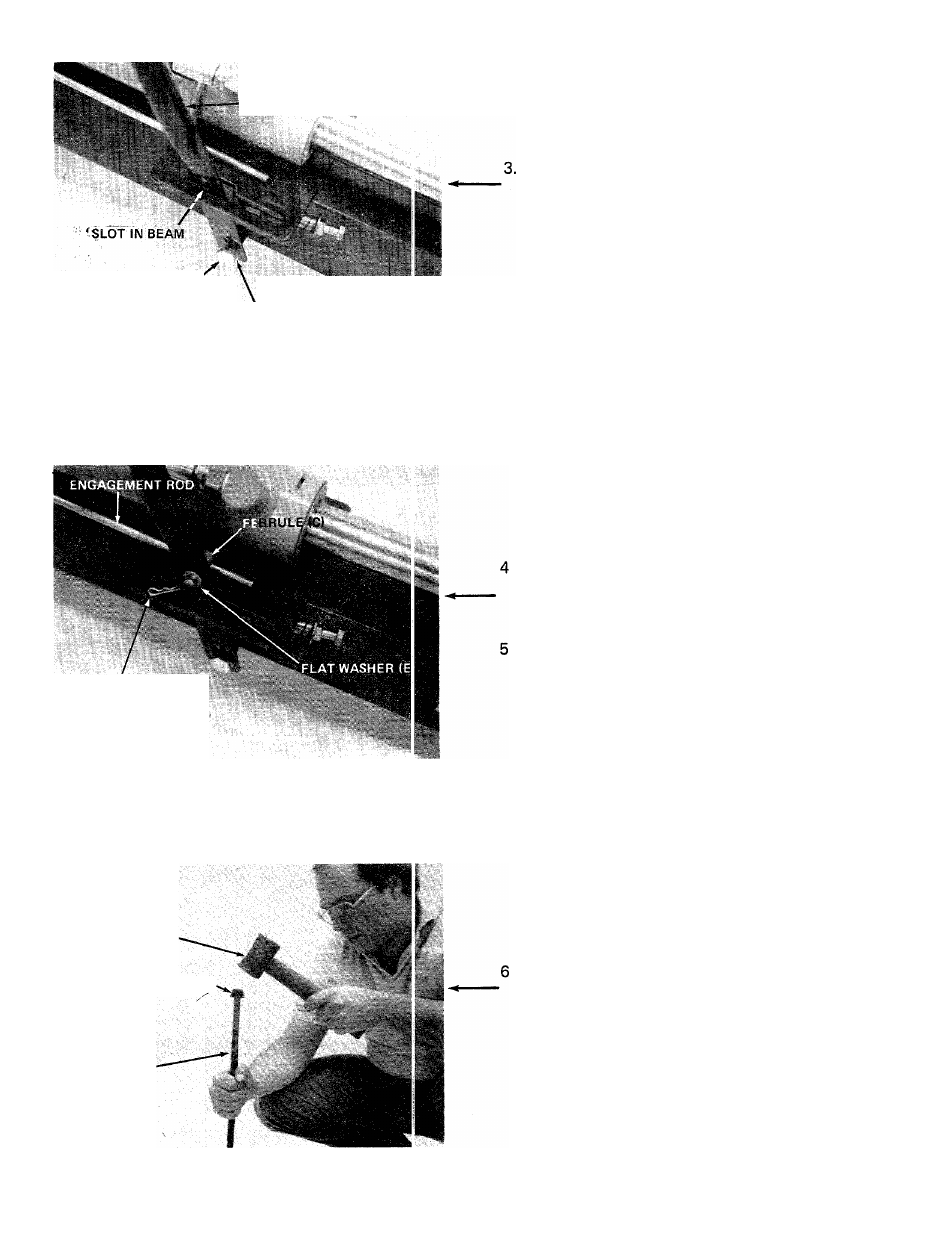

— ENGAGEMENT HANDLE IM)
SHOULDER BOLT (A)
Place the flattened end of the engagement handle
(M) down through the slotted bracket beside the
beam. Secure the bottom hole in the handle to
the beam with shoulder bolt (A) and wave washer
(B) as shown in figure 4.
WAVE WASHER (B)
FIGURE 4.
HAIR PIN COTTER (D)
Place the engagement handle in the notch in the
slotted bracket. See figure 5. Thread the ferrule
(C) onto the engagement rod until the ferrule
lines up with the hole on engagement handle.
Secure the ferrule (C) to engagement handle
with flat washer (E) and hairpin cotter (D).
See figure 5.
FIGURE 5.
HAMMER
AXLE PUSH CAP (G)
AXLE
SHAFT (K)
Using a raw hide or plastic hammer, tap one axle
push cap (G) on one end of axle shaft (K). See
figure 6.
FIGURE 6.
