FIGURE 1.
1
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED
(1) Raw Hide or Plastic Hammer
(1) 3/4" Wrench or Adjustable Wrench
(1) Pipe Wrench
(1) Pair of Pliers
OTHERS MATERIALS NEEDED
One gallon of regular grade gasoline (for engine).
1-1/2 pints of SAE 30 or 10W30 oil (for engine)
Approximately 2 gallons of Dexron II automatic
transmission fluid (may be obtained at any local
service station or auto parts store)
Funnel
Pipe sealant
CONTENTS OF HARDWARE PACK (See figure 1):
A (1) Shoulder Bolt
B (1) Wave Washer
C (1) Ferrule
D (1) Hairpin Cotter
E (2) Flat Washers
F (1) Cotter Pin
G (2) Axle Push Caps
H (1) Spacer
M

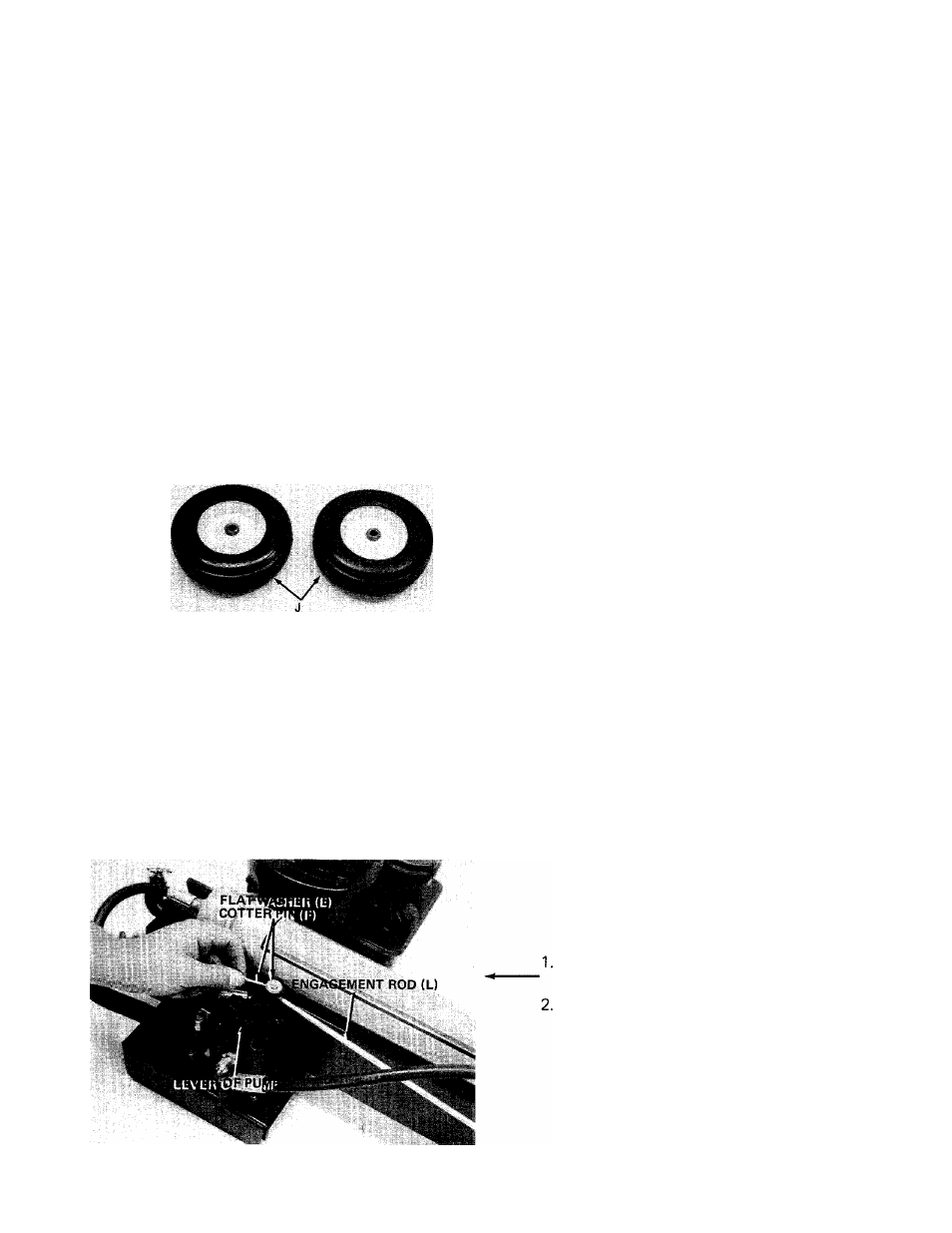

■LOOSE PARTS IN CARTON (See figure 2):
J (2) Wheels
K (1) Axle Shaft
L (1) Engagement Rod
M (1) Engagement Handle
FIGURE 2.
Hook the bent end of the engagement rod (L)
into the lever on top of the pump. See figure 3.
Next, place flat washer (E) over the rod. Insert
the cotter pin (F) into the hole in the rod and
secure by bending the ends of the cotter pin in
opposite directions.
FIGURE 3.
