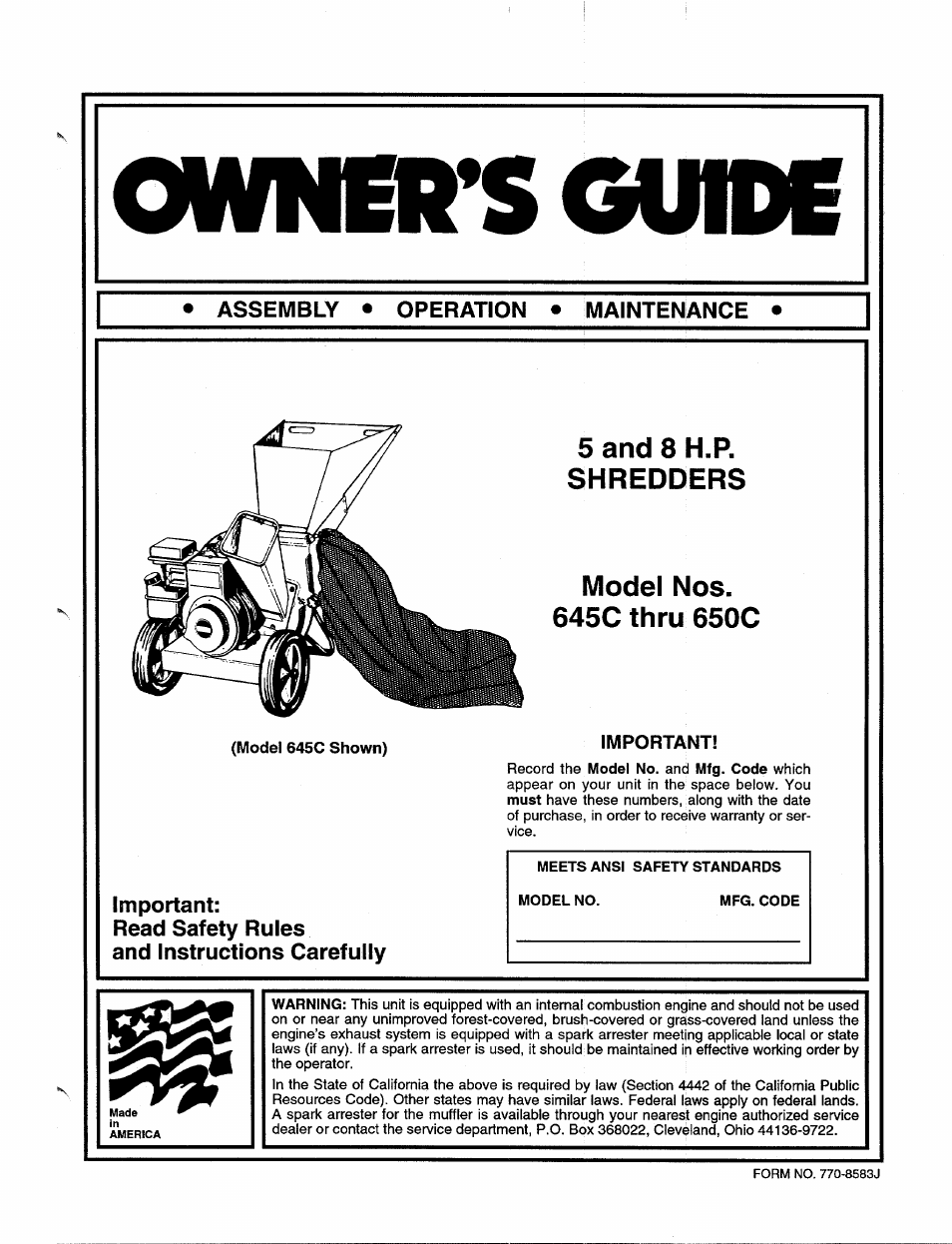

OWNEirS GUIDE
5 and 8 H.P. SHREDDERS
Model Nos. 645C thru 650C
IMPORTANT!
Important:
Read Safety Rules and Instructions Carefully
Si\FETY RULES
A
WARNING: TO REDUCE THE PCITENTIAL FOR ANY INJURY, COMPLY WITH THE FOLLOWING SAFETY INSTRUCTIONS. FAILI RE TO COMPLY WITH THE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
ASSEMBLY INSTRUCTIONS
ATTACHING THE UPPER GUIDE ASSEMBLY
Hex Bolt
B
TO REMOVE SHREDDER FROM CARTON
TOOLS REQUIRED FOR ASSEMBLY
ATTACHING THE HOPPER ASSEMBLY
AHACHING THE CHUTE DEFLECTOR (See Figure 2)
Hopper Pivot Door
ATTACHING THE UPPER GUIDE ASSEMBLY (Hardware A)
AHACHING THE HOPPER ASSEMBLY (Hardware B)
ATTACHING THE CATCHER BAG
OPERATION
OPERATING CONTROLS (See figure 6)
BEFORE STARTING
TO START ENGINE
FIGURE 7.—Model 645 Shown
TO STOP ENGINE
HOWTO USE YOUR SHREDDER
WARNING: Make certain the chipper chute door is closed when not in use.
MAINTENANCE
LUBRICATION
ENGINE
CLEANING
REMOVING THE FLAIL SCREEN
SHARPENING OR REPLACING CHIPPER BLADES
SHARPENING OR REPLACING SHREDDING BLADE
FLAILS
CARBURETOR ADJUSTMENT
TROUBLE SHOOTING
