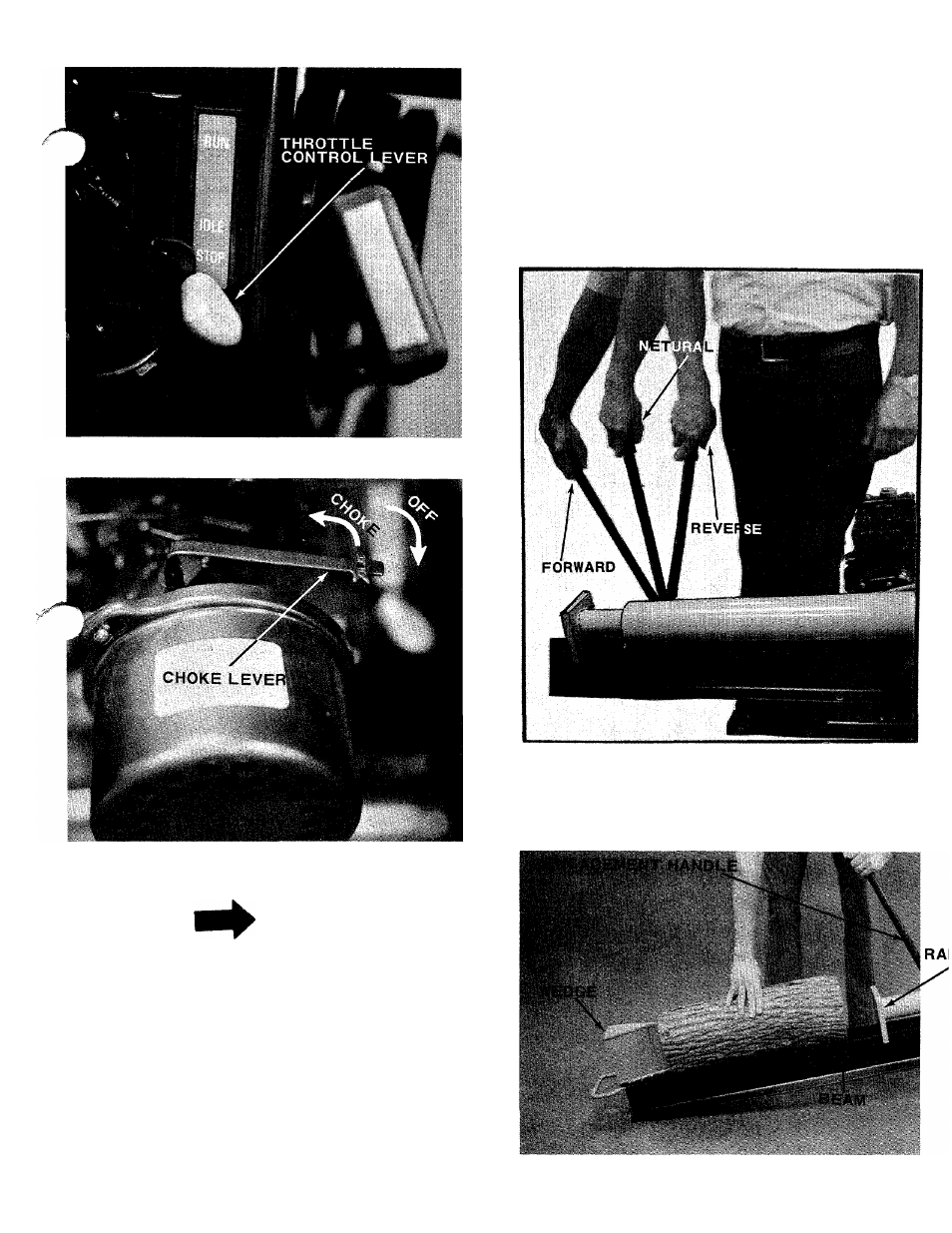

FIGURE 6
FIGURE 7
NOTE
After
engine
has
been
serviced,
finish
filling
oil
reservoir.
Start
engine and operate engagement handle
so the ram makes two complete strokes.
A
CAUTION
This is to purge the hydraulic system
of air.Continued operation will cause
permanent damage to pump and cyl
inder. Stop engine and finish filling
reservoir tank. It will take about 3
quarts of oil. See figure 4.
USING YOUR LOG SPLITTER
Your log splitter is designed for safe, efficient,
operation. CARE, OF COURSE, MUST BE EXER
CISED THAT HANDS ARE KEPT AWAY FROM ALL
MOVING PARTS.
A. Set throttle at maximum speed.
B. Engagement handle has three positions: Forward-
moves ram towards wedge. Neutral - ram stops
in place. Reverse - ram returns. See figure 8.
FIGURE 8
C. Maximum length that can be split is 23”
D. Place log on beam and hold in place with right
hand. See figure 9.
FIGURE 9
