ASSEMBLY INSTRUCTIONS
^^>*-^Remove the log splitter, parts pack all all literature
Tom the crate before discarding crate.
2.
Block up rear end of log splitter so that the rear
wheels may be assembled.
3.

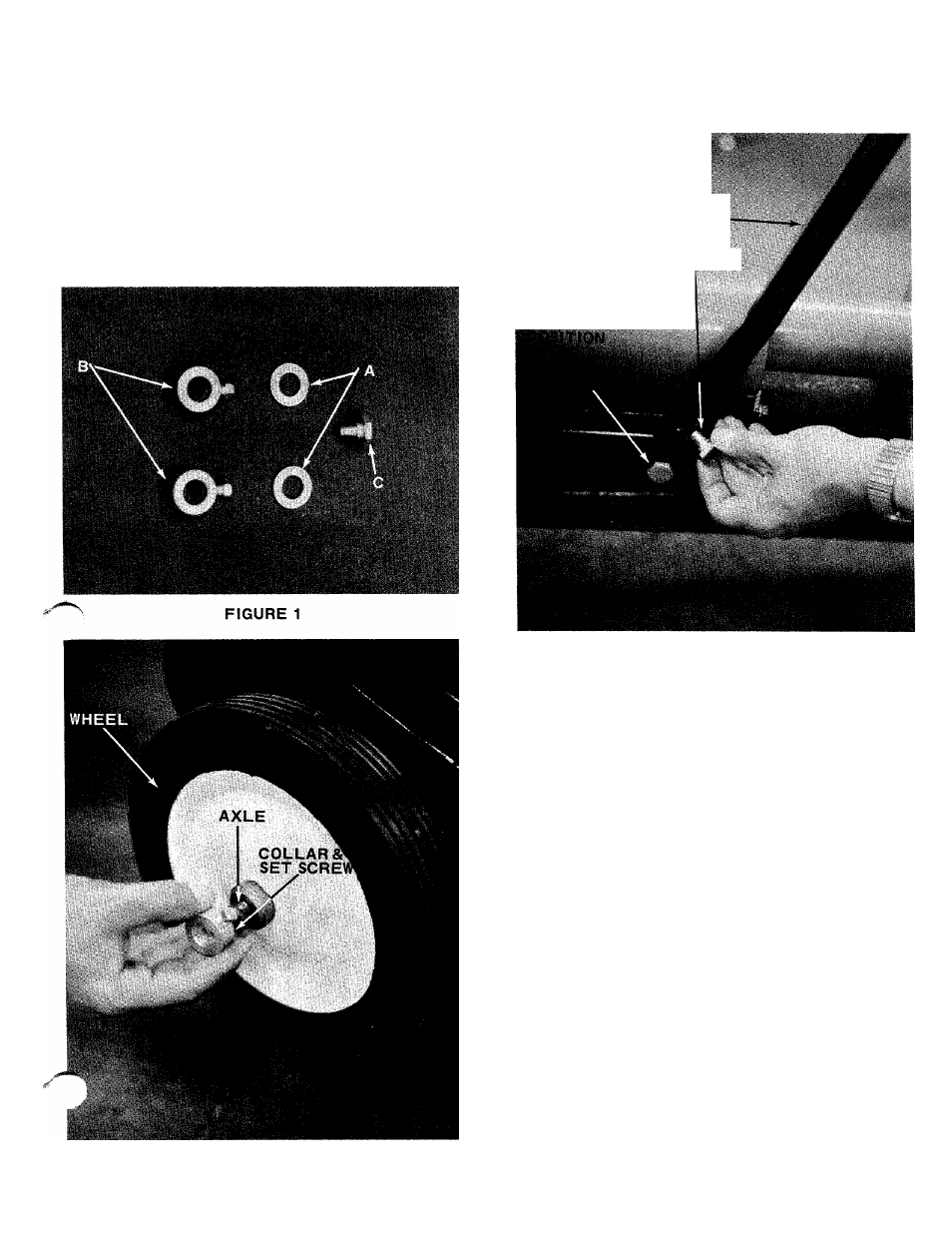

Place flat washers (A) on axle, then wheels and
secure with collars and set screws (B). See figures
1 and 2.
4.
The engagement handle is partly assembled, pivot
handle upward into positionand secure with shoulder
bolt (C). See figure 3.
ENGAGEMENT HANDLE
SHOULDER BOLT (C)
SHOULDER BOLT
tEADY IN
FIGURE 3
5. Tighten both shoulder bolts securely.
OPERATION
1. Service engine with gas and oil. See engine manual
packed with log splitter for complete instructions
for the care and maintenance of engine. READ
DIRECTIONS CAREFULLY.
A CAUTION
You must not operate log splitter
without proper amount of oil in reser
voir tank.
FIGURE 2
2. Remove the breather cap from reservoir tank.
See figure 4.
