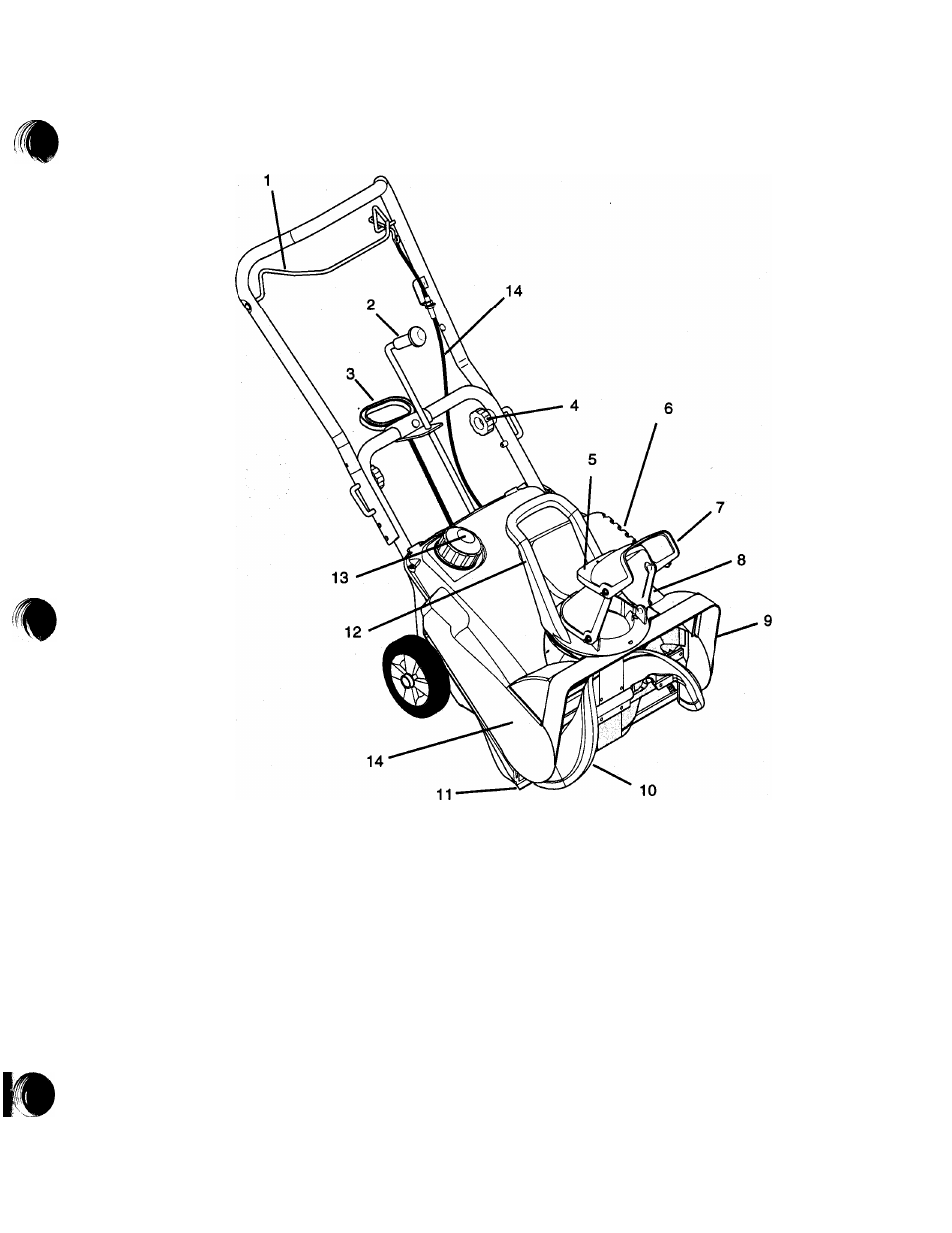

1. Impeller Clutch Bail

9.

Impeller Housing

2. Chute Crank (938007,009)

10.

Impeller

3.

Recoil Starter Handle

11.

Scraper Blade

4.

Handlebar Knob

12.

Discharge Chute Rotation Handle

5. Chute Deflector Handle

13.

Fuel Tank and Cap

6. Air Intake ^

14.

Cowl

7. Chute Deflector

15.

Impeller Control Cable

8.

Discharge Chute

Figure 9
