Ariens SNO-THRO 008-SS322E - Manual (Page 12)

Discharge Chute Crank (938006,009)

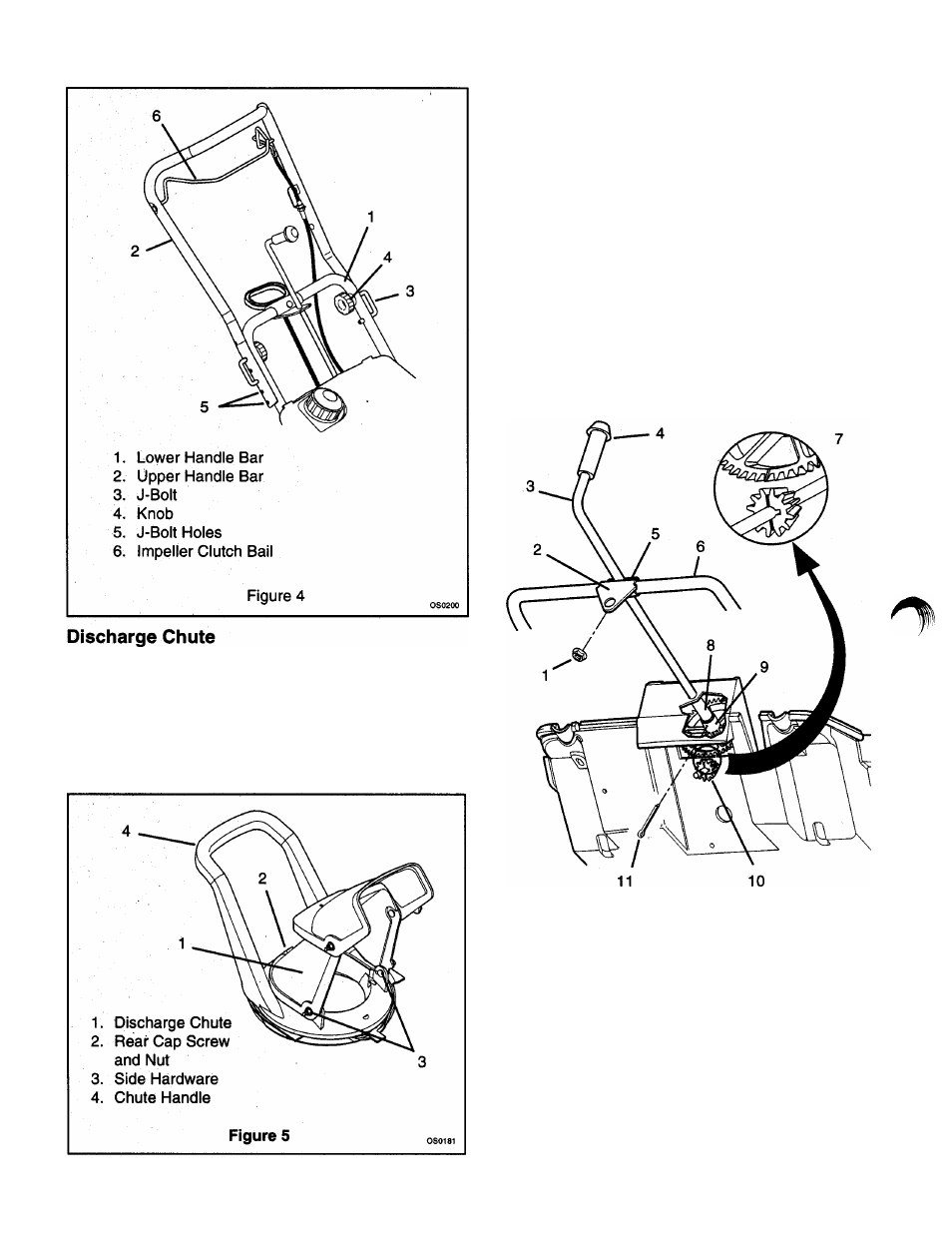

To install Discharge Chute Crank (Figure 6);
9. Remove Nut from bolt that holds Recoil Starter
Handle Bracket in place.
10. Pull the Chute Crank Assembly up so hole in
Chute Crank Bracket fits behind/under Lower
Handle Bar and over bolt end.
NOTE: DO NOT pull Chute Crank Assembly up too far.
If Chute Crank Bracket goes past Lower Handle Bar,
48T Gear and Spacer will fall off into unit.
11. With Crank Knob straight up and Discharge Chute
straight forward, check that 48T Gear meshes with
12T Pinion at Space and Tooth Identification
Marks. Align if necessary.
6. Remove Rear Cap Screw and Nut from rear of
Discharge Chute (Figure 5).
7. Tip Discharge Chute up and install hardware just
removed.
8. Tighten hardware at rear of Discharge Chute first,
then at sides.
1
.
2
.
3.
4.
5.
6
.
7.
8
.
9.
Nut
Recoil Starter Handle Bracket
Chute Crank Shaft
Crank Knob
Chute Crank Bracket
Lower Handle Bar
Space & Tooth Identification Marks
Spacer
48T Gear
10. 12T Pinion
11. Cotter Pin
Figure 6
Ariens» Sno-Thro» Orig. 4/96
