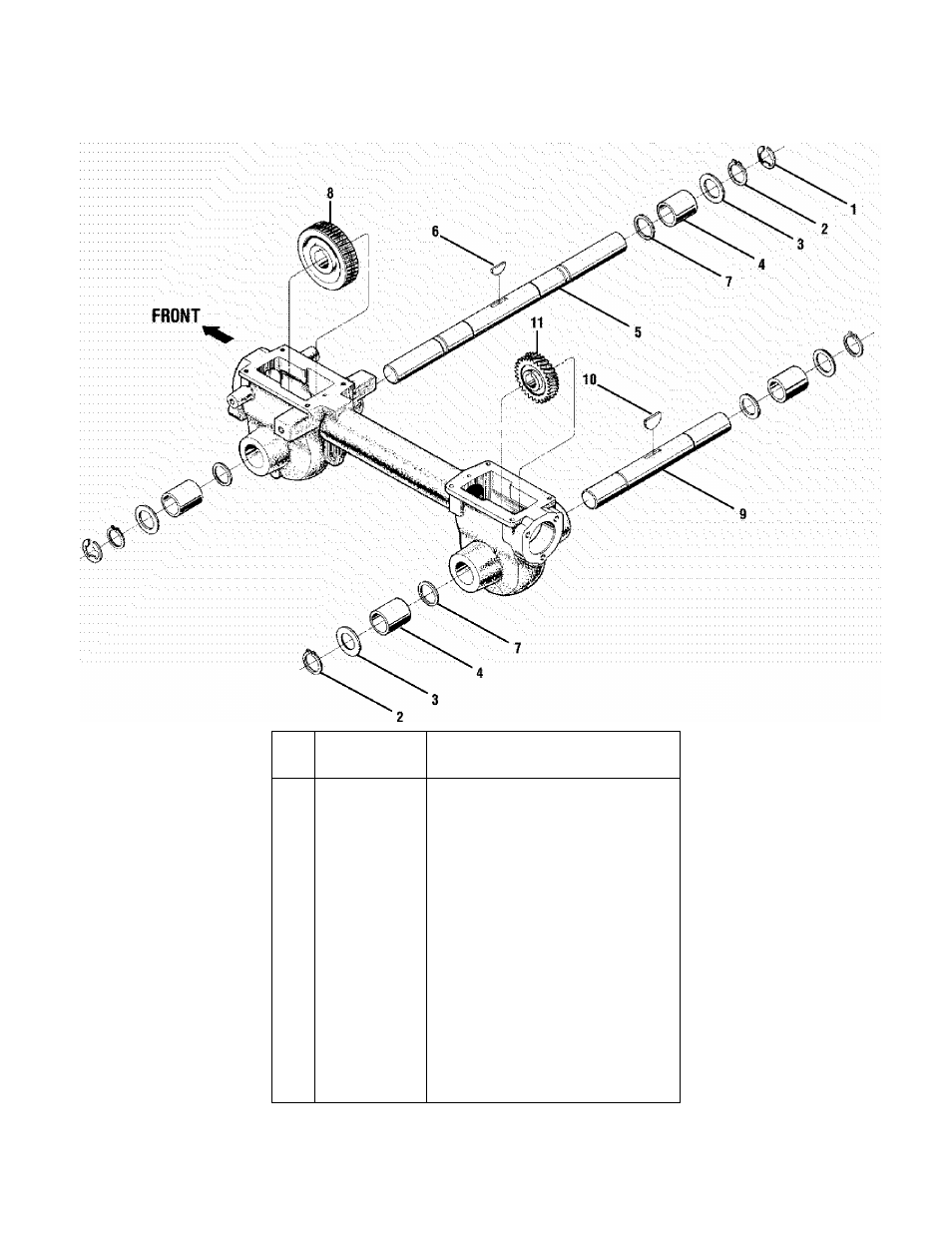

MODELS 630C, 634F & 634B
(A) For Model 630C
(B) For Model 634F
(C) For Model 634B
REF
NO.
PART NO. DESCRIPTION
1 6W-9512 Retainer, Snap Ring, "E” Type
2 1909950 Retainer, Snap Ring
3 GW-1166-r Shim, 0.062" thick
GW-1166-2* Shim, 0.030" thick
GW-1166-3* Shim, 0.015" thick
GW-1166-4* Shim, 0.010" thick
GW-1166-5* Shim, 0.005" thick
4 GW-1086 Bronze Bushing
5 711-04092 Wheei Shaft (B){C)
711-04088 Wheei Shaft (A)
6 GW-9305 Key, Hi-Pro, 1/4x1
7 GW-1132-2 Spacer
8 1904278 Worm Gear, Wheei Shaft
9 711-04078 Tilier Shaft
10 GW-1104 Woodruff Key
11 1904279 Worm Gear, Tiller Shaft
Use as required to obtain between .005’’ and .030" allowable end-play.
