Audio Distribution System Crestron Adagio™ AADS

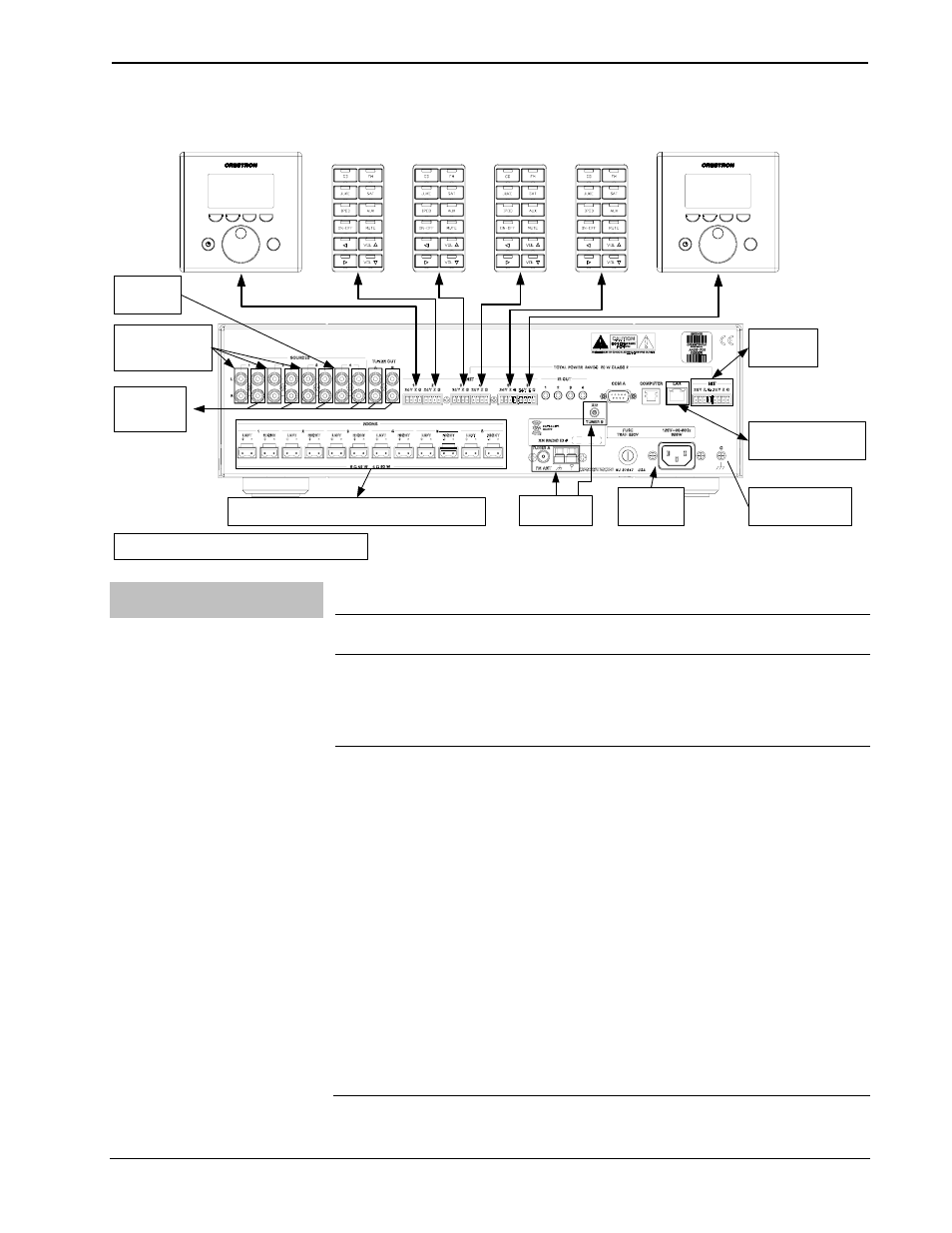

Hardware Connections for Out-of-the-Box Functionality
APAD
LAN:
CONNECT TO DHCP ROUTER;
REQUIRED FOR USE WITH
CEN-IDOC AND AAS
NET:
TO AAE
(OPTIONAL)
INPUT(S)
FROM AAS (OPTIONAL):
AAS-1: SOURCE 1
AAS-2: SOURCES 1 & 2
AAS-4: SOURCES 1-3*
OUTPUT TO
CORRESPONDING
SOURCE INPUTS
ON AAE
(IF INSTALLED)
TO ROOM SPEAKERS:
EACH PAIR OF SPEAKER OUTPUTS CORRESPONDS TO A ROOM NUMBER
APAD
GROUND:
TIE ALL SOURCE AND AAE
GROUNDS TO AADS
GROUND TERMINAL
POWER:
FROM LINE
VOLTAGE
TUNER INPUTS:
FROM INCLUDED
ANTENNAS
INPUT FROM
CEN-IDOC
(OPTIONAL)
* IF A CEN-IDOC IS NOT CONNECTED TO THE AADS, OUTPUT 4 OF THE
AAS-4 CAN BE CONNECTED TO SOURCE INPUT 4 OF THE AADS.
C2N-DBF12 C2N-DBF12 C2N-DBF12 C2N-DBF12
Custom Program
Connections Refer to the following when not using the out-of-the-box functionality:
WARNING: To prevent injury and / or equipment damage due to electric shock,
disconnect power from the AADS prior to making any wiring connections.
Make the necessary connections as called out in the illustration that follows this
paragraph. Refer to “Network Wiring” on page 16 before attaching the 4-position
terminal block connectors. Apply power after all connections have been made.
CAUTION: Speakers must be rated to full available output.
CAUTION: Do not bridge speaker outputs.
CAUTION: Devices such as the AAS and the AAE must be fully grounded to the
AADS. Additionally, any other source devices should be grounded to the AADS as
well.
NOTE: The AADS can only be powered by the included power cord. Power cannot
be supplied from network devices that are connected to the mini-terminal block
connectors.
NOTE: The AADSI (International version) requires a power cord that is
harmonized to the country’s national and local electrical code. Each inner wire in the
cord should be at least 16 AWG or (1.5 mm
2 ) and rated for at least 500V. The
temperature rating of the cord should be at least 60ºC. The cord length should be 1.5
meters to 2 meters.
18 • Audio Distribution System: Adagio AADS Operations Guide – DOC. 6458
