Model 310
TINE CHART
Part No. Description
784-0092
784-0094
784-0091
784-0093 Inner Tine Ass’y. Comp—R.H.
Outer Tine Ass’y- Comp.—R.H.
Inner Tine Ass’y. Comp.—L.H.
Outer Tine Ass’y. Comp.—L.H.

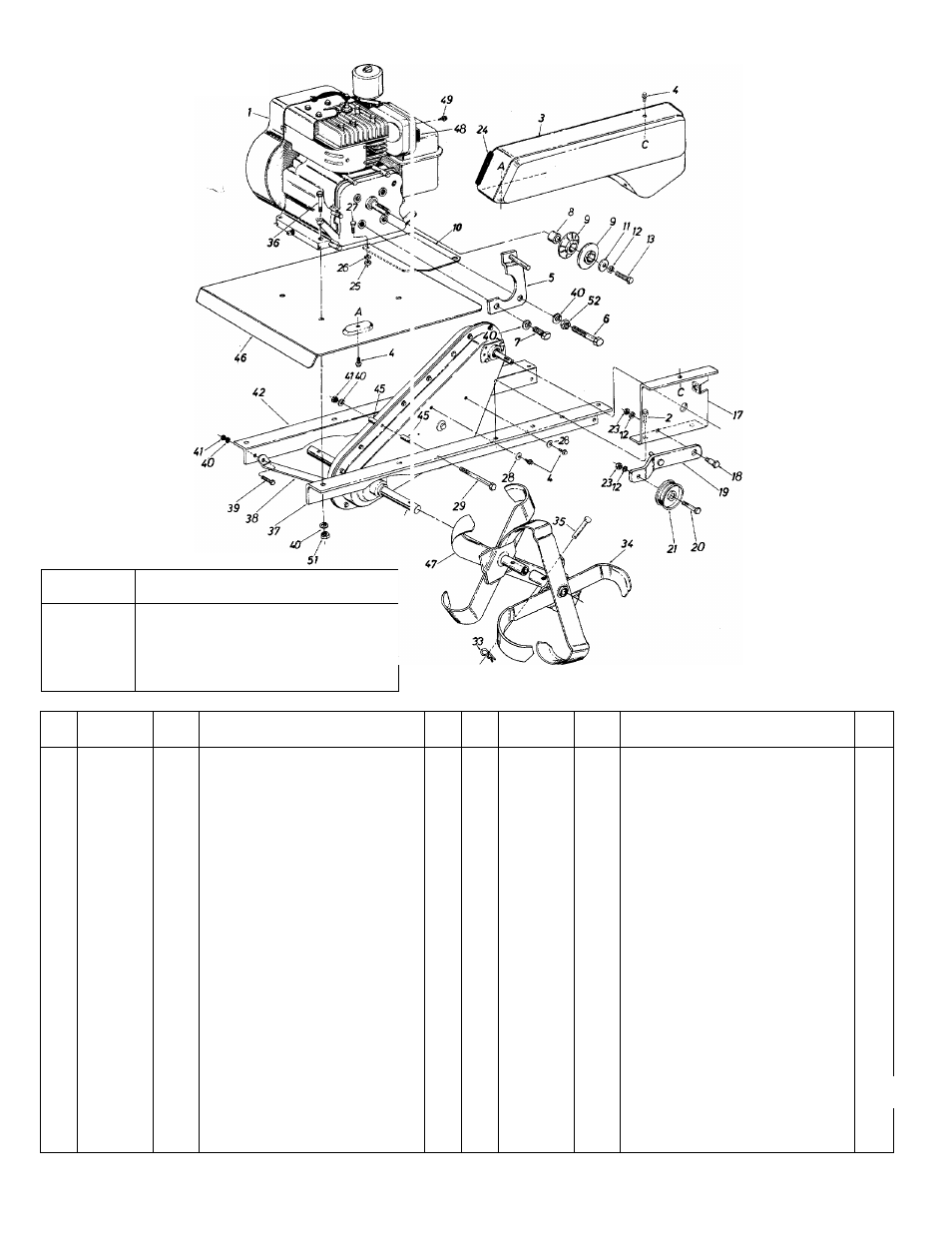

PARTS LIS" FOR MODEL 310 TILLER
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1 ___ Engine 25 712-0287 Hex Nut 1 / 4-20 Thd.*
2 710-0600 Hex Self-Tap Scr. 5/16-24 x 26 736-0329 L-Wash. 1 / 4 " I.D.*
.5" 27 710-0258 Hex Bolt 1 / 4-20
X .62 Lg.*
3 04958 463 Belt Cover 28 736-0270 Bell-Wash. .26 I.D. x .75 O.D.
4 710-0599 Hex Self-Tap Scr. V4-20 x .5' 29 710-0189 Hex Bolt 5/16-18 X 3" Lg.*
5 784-0114 Belt Keeper Brkt. Ass’y. 33 714-0149 Hairpin Cotter
6 710-0593 Hex Bolt 5/16-24 x 2.25" Lg. 34 — See Tine Chart
(Gr. 5) 35 1545-029 Clevis Pin
7 710-0237 Hex Bolt 5/16-24 x .62" Lg. 36 710-0442 Hex Bolt 5/16-18 X 1.5" Lg.*
(Gr. 5) 37 04949 463 Frame Rail—L.H.
7 710-0121 Hex Bolt V 2-20 Thd. (Special 38 04933 Front Brace Brkt.
8 750-0345 Spacer 39 710-0118 Hex Bolt 5/16-18 X .75" Lg.*
9 748-0282 Pulley Half 40 736-0119 L-Wash. 5/16" I.D.*
10 784-0265 Tine Shield Extension 41 712-0158 Hex Cent. L-Nut 5/16-18 Thd.
11 736-0258 FI-Wash. 3/8" I.D. x 1.25" 42 04948 463 Frame Rail—R.H.
12 736-0169 L-Wash. 3/8" I.D.* 45 750-0470 Spacer
13 710-0152 Hex Bolt 3/8-24 x 1.00" Lg. 46 784-0001 Tine Shield
17 04934 463 Idler Mounting Brkt. 47 — See Tine Chart
18 738-0322 Shid. Bolt 48 751-0233 Deflector
19 784-0027 Idler Bracket Ass’y. 49 710-0783 Hex Self-Tap Scr. #8-32
20 710-0344 Hex Bolt 3/8-16 X 1.5" Lg. X .38" Lg.
21 756-0137 Idler Pulley 51 712-0267 Hex Nut 5/16-18 Thd.*
23 712-0342 Hex Jam Nut 3/8-16 Thd. 52 712-0123 Hex Nut 5/16-24 Thd.*
24 731-0511 Trim Strip—3"
18
