MODELS 12068, 12069, 12070, 12071, 12087, 12087C, 12088, 12088C, 12089, 120890,12090, 12090C

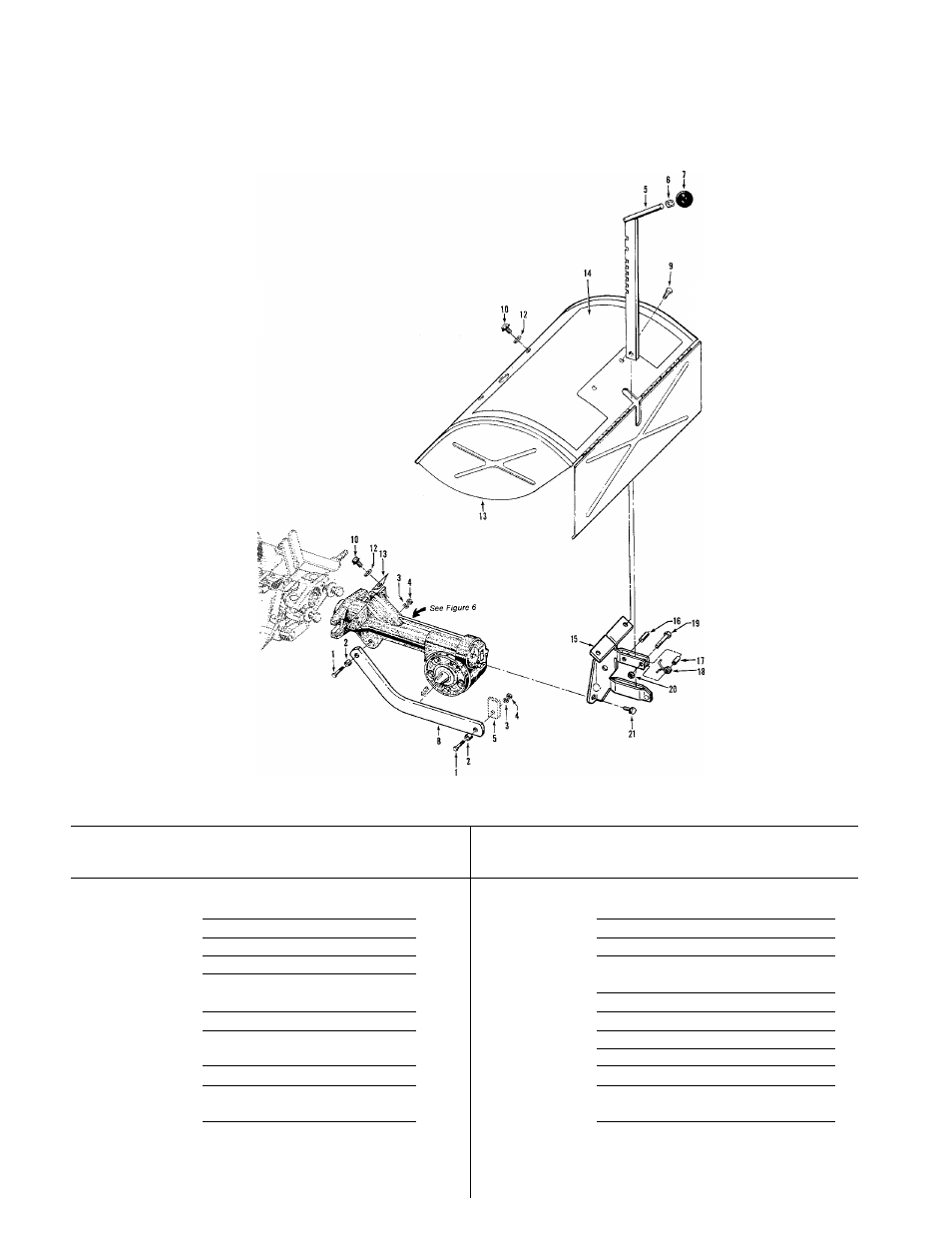

DEPTH REGULATOR & TINE HOOD ASSEMBLIES
(Figure 4)
REF
No. PART
No. DESCRIPTION QTY.
REF
No. PART
No. DESCRIPTION QTY
1 1100043 Bolt-hex hd., 3/8-16 x 1-1/4"...... . 2 11 This Ref. No. not used.................
2 1113-1 Bushing-19/64“ (.300“ Ig.)......... . 2 12 9929 Washer-flat, 5/16"...................... 2
3 1100243 Lockwasher-spring lock, 3/8“...... . 2 13 1904563 Hood-(incl. Ref. No. 14).............. 1
4 1186231 Nut-hex, 3/8"-16........................ . 2 14 1904543 Decal-hood, operating instructions. 1
5 1117A Bar-depth regulator (incl. Ref. 15 2527 Bracket-(incl. Ref. No. 16)........... 1
No.’s 6 and 7)........................ . 1 16 9308 Pin-roll (spirol) 1/4" X 1" .................. 1
6 9120 Ring-retaining............................ . 1 17 9534 Spacer........................................ 1
7 9119 Knob-depth regulator (incl. Ref. 18 9384 Spring........................................ 1
No. 6).................................... . 1 19 1100069 Bolt-hex hd., 1/4-20x1"............... 1
8 1900867010 Bar-drag, depth regulator........... . 1 20 9811 Locknut-1/4"-20......................... 1
9 9552 Screw-thread-forming, 21 90038 Bolt-flanged hex hd..
1/4-20x1/2"............................ . 2 5/16-18x5/8"........................... 2
10 1186329 Bolt-flanged hex hd..
6
5/16-18x3/4”.......................... . 2
