MODELS 12068, 12069, 12070, 12071, 12087, 12087C, 12088, 12088C, 12089, 120890,12090, 12090C

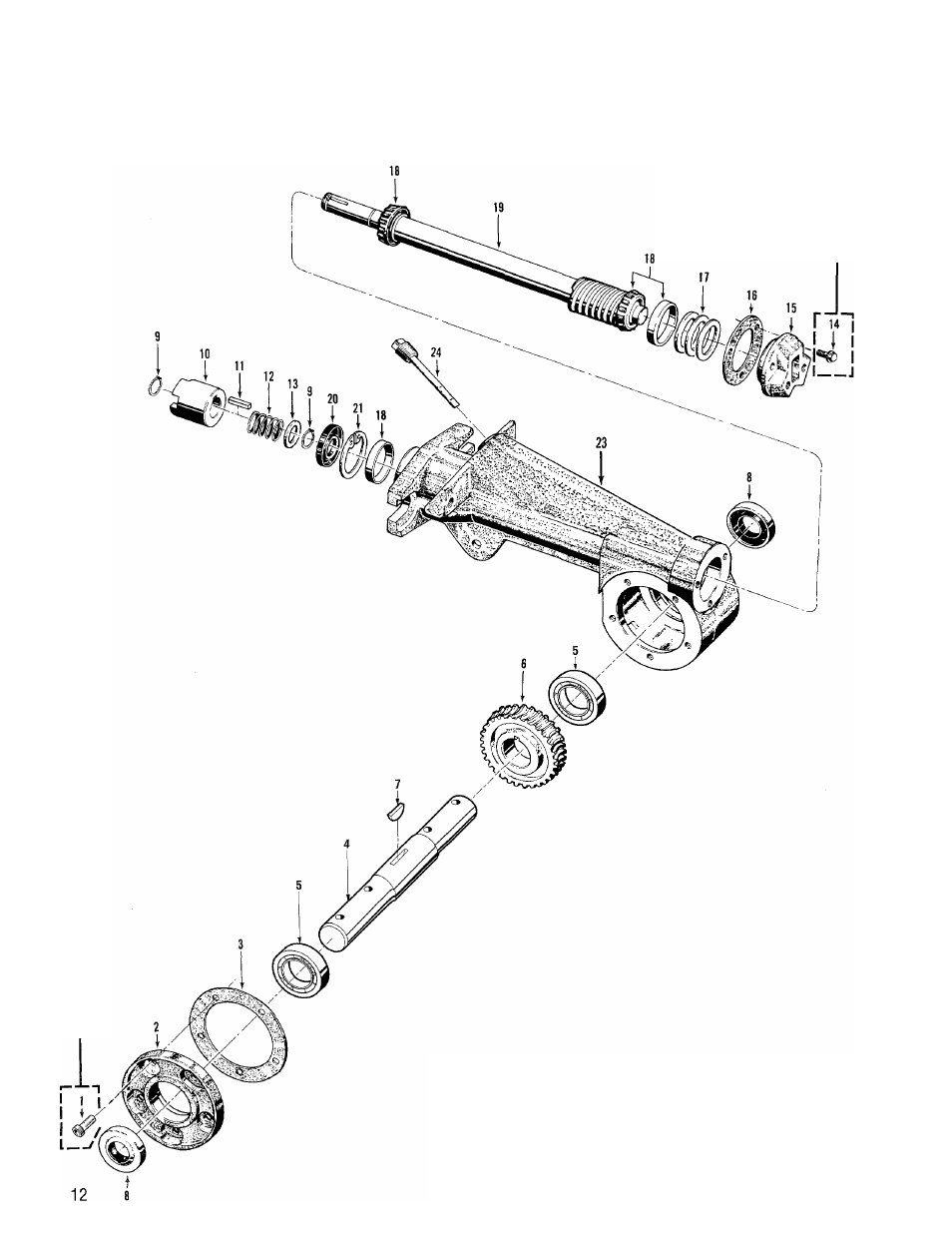

TILLER ATTACHMENT TRANSMISSION ASSEMBLIES

(Figure 7)

See Note 1

NOTE 1; THESE SCREWS HAVE A SPECIAL SEALING RESIGN

THAT CAN N01 BE REUSEO WITHOUT RISKING THE

LOSS OF TRANSMISSION OIL. IF THESE SCREWS

ARE LOOSENED OR REMOVED, THEY MUST BE

REPLACED WITH NEW HARDWARE.
