Troy-Bilt 12087-7HP - Manual (Page 23)

MODELS 12068, 12069, 12070, 12071,12087, 12087C, 12088, 12088C, 12089, 120890,12090, 12090C

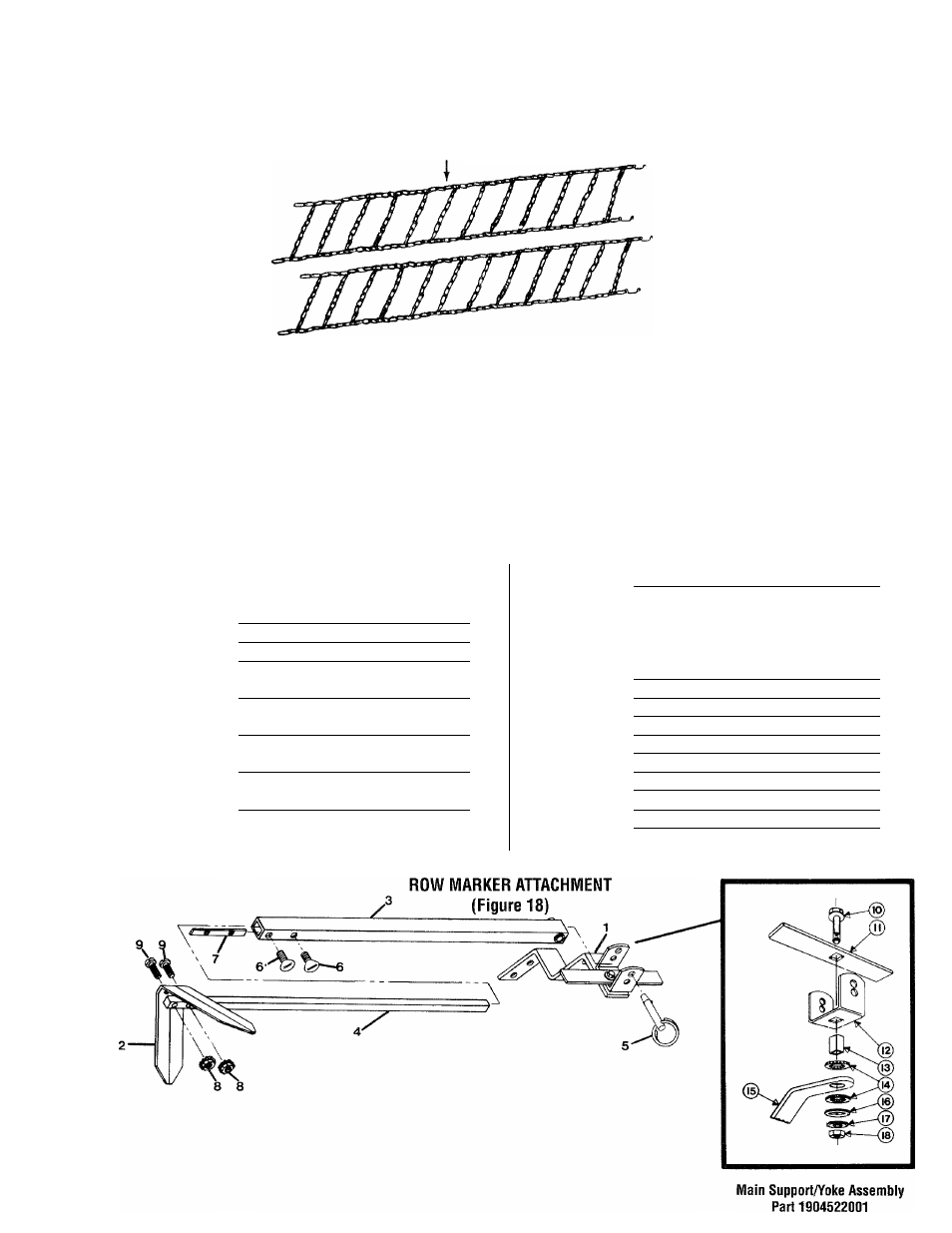

TIRE CHAINS
(Figure 17)
REF
No. PART
No. DESCRIPTION QTY.
TIRE CHAINS (Figure 17)
9146 Chains-tire, heavy-duty steel. For
standard, tread or bar tread tires.
Two chains in a set................. 1
ROW MARKER ATTACHMENT Part #12589 (Figure 18)
(Complete - attaches to #12578 Furrower Attachment)
1 1904522001 Main Support & Yoke Assy- #1832 Row Marker................. 1
complete (incl. Ref. No. 10
through 18)............................ 1 ROW MARKER MAIN SUPPORT & YOKE ASSEMBLY
2 1594 Marker blade-blade only............. 1 (Part #1569)
3 1904524001 Marker arm-main arm................ 1 10 90047 Bolt-flanged, self-iocking,
4 1904523001 Marker arm-extension arm with 3/8-16x1-1/2”........................ 1
stop pin................................. 1 11 1593 Stop Bar................................... 1
5 9347 Hitch Pin-inci. in #1837 hardware 12 1592 Yoke......................................... 1
package................................. 1 13 1591 Tube Key-square....................... 1
6 9786 Thumbscrew-1/4-20 x 1/2", inci. in 14 1590 Washer-friction.......................... 1
#1837 hardware package....... 2 15 1588 Main Support............................ 1
7 1596 Nut Bar-incl. in #1837 hardware 16 1589 Washer-square hole................... 1
package................................. 1 17 9925 Washer-disc spring.................... 1
8 9828 Nut-hex, #10-24 with star washers 18 1186231 Nut-hex, 3/8“-16....................... 1
(incl. in hardware pkg. #1837). 2
REF
No. PART
No. DESCRIPTION QTY.
1100135 Screw-round hd., #10-24 X 1 (inch
in hardware, pkg. #1837).......
1837 Hardware Pkg-incl. one each Ref.
No., and No. 7, and two each Ref.
No.’s 6, 8 and 9.....................
1850 Row Marker & Hiller/Furrower
Attachment Combination-complete
Incl. #2638 Hiller/Furrower &
