TRACTOR ASSEMBLY STEPS
If your tractor has not been as­
sembled and prepared by an
Authorized Dealer, use the in­
structions that follow to complete
the assembly and preparation
steps that must be taken prior to
starting and using your new
Suburban tractor.
The assembly procedure is
straightforward and requires mini­
mal tools and mechanical skills.
We urge you to have an assistant
present during the assembly to
make the assembly steps safer
and easier for you. Of course, if
your tractor has already been as­
sembled and prepared, you can
ignore the steps in Section 2 and
proceed directly to Section 3
which gives you important infor­
mation about Controls.
Step 1: Check Shipping Carton Contents for Assembly Parts
Numbers below cross-reference
with parts shown in Figure 2-1,
Figure 2-2 and Figure 2-3.

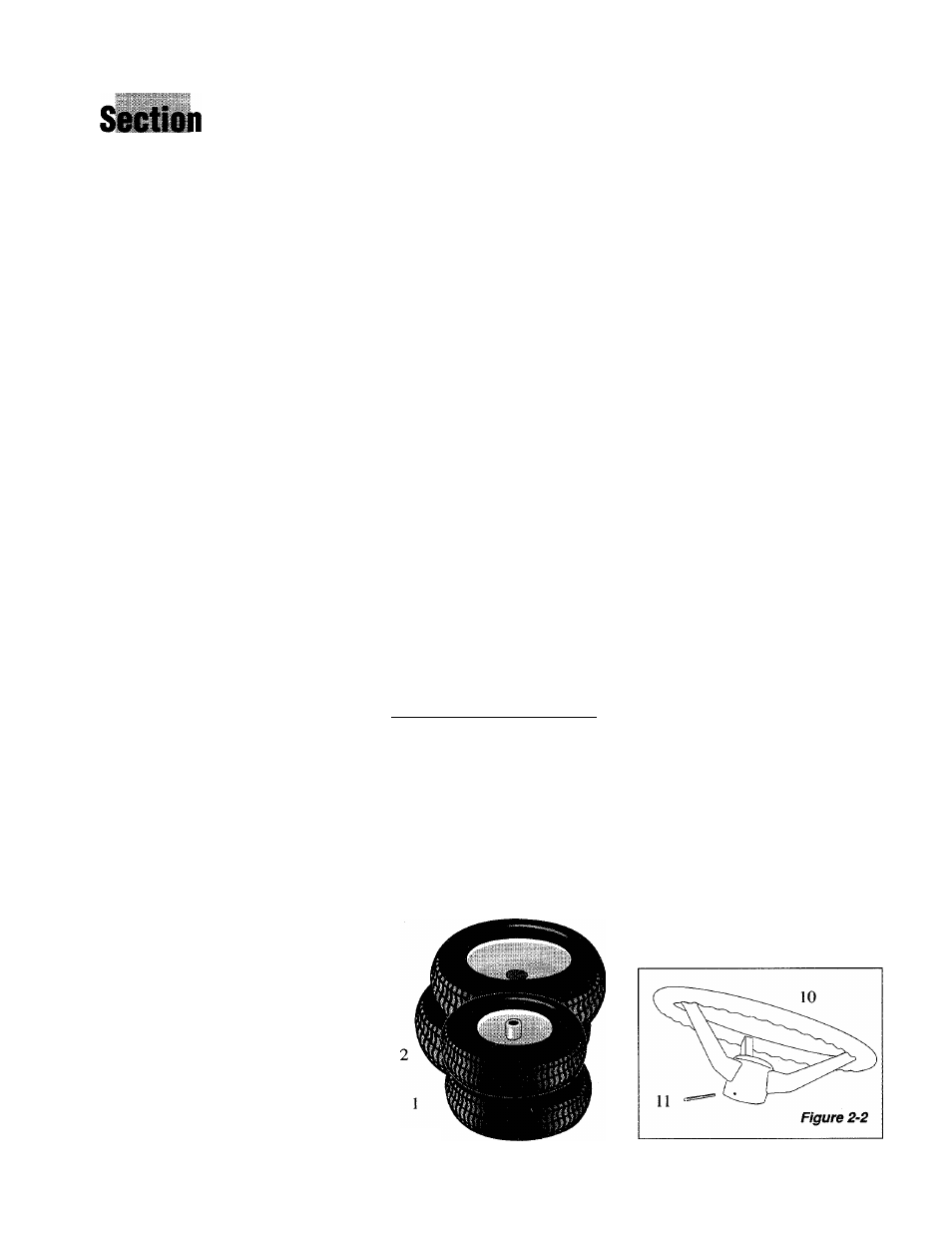

Wheels and Wheel Hardware:
3 5
ii
4
QIO
1
1#’^^
©@@@
„ oo
@@
^
oo
9
Figure 2-1
1. Two Front Wheels (15 x 6.00-6).
2. Two Rear Wheels (20 x 8.00-
8 ).
3. Two long Hub Caps.
4. Two short Hub Caps.
5. Ten Flat Washers-1" x 2".
6. Four Flat Washers-3/4" x 1-3/8".
7. Two Square Keys.
8. Four Retaining Rings— two 1"
and two 3/4".
9. Two Flat Washers— 1" x 1-1/4".
Not Shown is the Ignition Key.
Steering Wheel and Hardware:
10. One Steering Wheel.
11. One Roll Pin (for steering wheel).
10
