Raise the needle bar to its highest point by turning the hand wheel toward you.
Open shuttle cover.
1) Take out the bobbin case.
2) Unlock the shuttle race holder.
3) Release the shuttle race cover.
4) Take out the shuttle hook
Clean dust and gummed oil off each part with an oiled cloth. When finished
cleaning, reassemble reversing the above procedure.

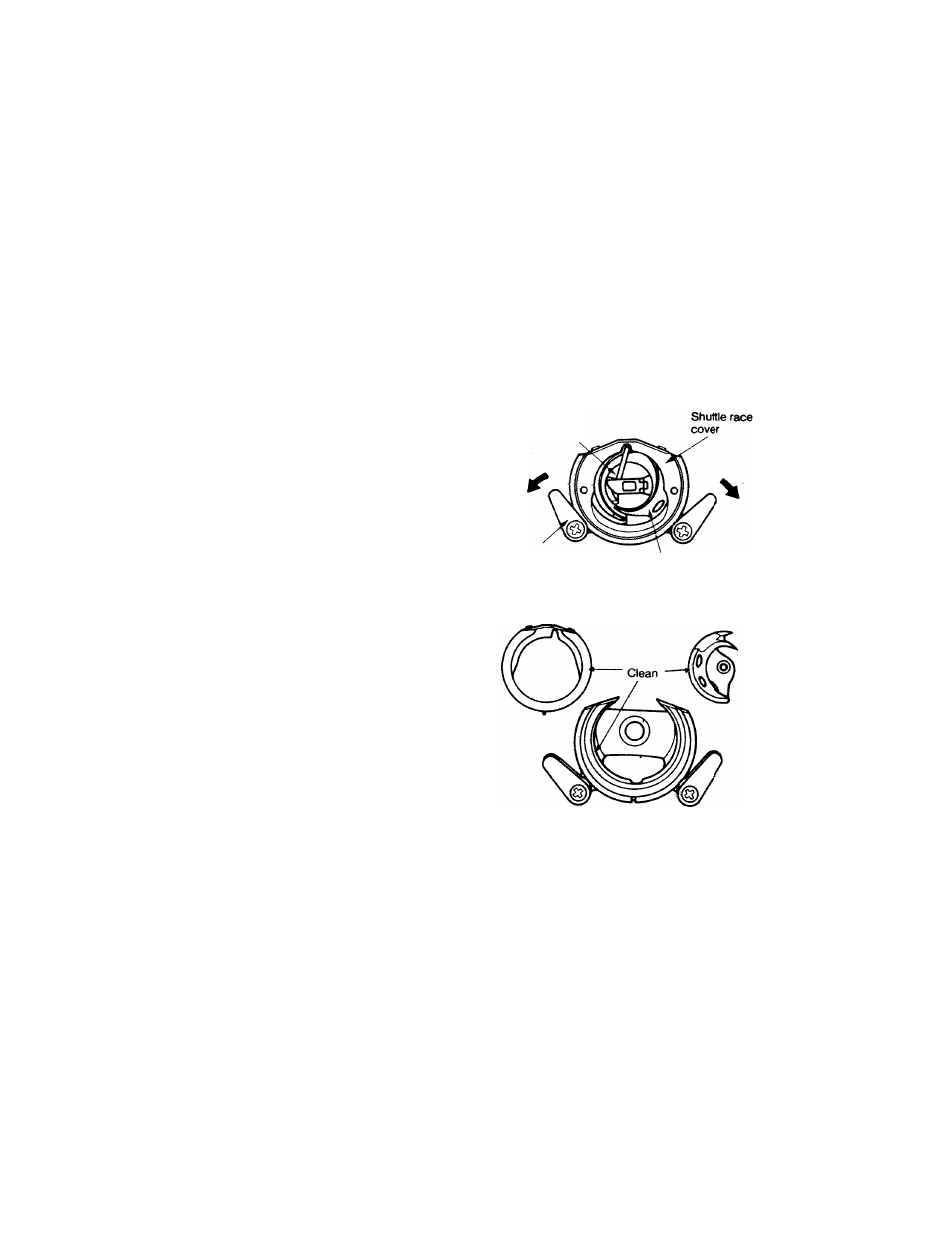

CLEANING OF RACE AND SHUTTLE HOOK
Bobbin case
Shuttle race
holder
Shuttle race cover
Shuttle hook
Shuttle hook
26
-
