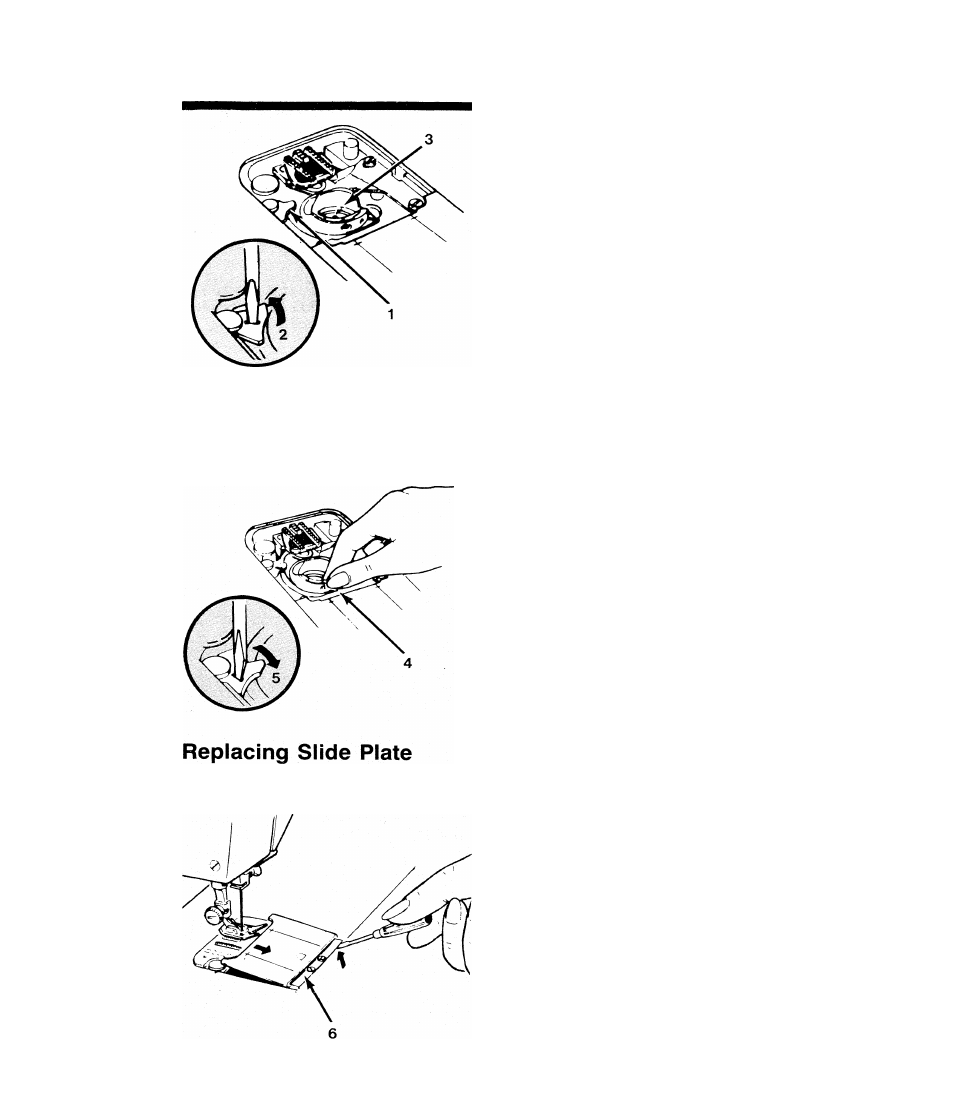

Removing Bobbin Case
^
Remove needle and needle plate.
^ Open slide plate and lift out bobbin.
^ Using small screwdriver, turn bobbin case
retainer (1) in direction of arrow (2) as far as it
will go.
^
Lift out bobbin case (3).
Using soft brush, brush lint from case and other
mechanical parts in the bobbin area.
Repiacing Bobbin Case
^
Insert case with a back and forth motion
so front of case lies under position plate (4).
^
With small screwdriver, turn bobbin case
retainer in direction of arrow (5) to lock case
in place.
^
Reinsert needle, needle plate, and bobbin and
close slide plate.
Should slide plate become detached, replace as
follows:
^
Place slide plate in slide way with the front
edge close to, but not covering, the retaining
spring (6).
^
With a screwdriver, lift each end of spring
into the side grooves on the underside of the
plate.
Draw plate gently towards you to engage
spring. Then, close plate.
