CLEANING THE MACHINE

Caution: Before cleaning the machine, be sure to disconnect

the power cord from the wall outlet.

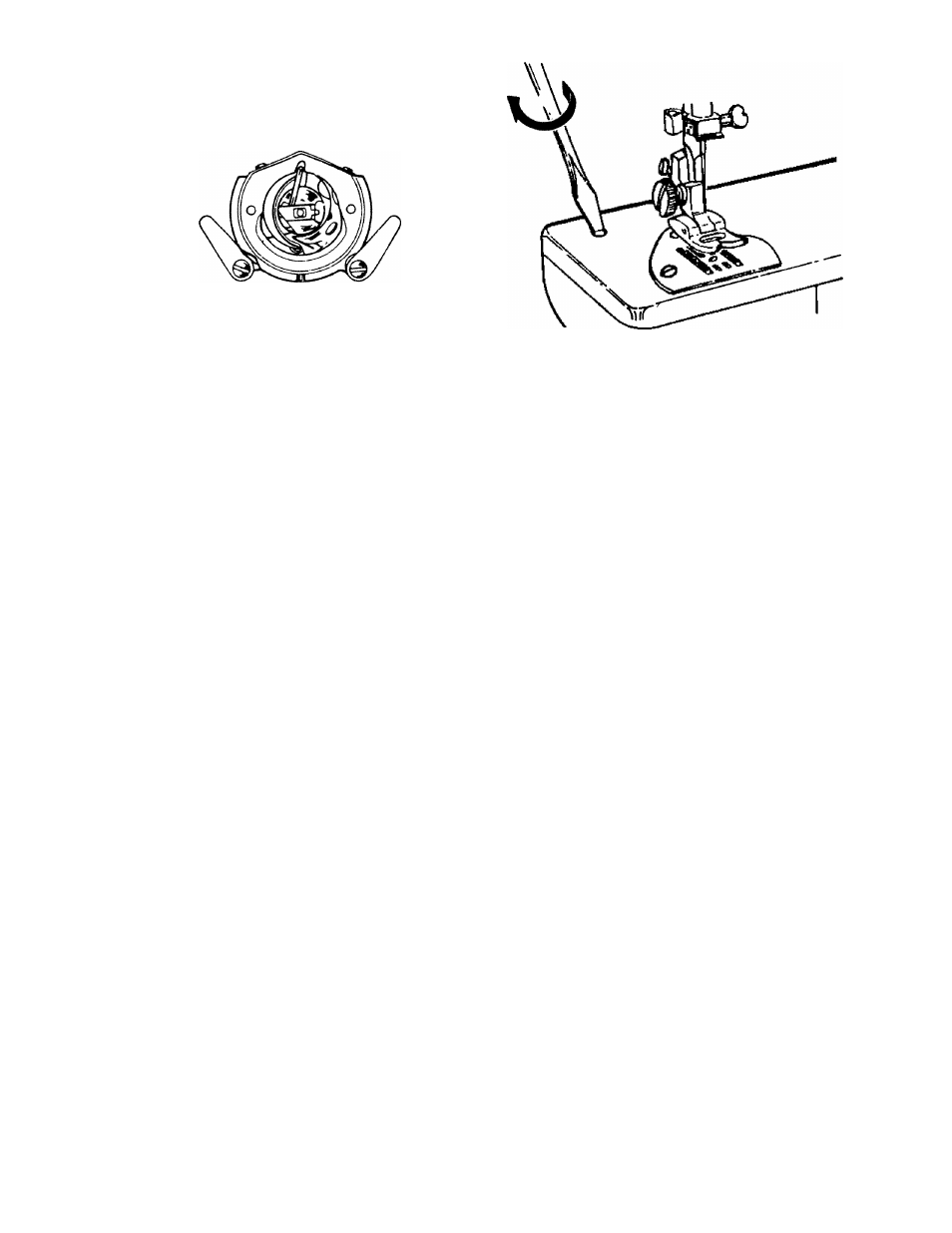

CLEANING AND OILING THE HOOK ASSEMBLY

• Raise the needle bar to the highest position.
• Open the hinged shuttle cover and remove the

bobbin case with bobbin.

• Remove lint or dust with a soft cloth or lint brush.

• Use only the oil in the accessory box.
• Replace bobbin case (See page

for

instructions).

CLEANING FEED DOGS

• Lint or dust accumulated between the needle

plate and the feed dogs must be removed to
maintain good operation of the machine.

• Raise the needle bar to the highest position and

remove the needle and presser foot.

• Loosen screw on the bed cover plate and remove

the plate.

• Clean lint and dust from the bottom of the needle

plate and the feed dogs with a lint brush.

• Turn the hand wheel slowly and be sure to clean

all areas.

• Replace the removed plate.
