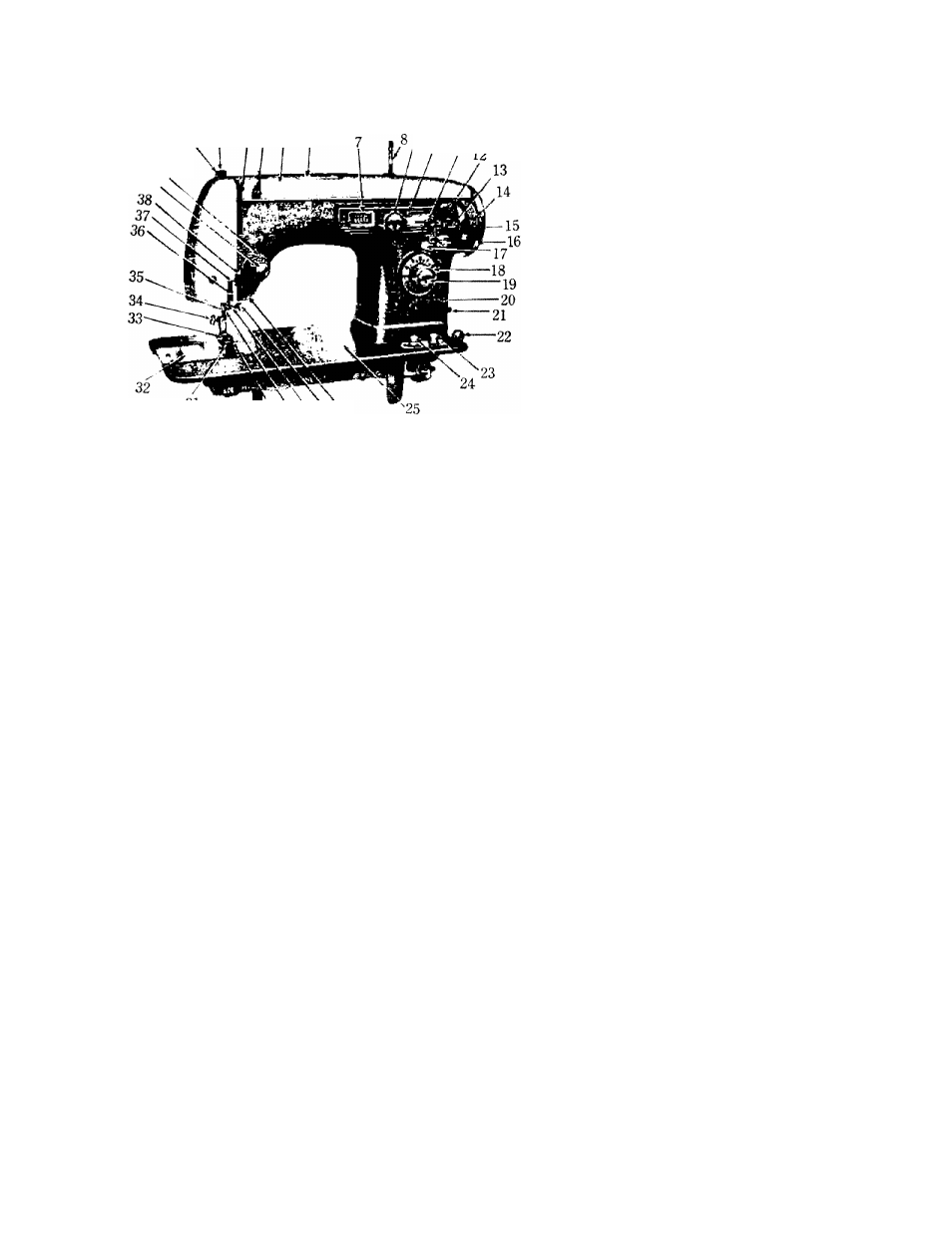

MacJtme.
1 2 3 4 5 6
9 10 11
40
39
10 29 28 27^6
1-2 Pushbutton darner
3 Thread take up lever
4 Upper arm thread guide
5 Arm cover
6 Automatic stitch cam puli lid
7 Zigzag width indicator
8 Spool pin
9 Zigzag width dial
10-11 Zigzag width stoppers
12 Bobbin winder release lever
13 Bobbin winder shaft
14 Bobbin winder push plate
15 Bobbin winder rubber wheel
16 Balance wheel (hand wheel)
17 Pushbutton stitch reverse
18 Stitch length indicator
19 Stitch length dial
20 Vertical arm
21 Sewlight switch knob
22 Bobbin winder thread guide
23-24 Pushbutton drop feed
25 Bed-plate
26 Vertical arm ,
27 Needle clamp screw
28 Needle clamp
29 Needle
30 Needle plate
31 Feed dog
32 Slide plate
33 Hinged presser foot
34 Presser foot thumb screw
35 Presser bar
36-37 Face plate thread guides
38 Thread retainer bar
39 Calibrated thread tension dial
40 Thread take-up spring
