Cleveland Range reserves right of design improvement or modification, as warranted.

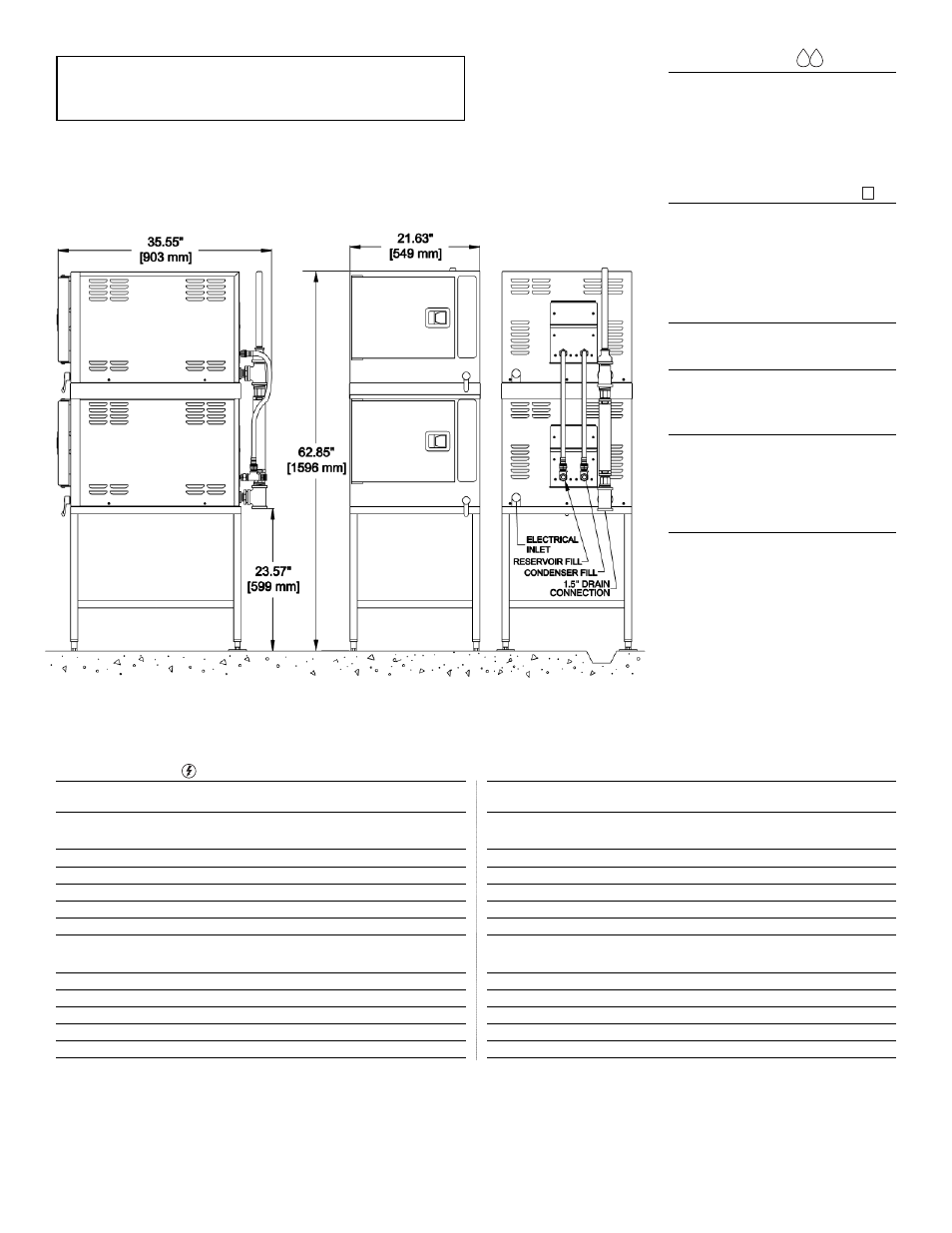

(NOT TO SCALE)
SECT.
B
PAGE
10
0507
Litho in U.S.A.
• Each compartment has capacity for: Three, 12˝ x 20˝ x 21⁄2˝ deep Cafeteria Pans.
• Each compartment has capacity for: Six, 12˝ x 20˝ x 1˝ deep Cafeteria Pans.
• Each compartment has capacity for: Two, 12˝ x 20˝ x 4˝ deep Cafeteria Pans.
COLD WATER **
C-1: Feed water for reservoir, 35 Psi
Minimum, 60 Psi Maximum.
C-2: Drain condenser water, 35 Psi Minimum,
60 Psi Maximum.
Two 3/4" NH-F (Garden Thread) connections.
Use NSF approved hose.
DRAIN CONNECTION **
1.5" NPT-M
Do not connect other units to this drain.
Drain line must be vented. Vented drain
connection included.
Do not connect drain to PVC pipe.
OPERATING CLEARANCES
3" Left, 3" Right and 4" Rear.
SERVICE CLEARANCES
12" on control side. Contact factory for
variances to clearances.
CONTROLS **
SureCook 60-minute electro mechanical timer
with load compensating feature.
Three function control switch for Timed Cooking
and Continuous Steaming.
APPROVALS
UL and
C
UL listed, classified to NSF#4 and
Energy Star
H
D
C C1 C2
H
D
C C1 C2
H
D
C C1 C2
ELECTRICAL **
WATTS VOLTS PHASE WIRES
CYCLE
AMPS
SUPPLY CONNECTION
HERTZ WIRE SIZE (COPPER)*
Standard Wattage
Three Phase - 9 kW Standard
9400 208 3 3 60 26.1 10
7960 220 3 3 60 20.9 10
9400 240 3 3 60 22.6 10
7960 440 3 3 60 10.4 14
9400 480 3 3 60 11.4 14
Optional Low Wattage
Three Phase - 6 kW option
6400 208 3 3 60 17.8 10
5440 220 3 3 60 14.3 12
6400 240 3 3 60 15.4 12
5440 440 3 3 60 7.1 14
6400 480 3 3 60 7.7 14
* For supply connection use only copper wire suitable for at least 75˚C. (167˚F).
** Per unit.
WATTS VOLTS PHASE WIRES
CYCLE
AMPS
SUPPLY CONNECTION
HERTZ WIRE SIZE (COPPER)*
Standard Wattage
Single Phase - 9 kW Standard
9400 208 1 2 60 45.2 6
7960 220 1 2 60 36.1 8
9400 240 1 2 60 39.2 8
7960 440 1 2 60 18.0 10
9400 480 1 2 60 19.6 10
Optional Low Wattage
Single Phase - 6 kW option
6400 208 1 2 60 30.8 8
5440 220 1 2 60 25.0 8
6400 240 1 2 60 26.7 8
5440 440 1 2 60 12.4 12
6400 480 1 2 60 13.3 12
