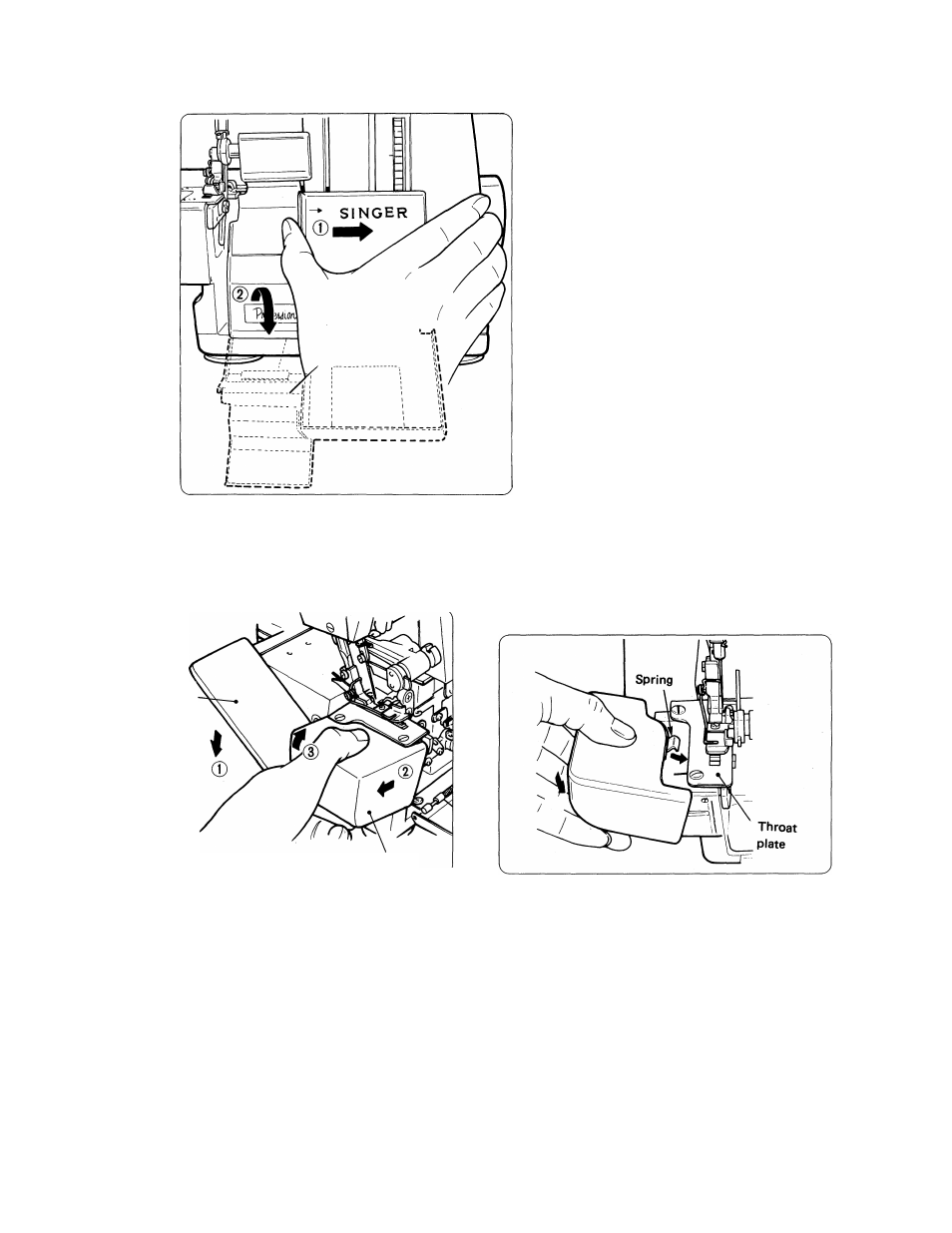

• How to open looper cover
Convertible
bed plate
(1) Push the cover to the right as
far as it will go and
(D Pull cover down toward you.
* Be sure looper cover is closed when sewing.
• How to remove cylinder cover
To replace cover
Cylinder cover
0 Push convertible bed plate down and
@
While pulling the cylinder cover to the left,
(D Lift cover upward and off the machine.
Place the upper spring on the cover under the
throat plate and press cover downward to the
right.
* Be sure to lower the plate.
* Do not hold the cylinder cover when moving the machine.
