10. Adjustment of overedge seam width
The overedge seam width of this machine is set to 3.5mm (9/64 inches) for normal sewing condition, how
ever it can be increased up to 5mm (13/64 inches) for overedging heavy weight fabrics as instructed below.
If any problems arise in making the adjustment, call your Singer representative.
(1) Before making the adjustment, be sure that the power line plug is disconnected from the wall receptacle.
(2) Open the looper cover. (See page 5)

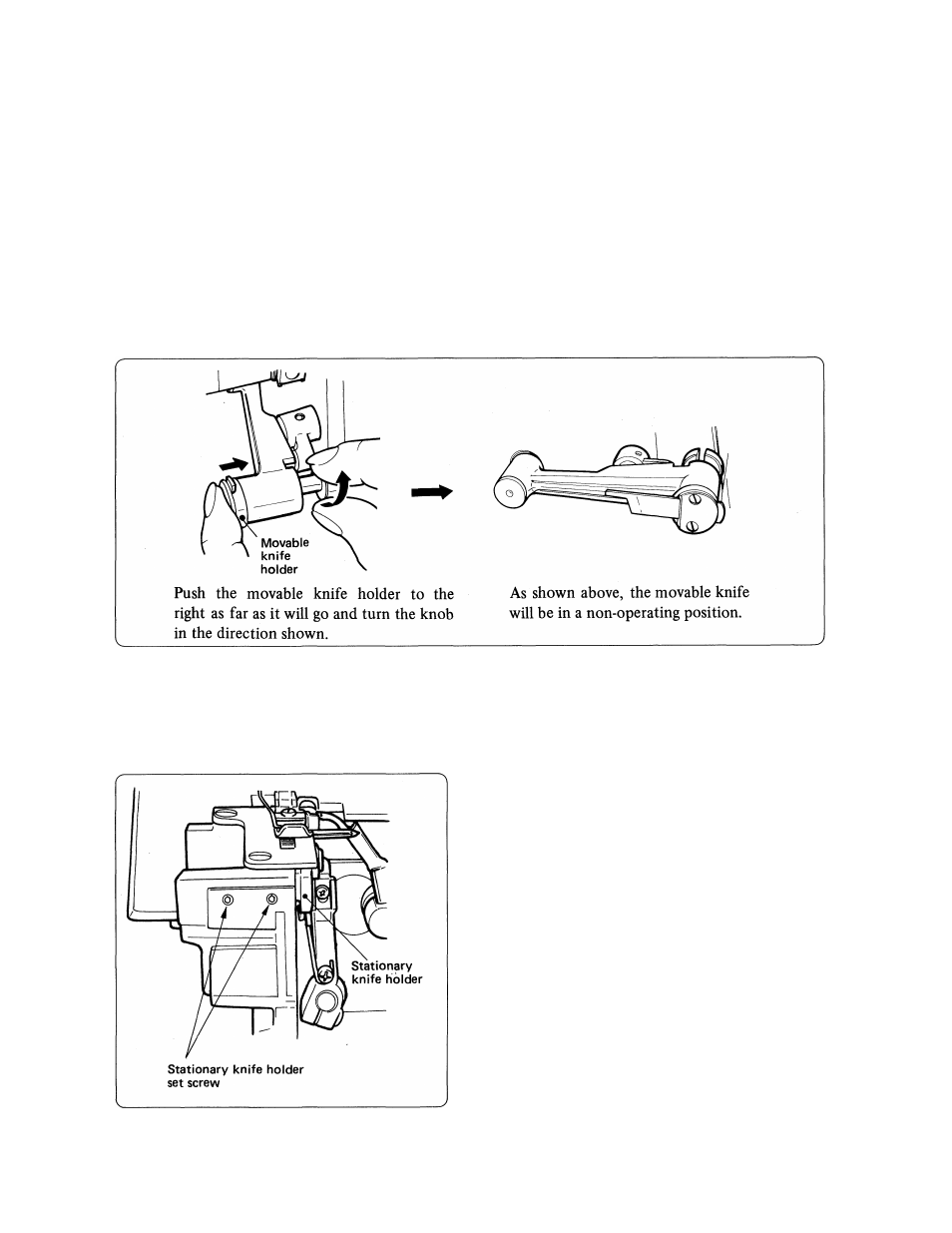

(3) Turn the machine pulley toward you, lower the movable knife as far as it will go and set it in the
nonoperating position as shown in figure below.
(4) Press down convertible bed plate and remove the cylinder cover. (See page 5)
(5) Loosen the 2 stationary knife holder set
screws with the hex-head wrench provided in
the accessories, move the stationary knife
holder to the right or left and tighten the
set screw.
(When a wider seam is desired, move the
holder to the right and when a narrower
seam is desired, move the holder to the left).
Be sure to align the cutting edge of the
stationary knife level with the top surface of
the throat plate.
