SINGER 7110 - Manual (Page 6)

Chapter 2« Getting Ready to Semi
choosing and changing accessories

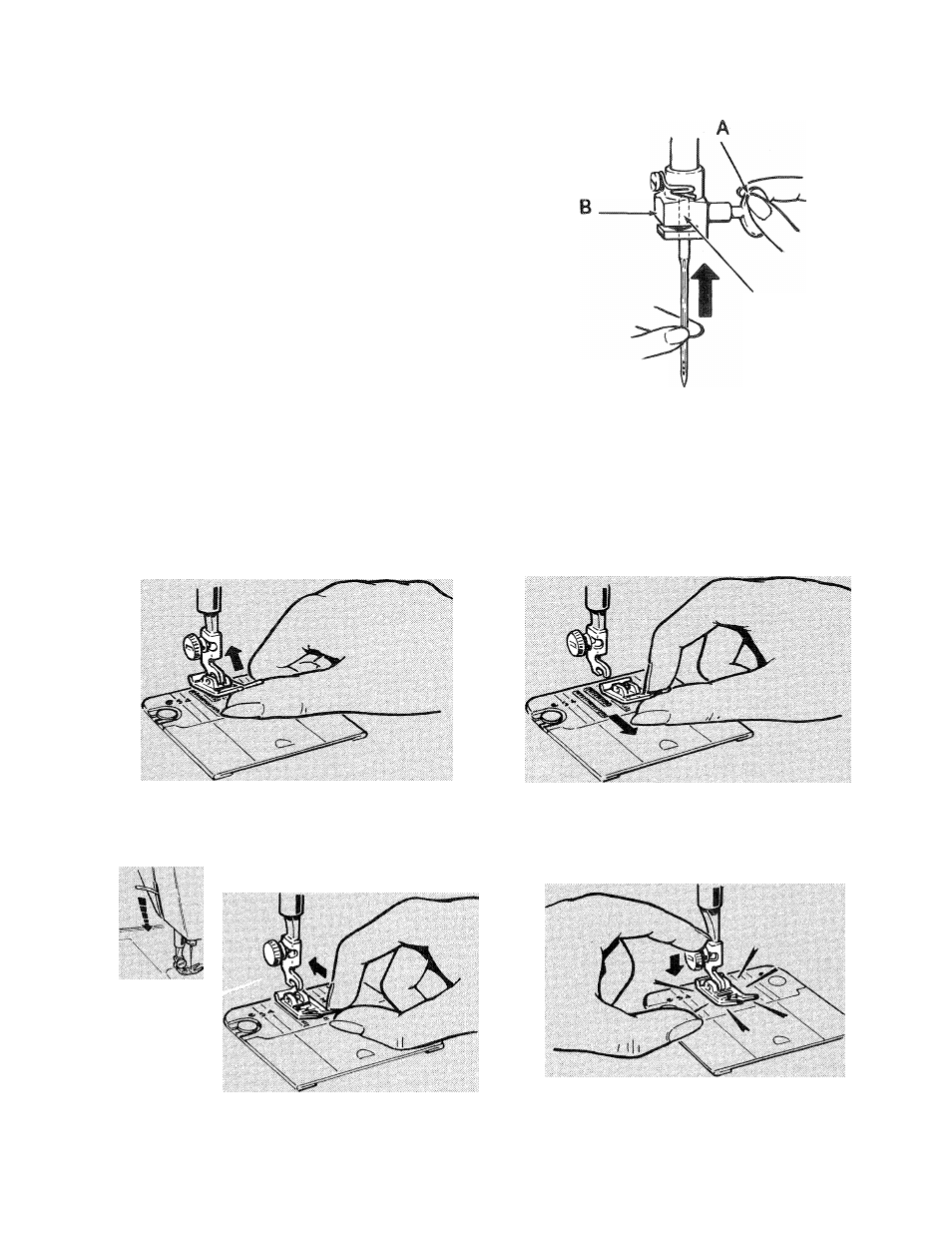

CHANGING THE NEEDLE
® Raise needle to its highest point by turning
the hand wheel toward you. Loosen needle
clamp screw A and remove the needle.
@ Insert new needle up into clamp B as far
as it will go, with the fiat side of the needle
to the back.
® Tighten needle clamp screw.
Flat Side to Back
CHANGING PRESSER FEET
Snap"On Presser Fee!
The presser feet furnished with your machine Raise needle to highest position by turning the
snap on and off a common shank. hand wheel toward you. Raise presser foot.
To Remove and Replace Foot
1a. Press toe of presser foot upward as far as 1b. Then snap down to remove,
it will go.
2. Centre the new presser foot under the shank 3. Press presser foot screw down firmly until
C and lower the presser foot lifter so that foot snaps into place,
the shank fits over the presser foot pin.
