FROM SHUTTLE

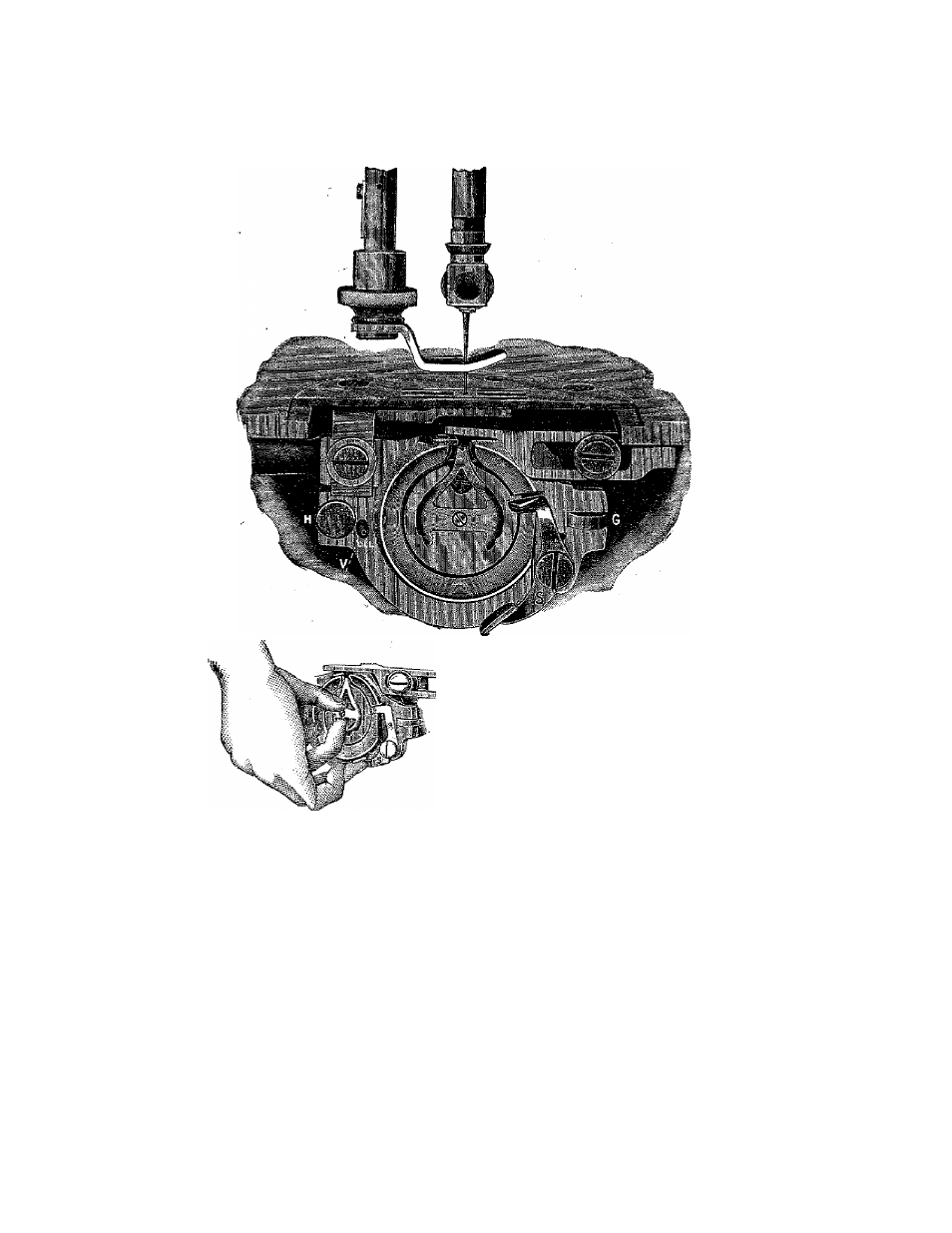

Eaise the take-up to its highest
point. With the thumb and sec
ond finger of left hand clasp bob
bin case as shown in cut, then lift
latch
S
with the third finger, when
bobbin case may be readily with
drawn from shuttle
F.
See page 5.
TO REMOVE SHUTTLE FROM SHUTTLE RACE
First remove the bobbin case. Turn the machine back on its
hinges, then, turn the machine in the same direction as in sewing
until the point of the needle just enters the needle plate hole;
push on rear end of latch
G
and at the same time pull shuttle
race cover away from shuttle and toward latch
G
from under pin
H; the shuttle can now be removed.
When shuttle has been removed from race be sure to clean
both and oil the race slightly before replacing. Occasionally oil
slightly in hole on race cap marked
V
above and pin
W
in
shuttle, see page 5, fig. 9.
