I H S T B l l A T I O N

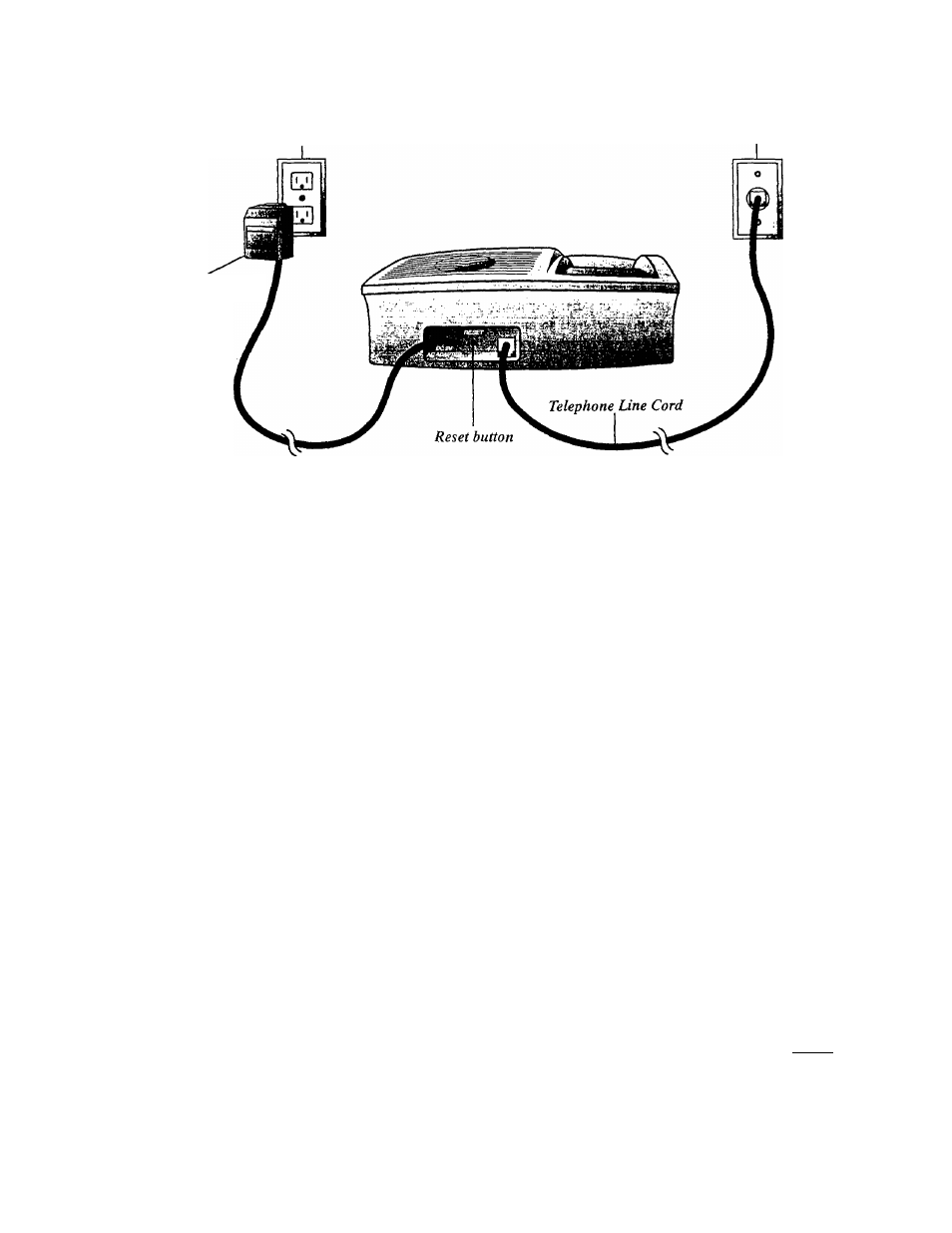

Standard AC Outlet Modular Wall Jack
AC Adapter
TABLE INSTALLATION
Choose a spot near an electrical
outlet and a telephone jack.
••This phone requires a modular
telephone jack and a standard
electrical outlet (1 lOV AC).
• The outlet should not be con­
trolled by a wall switch; if the
switch is turned oif, the phone will
not operate.
Install the handset battery.
••Remove the battery case cover on
the handset by pressing on the
indentations and sliding the cover
downward.
••Plug the battery pack cord into the
handset and rest the cords on top
of the battery pack.
••Replace the cover by sliding it
on its track up over the banery
compartment until it snaps
firmly in place. (For an illustra­
tion of battery installation, see
"BATTERIES.")
Install the base battery.
••Turn the unit over.
••Open the battery cover by gently
pulling on the movable tab,
••Connect the 9-volt battery and
place it in the compartment.
••Close the battery cover.
Set the dial mode switch on the
bottom of the base to TT if you have
touch tone service, or DP if you
have dial pulse/rotary service.
Set the ringer switch.
Set the switch to ON (the handset
will ring) or OFF (the handset will
not ring).
Connect the telephone line cord.
Plug one end of the telephone line
coru into ihe jack on me top side
of the base. Plug the other end of
the line cord into a modular jack.
Make sure the plug snaps firmly in
place.
7 Plug in the power cord.
Plug the AC adapter on the power
cord into an electrical outlet.
NOTE: When you connect the unit to
an electrical outiei. the system automati­
cally besins to format (initialize)
digital memory. The memory format
routine takes approximately S seconds.
While the system formats memory, the
.VIessage Window counts down from S
to 0.
8
Charge the handset batteries for
4 hours.
Place the handset in the base. The
CHARGING light on the base
goes on to show the handset is in
the right position to charge the
DcUtcncs.
9 Check for dial tone.
After the batteries are charged,
pick up the handset and extend the
base antenna. Press T
hone ; the
PHONE light should go on and you
should hear a dial tone.
