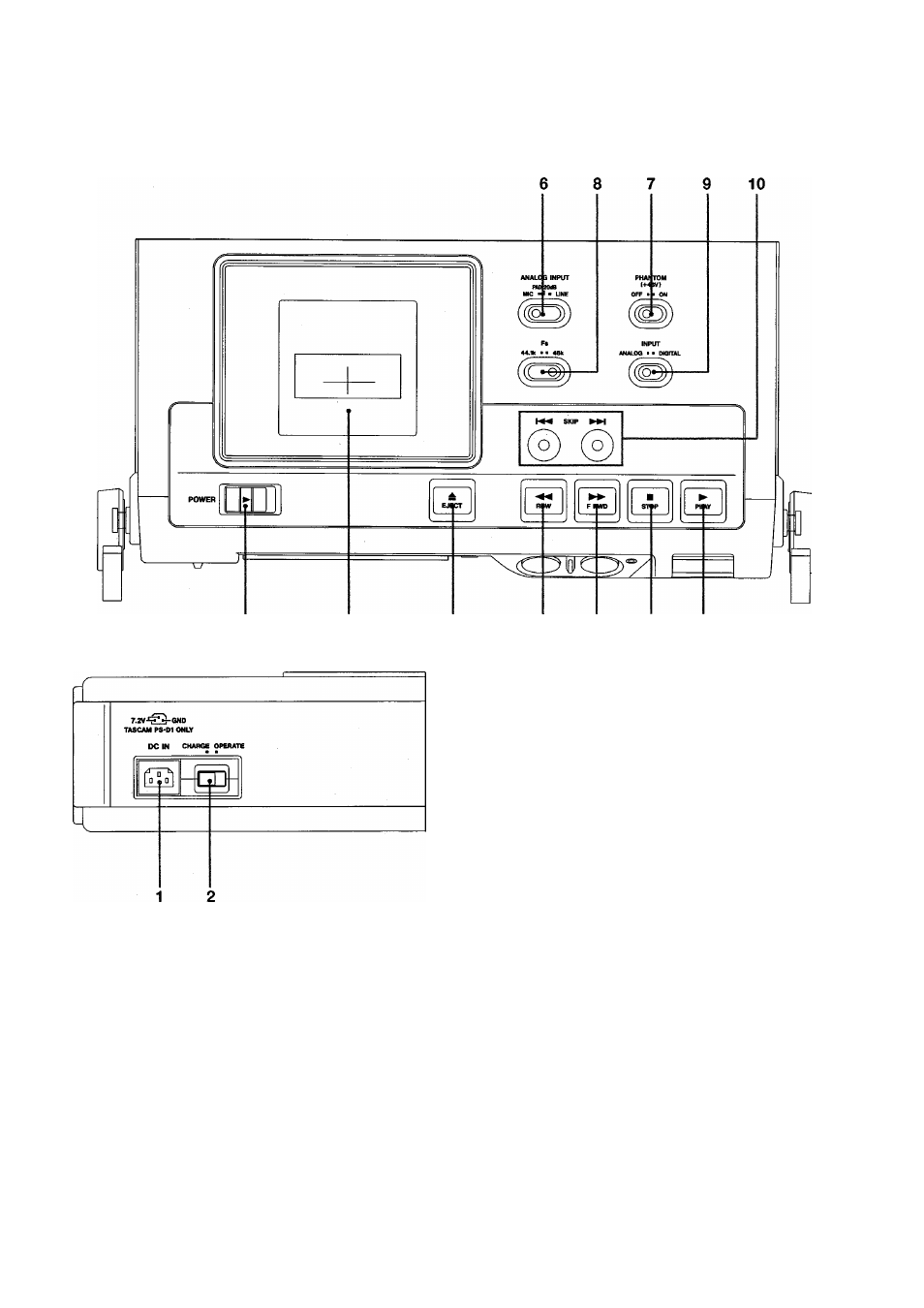

Features and Controls

Left Side Pane!

Top Pane!

1. DC IN connector

For connection to the provided PS-Dl adaptor only.

2. OPERATE/CHARGE select switch

Set to OPERATE for the deck to be operated (using
AC current or battery), or CHARGE for charging the
battery.

NOTE

If this switch is NOT set to OPERATE, all other

switches and buttons cannot operate.

3. POWER switch

Slide to the right to switch on power to the deck.

If you do so while holding down STOP (when the

deck is battery powered), the Auto Power Off feature

(p.6) is defeated.

4. Cassette holder

For loading DAT cassettes only. Conventional audio

cassettes are not accepted.

5. EJECT button

Press to open the cassette holder. Effective only when
the CHARGE/OPERATE switch is set to OPERATE

and the transport is in STOP or the deck is turned off.

When pressing EJECT, the tape counter (shown or

hidden) is reset to 0000 and the MARGIN reading is

cleared.

6. ANALOG INPUT switch

When using inputs to the MIC/LINE IN XLR
connectors, set to MIC if the source is a mic or PAD

20 dB to attenuate the mic inputs, or set to LINE for

recording from line level sources.

7. PHANTOM (+48V) switch

Set to ON when using phantom powered mics. When
setting the ANALOG INPUT switch to LINE, the

phantom power is automatically switched off.
