blue timer selector to the PM time you want the
house temperature to return to the low setting
1. To remove the timer selectors,
turn the dial counterclockwise
until the selectorto be removed
is at the bottom of the dial (see
fig.
2
).
2. Hold the timer dial securely.
Carefully snap the timer se
lectors off the dial.
3. Turnthedialcounterclockwise
until the desired setback or
setup time is near the bottom
of the dial.
4. Hold the timer dial and snap the timer selec
tors back on the dial at the desired times for
lowering the temperature (BLUE selector)
or raising the temperature (RED selector).
TIME REFERENCE POST
"BOTTOM OF
TIMER
HOLD EDGE OF DIAL WHEN ADDING/REMOVING SELECTORS.

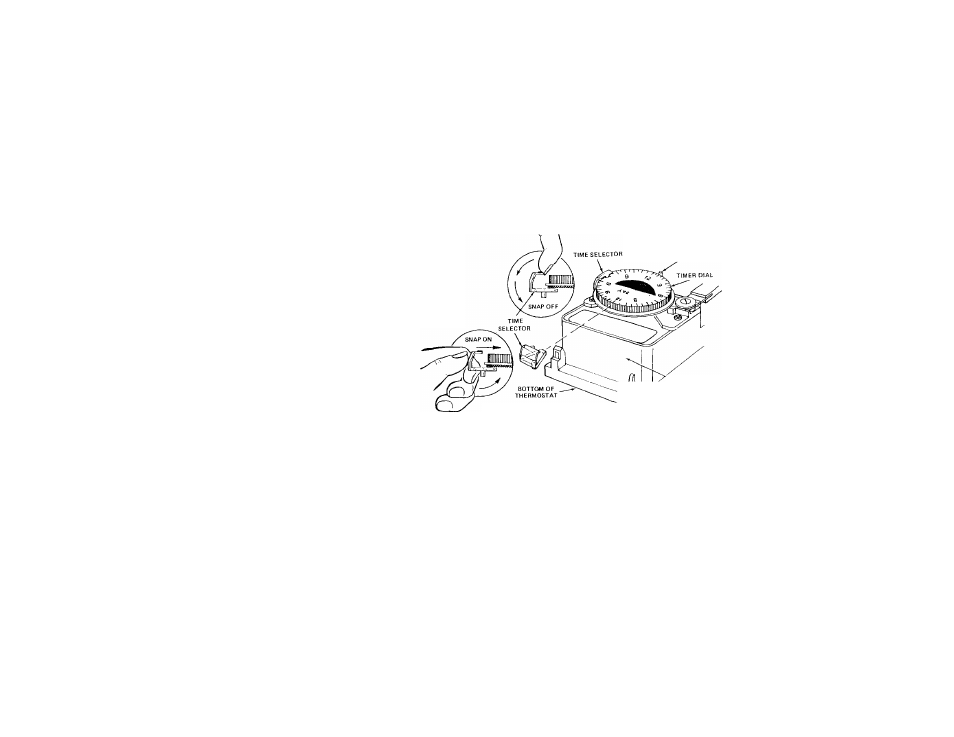

Figure 2. Removlng/replacing timer selectors.
Be sure you have selected the proper AM or
PM setting.
