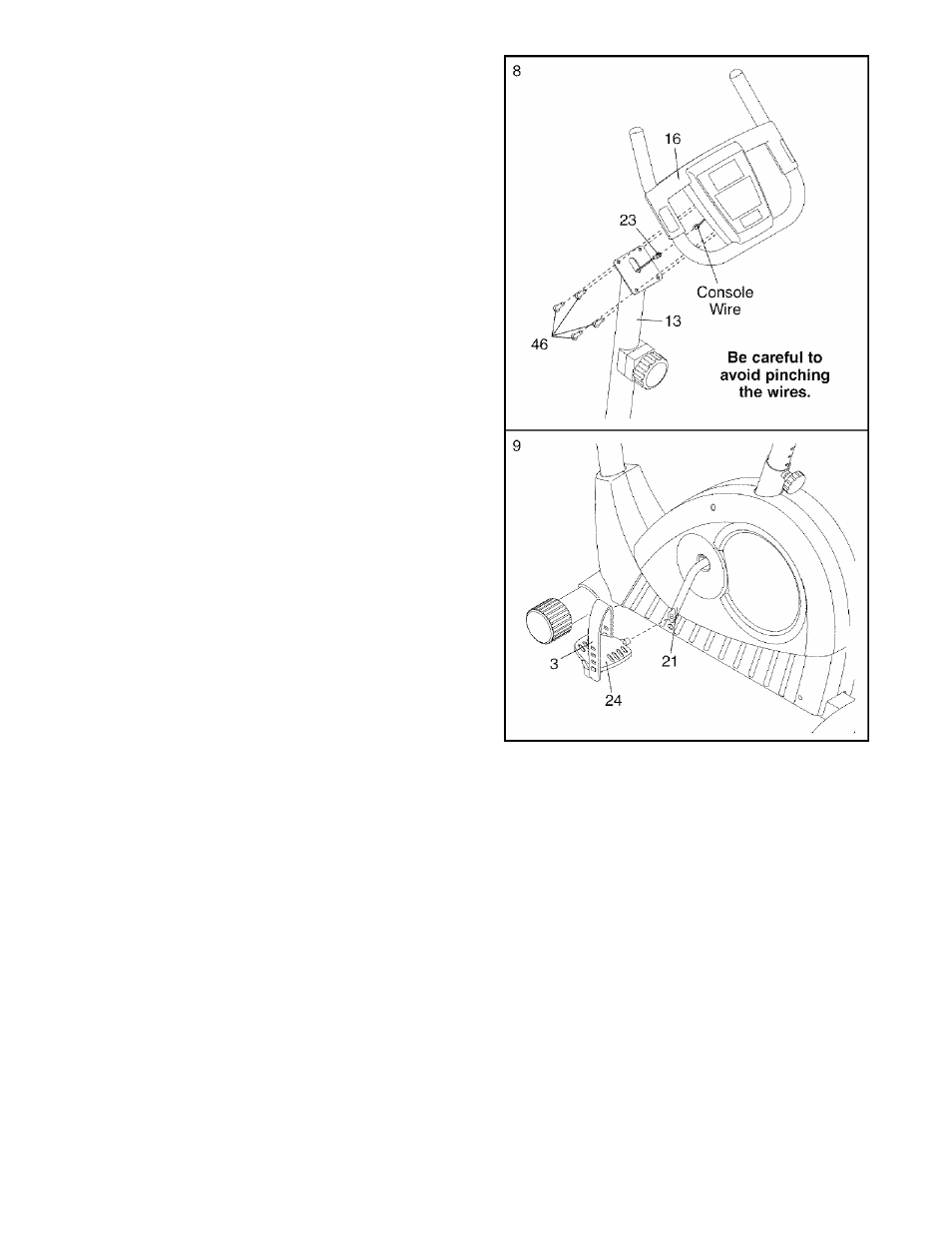

8. While a second person holds the Console (16) near
the Upright (13), connect the console wire to the
Extension Wire (23). Then, insert the wires down
ward into the Upright.
Attach the Console (16) to the Upright (13) with four
M6 X 15mm Button Screws (46).
Be careful to
avoid pinching the wires.
9. Identify the Left Pedal (24), which is marked with a
“Left" sticker. Using an adjustable wrench,
firmly
tighten the Left Pedal
counterclockwise
into the left
arm of the Crank (21). Tighten the Right Pedal (not
shown)
clockwise
into the right arm of the Crank.
Important: Tighten both Pedals as firmly as pos
sible. After using the exercise cycie for one
week, retighten the Pedais. For best performance,
keep the Pedals tightened.
Adjust a Pedal Strap (3) to the desired position, and
press the end of the Pedal Strap onto the tab on the
side of the Left Pedal (24). Adjust the other Pedal
Strap (not shown) in the same way.
10.Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
