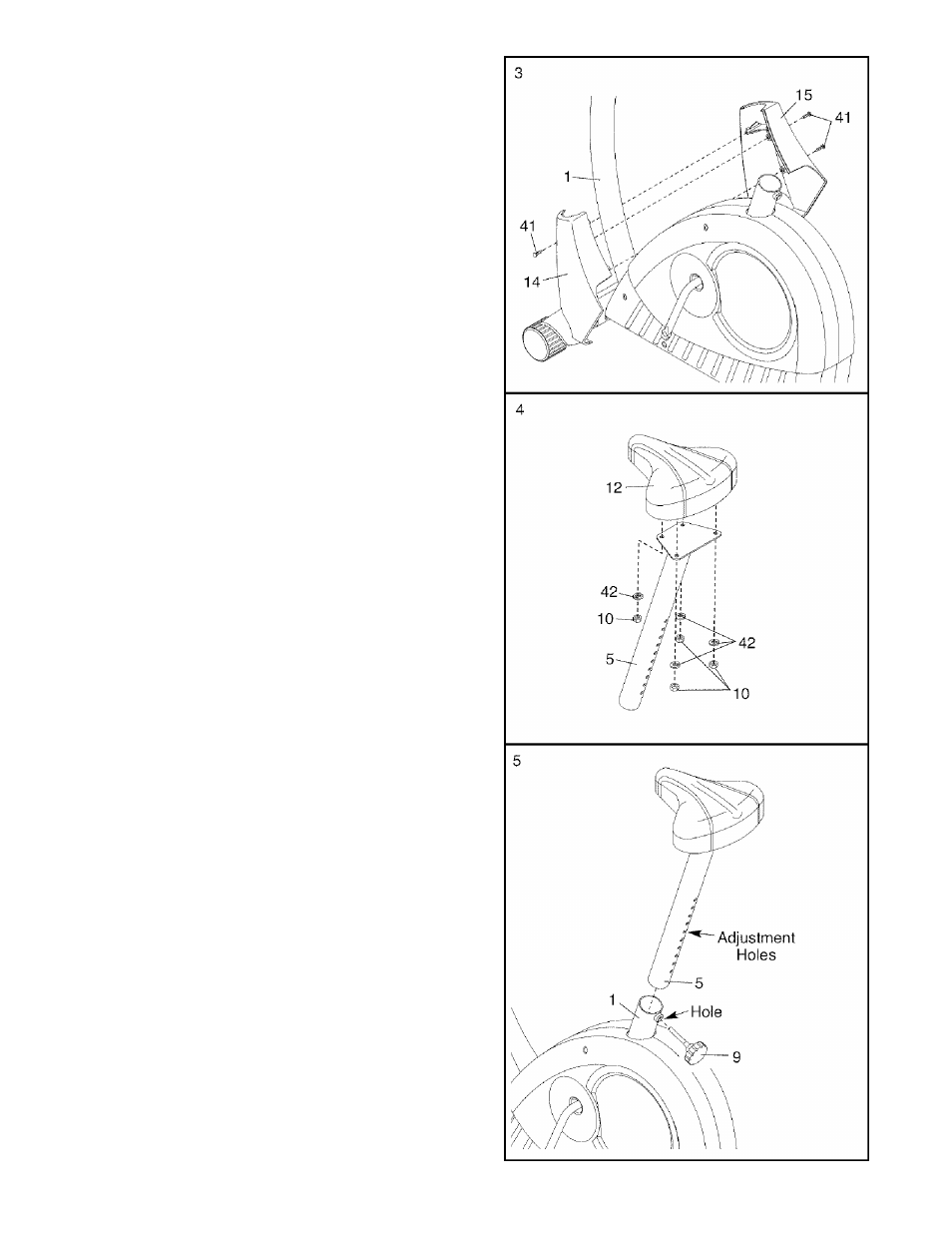

3. Attach the Left and Right Upright Covers (14, 15)
around the Frame (1) with three M4 x 25mm Round
Head Screws (41) as shown.
4. Attach the Seat (12) to the Seat Post (5) with four
MS Split Washers (42) and four MS Nylon
Locknuts (10).
Note: The Split Washers and the
Nylon Locknuts may be pre-attached to the
underside of the Seat.
Turn the Seat Knob (9) counterclockwise and remove
it from the Frame (1). Next, insert the Seat Post (5)
into the Frame. Adjust the Seat Post to the desired
height and insert the Seat Knob (9) through the indi
cated hole in the Frame into one of the adjustment
holes in the Seat Post. Then, turn the Seat Knob
clockwise until it is tight.
Make sure the Seat Knob
is firmly engaged in one of the adjustment holes
in the Seat Post.
