ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the includ­

ed tools^nd your own adjustable wrench

> Phillips screwdriver (^^ j—=», and

pliers

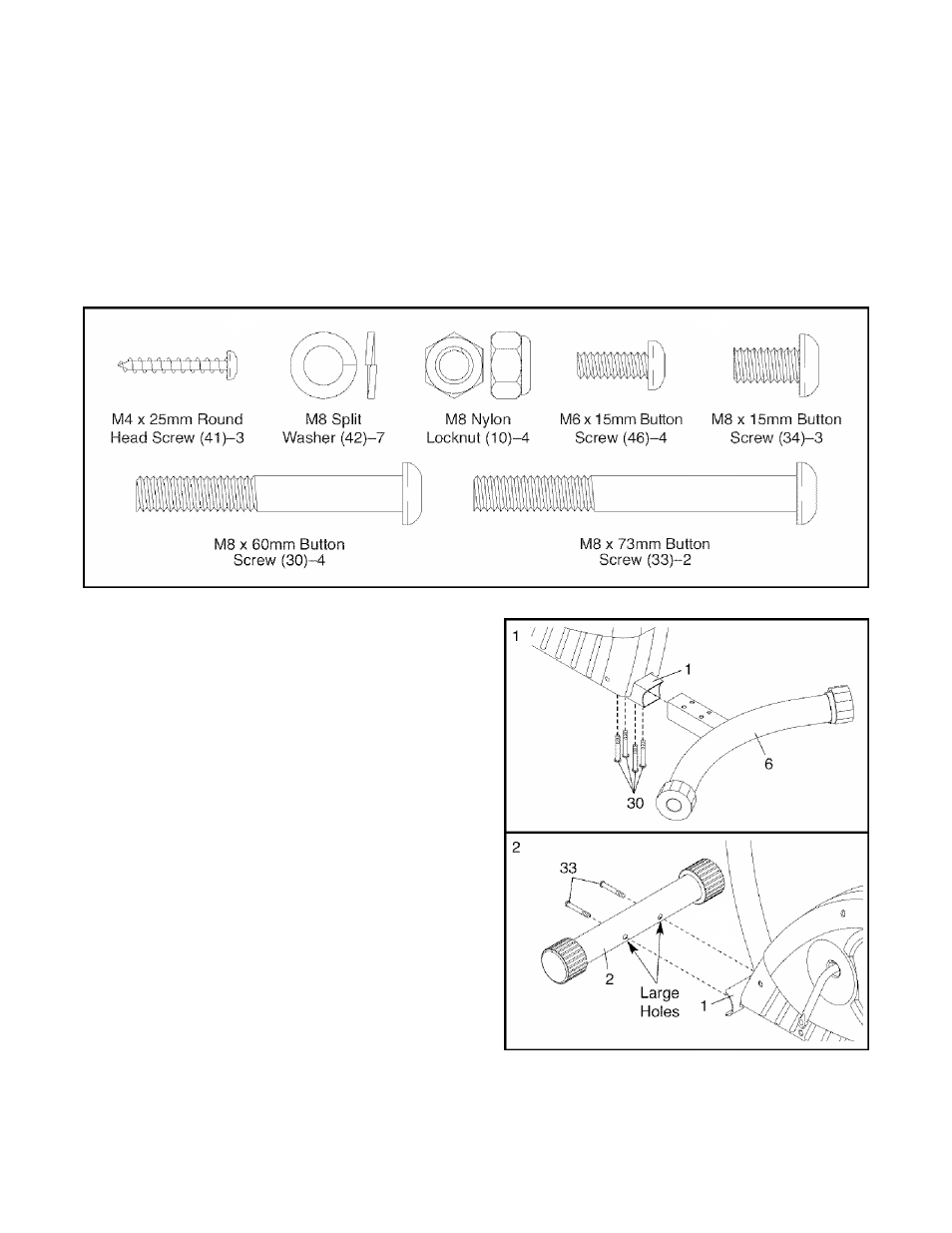

Use the drawings below to identify the small parts used for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST on page 14. The number following the key number is
the quantity needed for assembly.

Note: Some small parts may have been preassembled. If a part is not in

the parts bag, check to see if it has been preassembled.

1. Insert the Rear Stabilizer (6) into the Frame (1).

Attach the Rear Stabilizer with four M8 x 60mm

Button Screws (30).

2. Orient the Front Stabilizer (2) with the large holes

facing the Frame (1). Attach the Front Stabilizer to
the Frame with two M8 x 73mm Button Screws (33).
