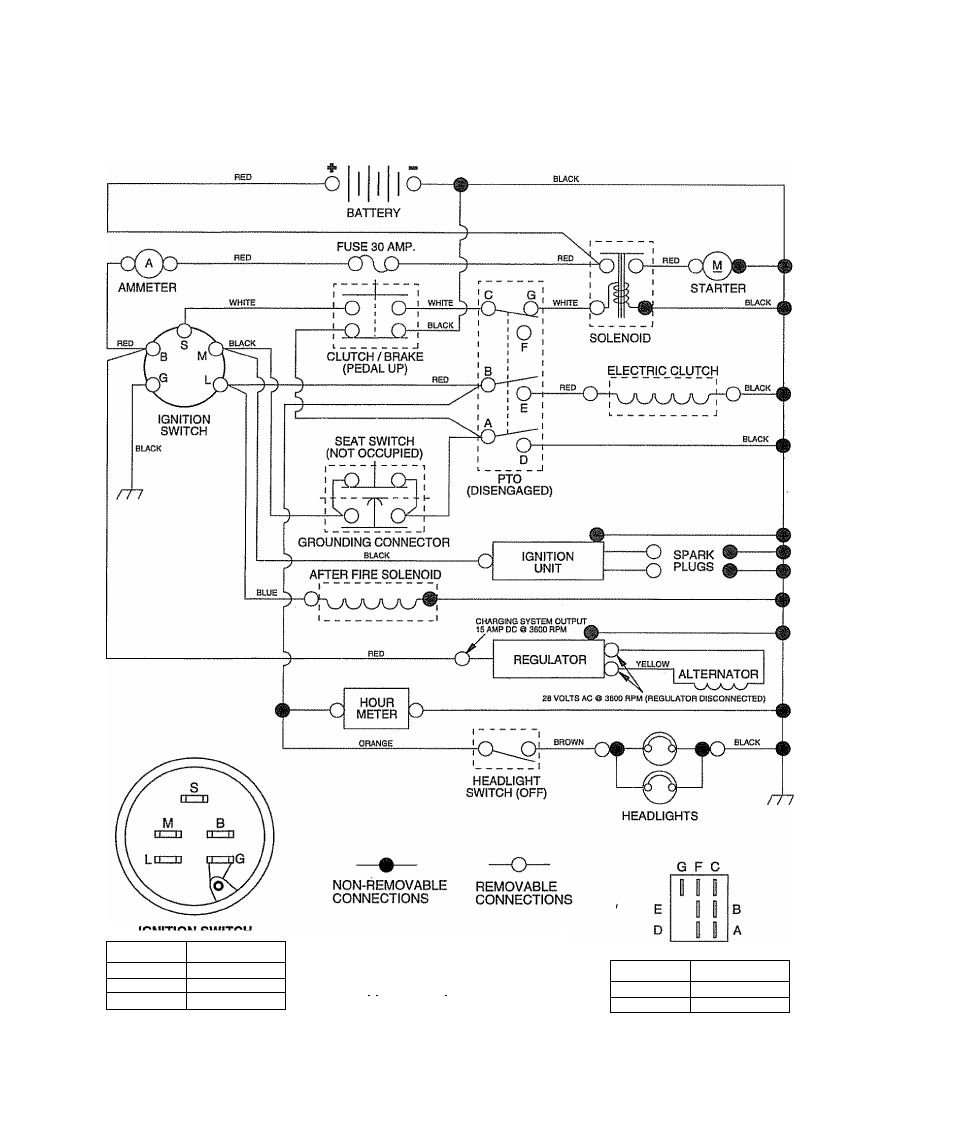

SCHEMATtC
TRACTOR - - MODEL NUMBER 917.251560
POSITION
CIRCUIT
OFF
M + G
ON
B + L
START
B + S + L
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CUPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
RHni II n RF RFPI ACFn TO
I IV,,,/\i.rliii,liii/
I
I I
PROPERLY SECURE YOUR WIRING
PTO SWITCH
POSITION
CIRCUIT
OFF
C + Q
ON
C + F.B + E, A + D
