assembly
VI6 X 3/i6 KEY

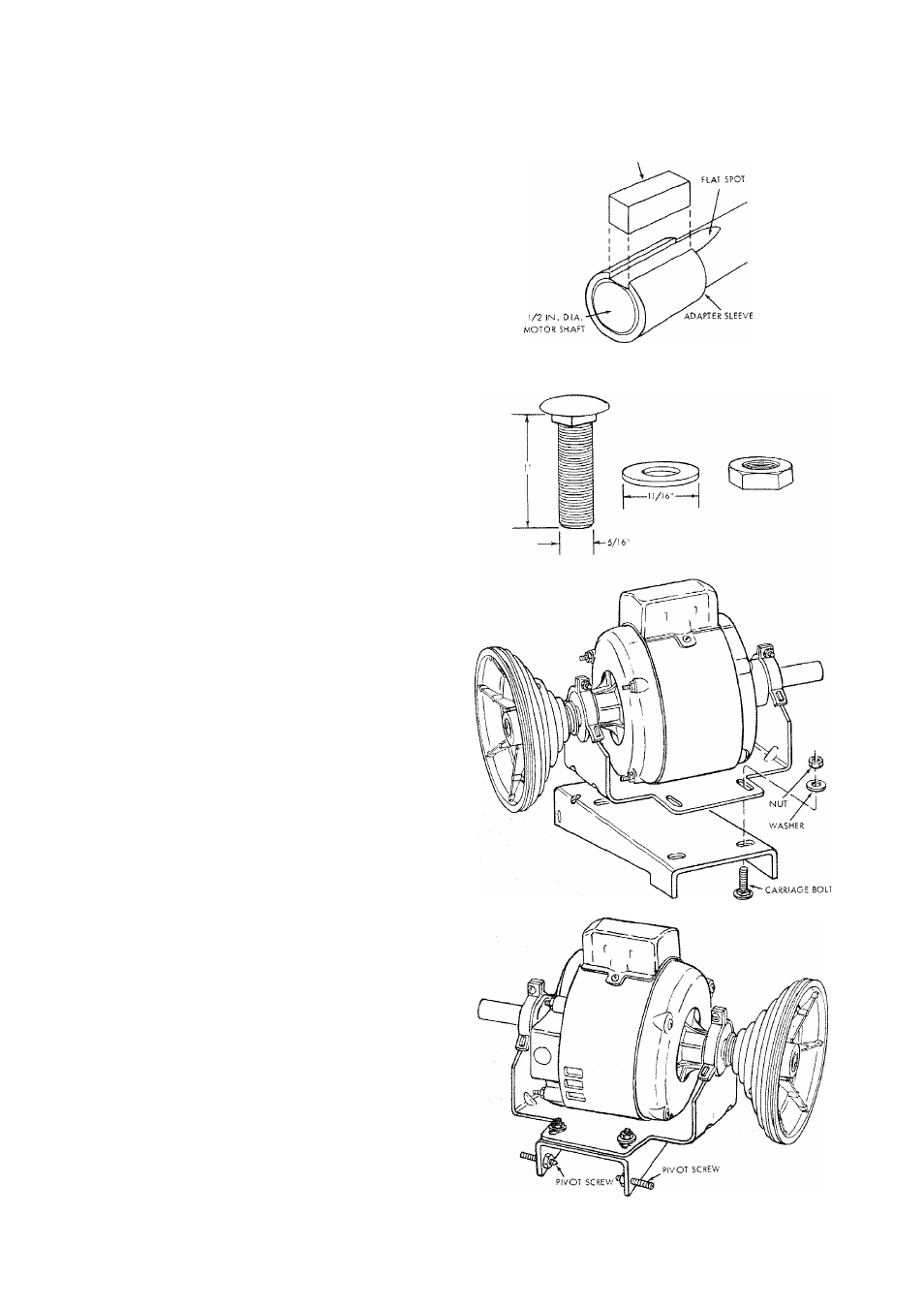

NOTE:
When
using
motors
which
have
'k"
dia.
shafts,
place
the
adapter
sleeve
(furnished
with
the
motor)
on
the
shaft
so
that
the
slot
in
the
sleeve
is
over
the
flat
spot.
4.
insert
the
shaft
key
(furnished
with
motor)
into
the
grooves
in
the
shaft
and
pulley
so
that
the
end
of
the
key is even with the end of the shaft.
5.
Tighten
the
set
screw.
Use
a
pair
of
pliers
on
the
short
end of the set screw wrench for increased leverage.
MOUNTING THE MOTOR
1.
Position the motor mount as shown and place the
motor on top of it.
2.
Find four 5/16 in.—18 x 1 in. CARRIAGE BOLTS, flat
washers and hex. nuts, among the loose parts.
3.
Insert the bolts as shown .. . install washers
on nuts but DON'T TIGHTEN them.
screw
4.
Using a 5/32 inch set screw wrench unscrew the PIVOT
screws as shown.
10
