ASSEMBLY
Before beginning assembly, carefully read the
following Information and instructions;
• Piace all parts in a cleared area and remove the
packing materials; do not dispose of the packing
materials until assembly is completed.
• Read each assembly step before you begin.
• Be sure that all parts are oriented as shown in
the drawings.
• Tighten all parts as you assemble them, unless
instructed to do otherwise. .
THE FOLLOWING TOOLS ARE REQUIRED FOR
ASSEMBLY:
• The included pedal tool Qt
• Your own Phillips screwdriver ——
• Your own rubber mallet |—
A small amount of lubricant, such as grease
or petroleum Jelly.

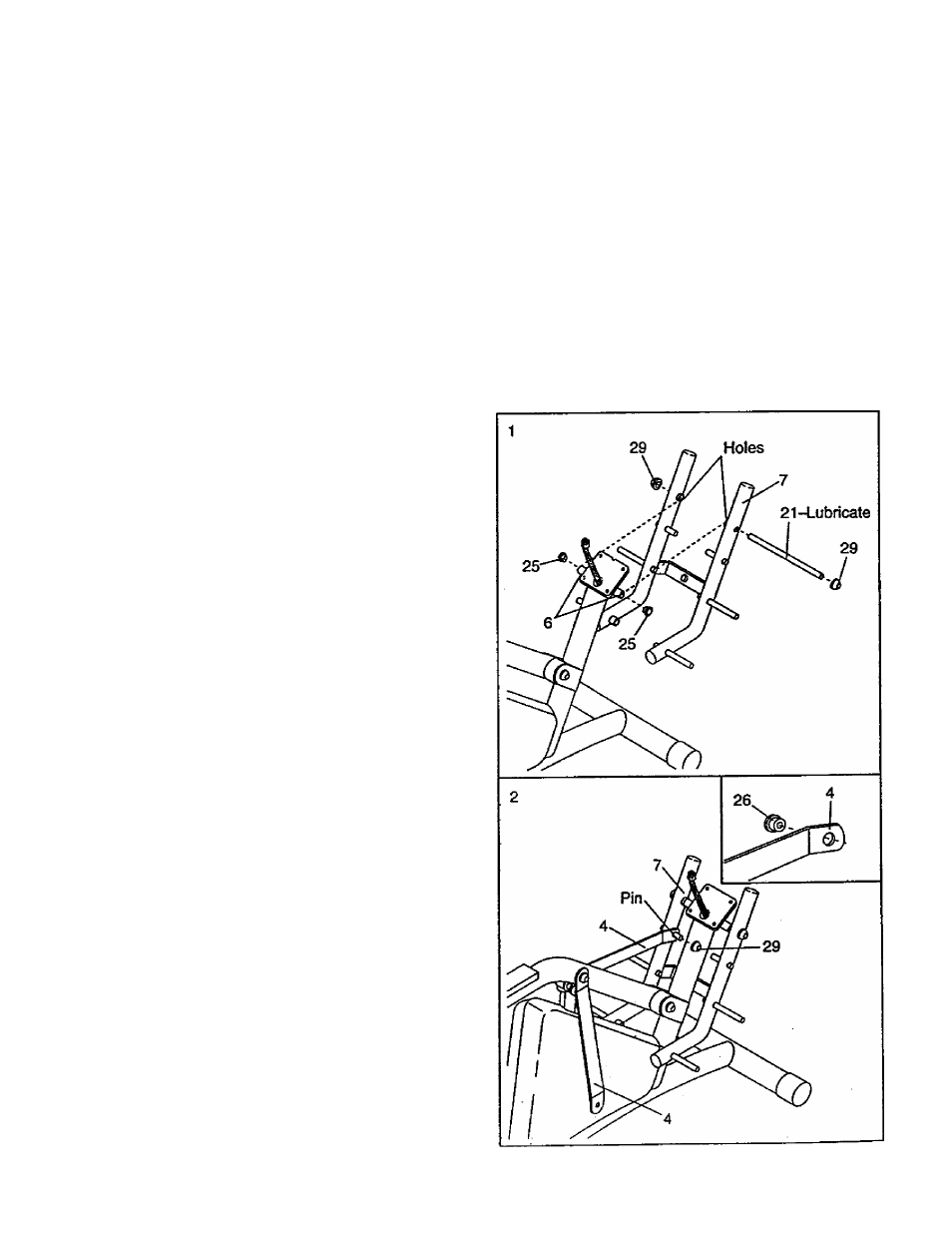

1. Note: Before you attach the 1/2” Dome Caps
(29) in assembly steps 1 and 2, be sure that all
parts are In the correct positions. The Dome
Caps can be used only once; if a part is incor*
rectly assembled, it will be necessary to
remove the Dome Caps and order new ones.
Be sure that there is a 1/2" Pivot Bushing (25) in
eadi side of the Frame (6).
Lubricate the Pedal Frame Axle (21). Align the
indicated holes in the Pedal Frame (7) with the
M2" Pivot Bushings (25) in the Frame (6). Insert
the Pedal Frame Axle through the Pedal Frame
and the Frame, Center the Pedal Frame Axle and
tap a 1/2" Dome Cap (29) onto each end of it.
2. See tile inset drawring. Make sure that there is a
1/2" Link Arm Bushing (26) in the left Link Arm
(4).
Slide the end of the left Link Arm(4) onto the indi­
cated pin on the Pedal Frame (7). Pivot the Pedal
Frame and tap a
MT Dome Cap (29) onto the
pin.
Attach the right Link Arm (4) to the Pedal Frame
(7) in the same manner.
